Caution
The control unit should be installed in a frost free,
dry, weather protected area. During storage and in-
stallation of the system, the pump and sensors
should not come in contact with water. In the case
that the area is in a location at risk of flooding, the
control unit should be installed in a secure place to
assure no flood water reaches it. Before installing
the KESSEL Aqualift F Compact lifting station be
sure that no damage occurred during shipping.
The system should be installed on smooth com-

2.1 Installation in a concrete slab/floor

pact secure base. Insert the included lip seal in
the recessed area of the open upper neck of the
tank and then lubricate / grease only the inner
portion of the seal. Insert the upper section into
the greased gasket. By using the vertically adjus-
table upper section, the final installation height of
the upper section / cover can easily be reached.
The cover / upper section can also be tilted up to
5 degrees to match any floor slopes. The cover
can also be twisted to help match any tiling pat-
terns on the floor if applicable (see illustration 2).
It is possible that a opening needs to be made
where the conduit pipe enters the chamber (Ill. 3).
Before pouring the concrete floor slab:
- Make sure that the gasket between the body and
the upper section is properly fixed
- Make sure all pipes are properly connected
- Assure that the upper section / cover are in the
desired location / height
2. Installation
2.2 Deeper installation in the floor
(concrete slab)
mind. 40mm
(with extension section Article Number 83071)
Depending on the installation depth of the
system, one or two extensions can be used bet-
ween the pump body and the upper section /
cover. The included extension sections gaskets
should be properly lubricated only on the interior
of the gasket. In order to assure proper access
to the system, it is recommended that the dis-
tance between the finished floor and the base of
the Aqualift F does not exceed 80 cm. In the case
that a deeper installation is required, KESSEL re-
commends installing the system in a KESSEL
chamber.
When an extension section (art. no. 83070) is
used, care must be taken that the cable con-
duit is routed above the concrete slab.
We recommend a maximum installation
depth of 650 mm for the shoring in the floor
slab up to the upper edge of the functional
area. Technic plate (e.g., pump). This ensu-
res that in the event of maintenance and ser-
vice, the necessary parts can be easily
reached and disassembled (Fig. 4).

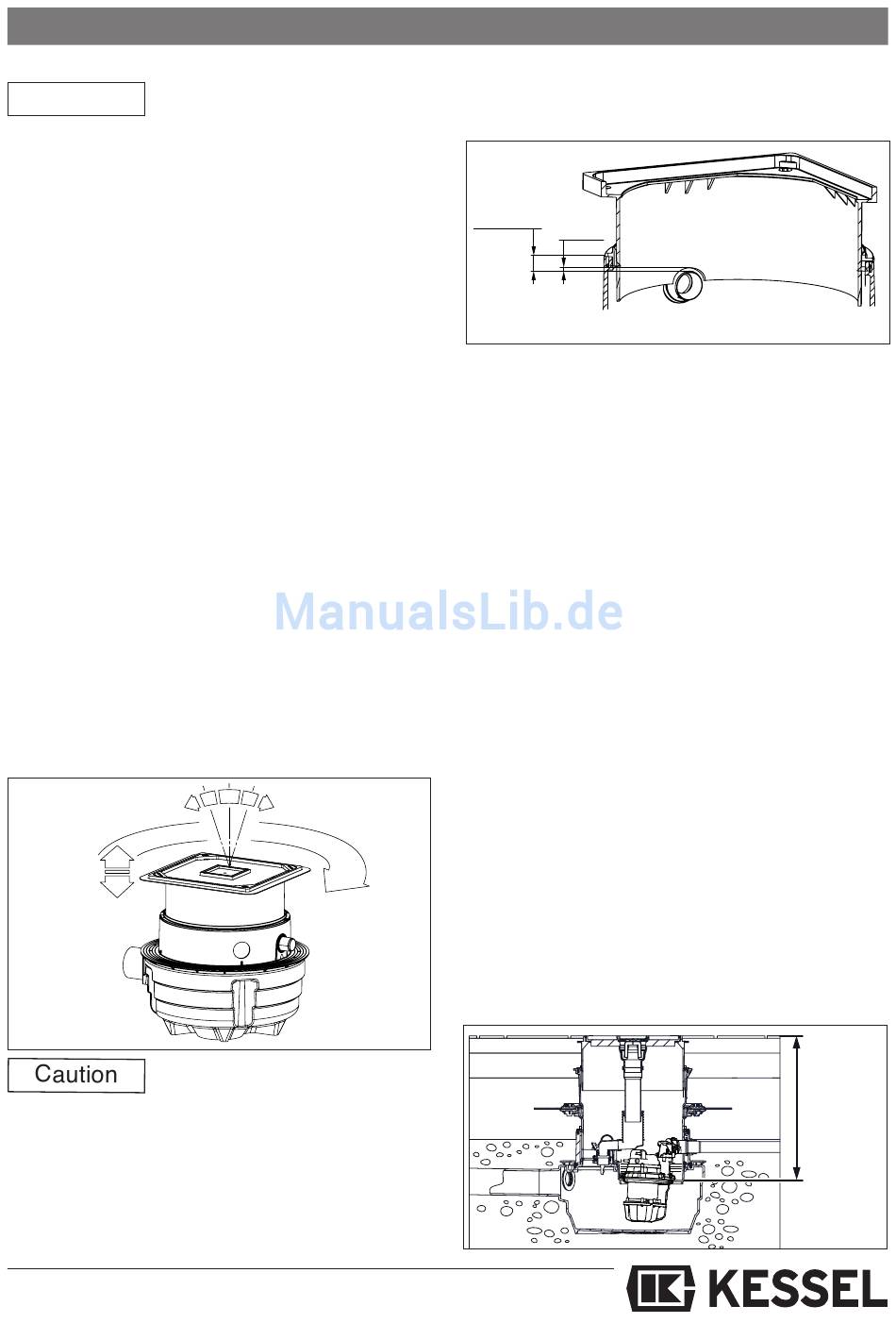

ill 2
25
5-10mm
ill 3
max.65cm
ill.4
