2.5 Installation in high groundwater areas
(Sealing set Article Number 83023)
If the Aqualift F extends below the basement slab
into the ground, it is equipped with a perimeter
flange which can be connected to a waterproof
membrane (ill. 10). As seen in Illustration 9, the wa-
terproof membrane is cut properly and placed over
the base of the sealing flange. The top flange portion
is then placed over the flange base and secured
tight with the provided screws.

2.5.1 Installation in a membrane seals

basement slab
The waterproofing membrance can be connected
directly between the two flanges on the system.

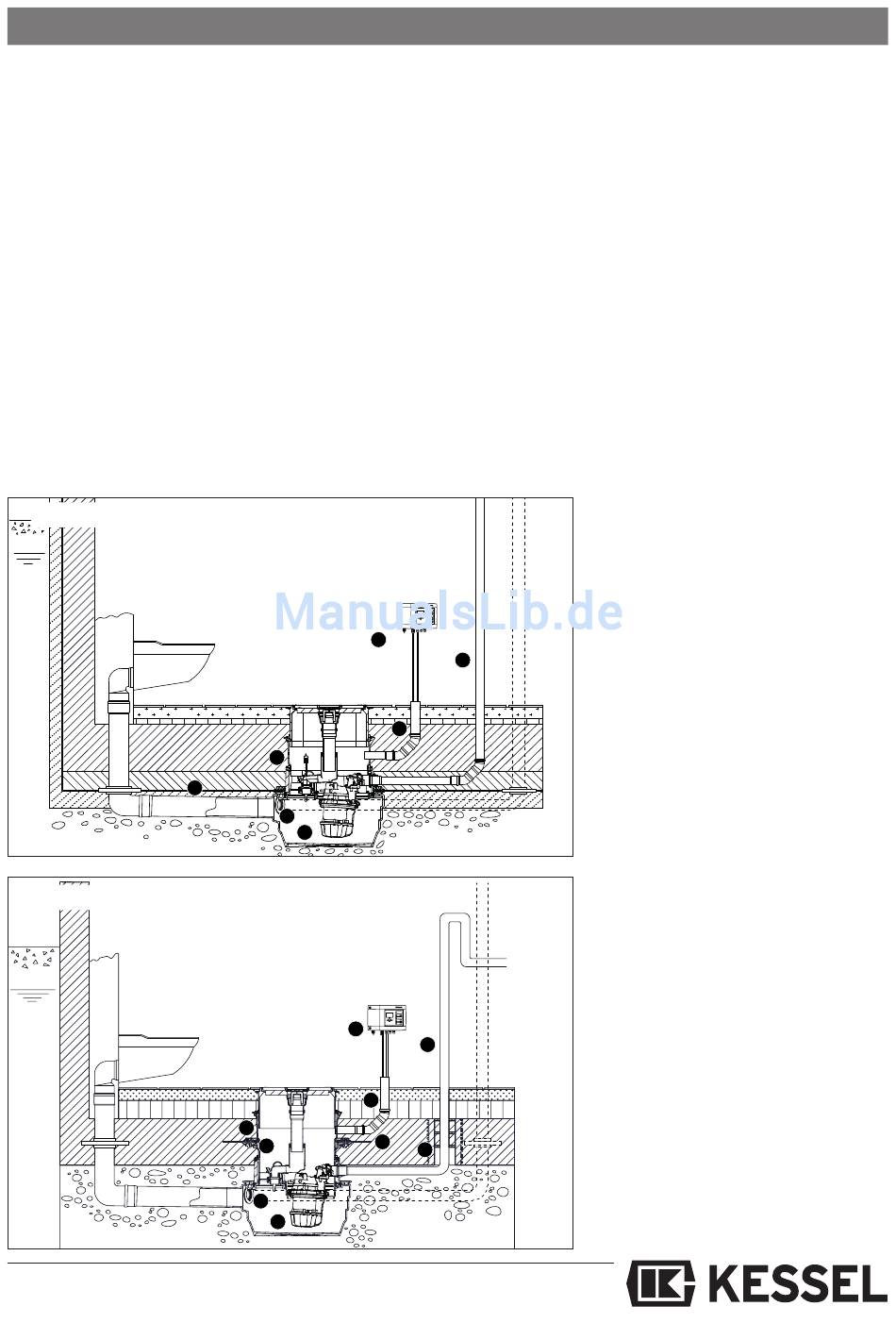

Installation with membrane sealed slab
Installation in waterproof concrete slab
2. Installation
4
7
6
1
10
4
3
6
1
2.5.2 Installation in a waterproof concrete
basement slab
For this application the elastomer sealing mem-
brane (optionally available as spare part) should be
installed between the flange and the counter flange
and secured with the included screws. Before instal-
ling the membrane the pressure pipe connection
must be removed and then reconnected after mem-
brane installation is complete. Screws should be
tightened to a torque of 10 Nm. Any piping (such as
inlet piping or cable conduit piping) which penetrates
the waterproof concrete should be installed in a
completely watertight method.
10
5
9
5
9
2
8
29
Illustrations
➀ KESSEL-Aqualift F
Compact Wastewater
Lifting Station
➁ Sealing set
Art. # 83023
➂ Extension section
Art. # 83071
➃ Extension section
Art. # 83070
➄ Pressure outlet
➅ Ventilation connection
➆ Sealing membrane
(not included - sources
onsite)
➇ Watertight pipe
passage through
waterproof concrete
➈ Cable conduit
➉ Switch gear
ill 10
