2.6 Installation with extension sections
The flange height is adjustable when using the ex-
tension section Article Number 83071. The upper
section is also vertically adjustable to the desired
height. Please note the minimum amount that the
upper section should be inserted into the body (see
Illustration 3). The maximum installation depth is
also to be noted as described in Section 2.2.

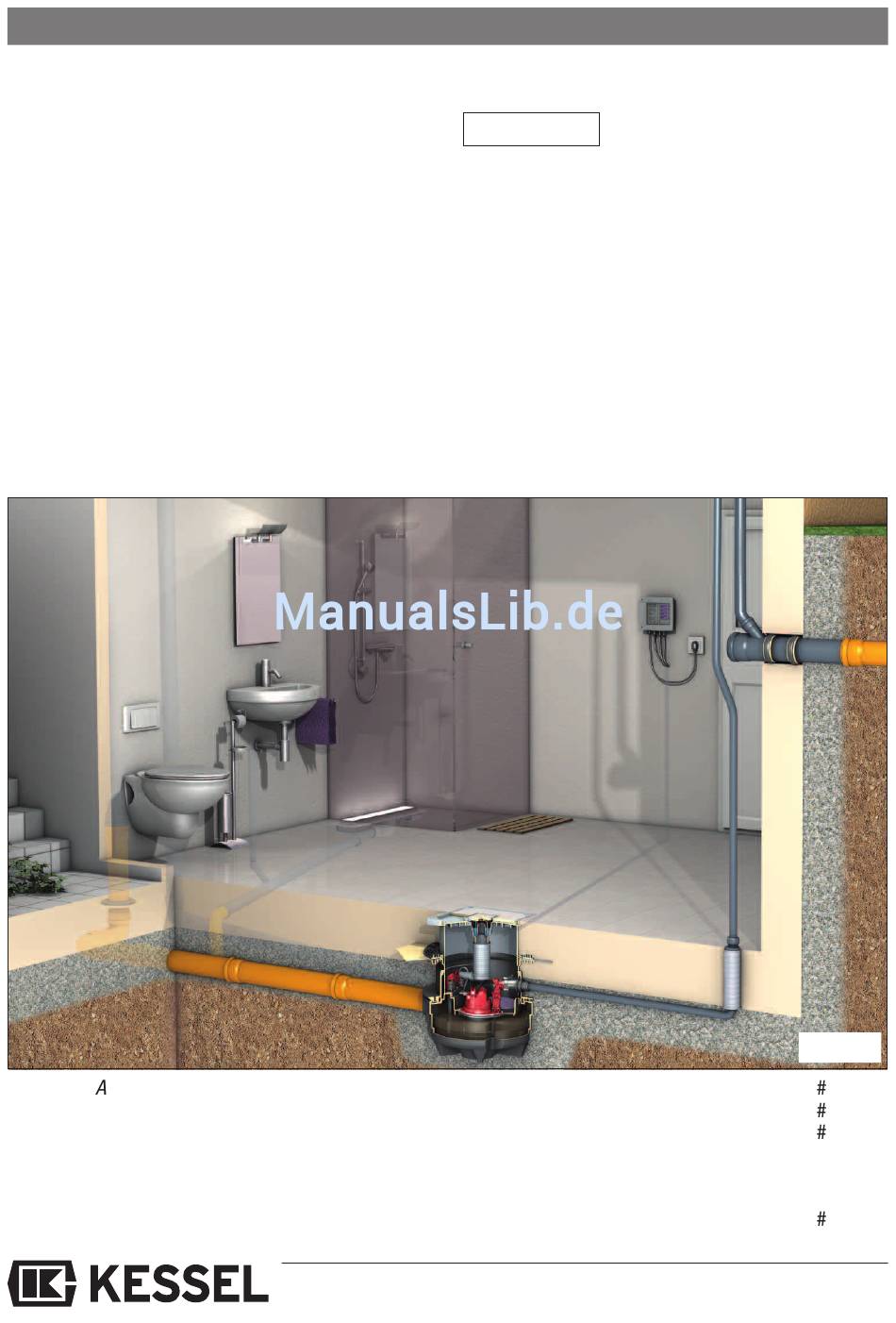

2.7 Installation example

➍
➀ KESSEL qualift F Compact Wastewater Lifting Station
➁ Waterproofing set for waterproof concrete slabs
➂ Outlet pressure pipe set with flexible pressure hose
➃ Ventilation to roof
➄ Outlet pressure pipe should be increase to at least size DN 70 immediately
after the outlet pipe's loop above the backwater level
➅ Extension section with flange
2. Installation / 3. Commissioning
➋
3. Commissioning
Caution
Commissioning of the system should only by
handled by a qualified professional.
Before commissioning the system:
- Rinse and clean all inlet pipes
- Rinse and clean the Aqualift F storage tank
- Check all connections for leaks
- Check all instructions / requirements in the
control unit's user's manual
- Fill the Aqualift F tank with water and check for
proper operation of the pressure switch
- Follow Point 4 of this manual.
➏
➊
30
➎
➌
ill 11
Art. 28701
Art. 83023
Art. 28040
Art. 83071
