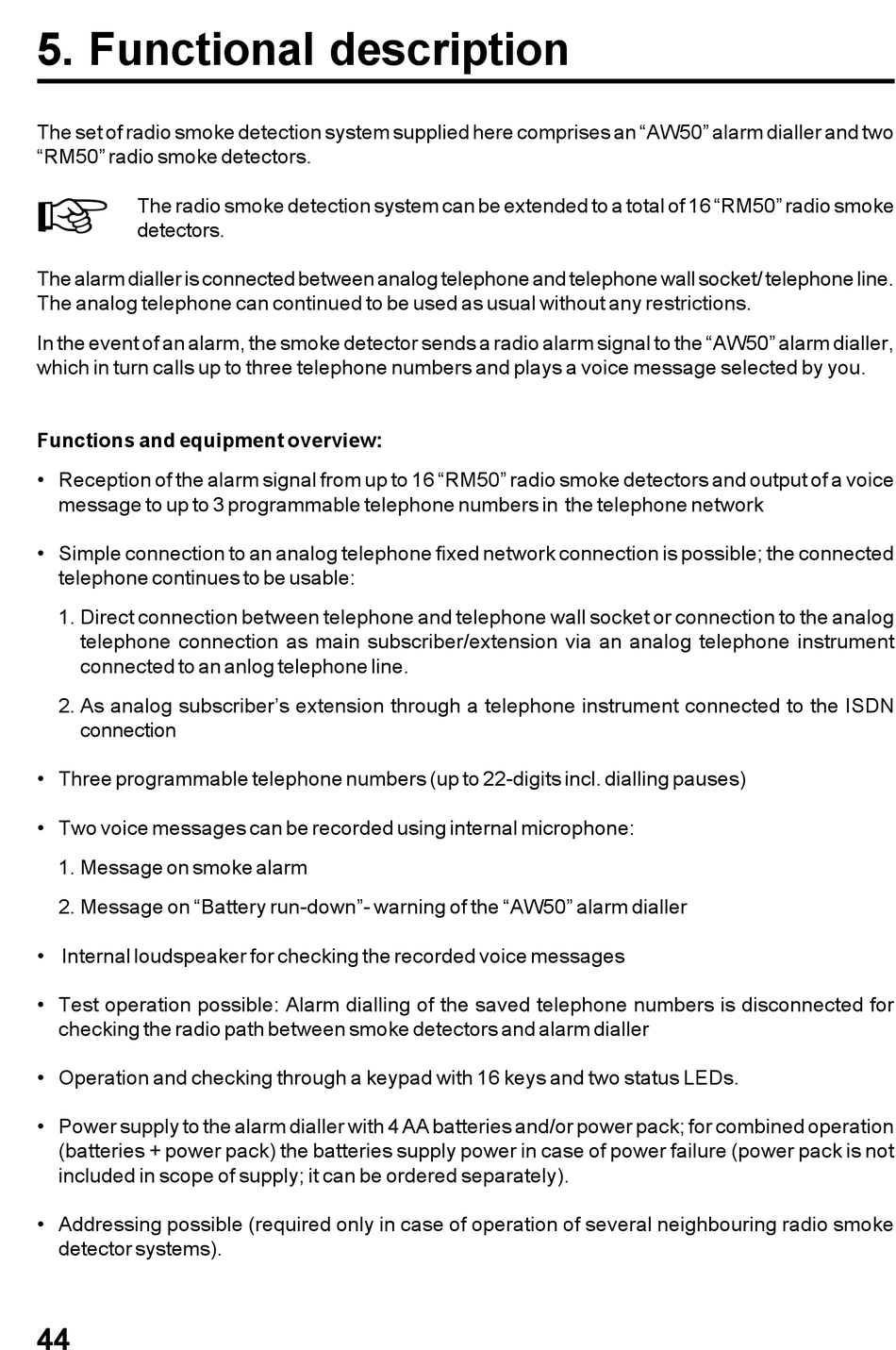

5. Functional description

The set of radio smoke detection system supplied here comprises an "AW50" alarm dialler and two
"RM50" radio smoke detectors.

The radio smoke detection system can be extended to a total of 16 "RM50" radio smoke
detectors.
The alarm dialler is connected between analog telephone and telephone wall socket/ telephone line.
The analog telephone can continued to be used as usual without any restrictions.
In the event of an alarm, the smoke detector sends a radio alarm signal to the "AW50" alarm dialler,
which in turn calls up to three telephone numbers and plays a voice message selected by you.
Functions and equipment overview:
• Reception of the alarm signal from up to 16 "RM50" radio smoke detectors and output of a voice
message to up to 3 programmable telephone numbers in the telephone network
• Simple connection to an analog telephone fixed network connection is possible; the connected
telephone continues to be usable:
1. Direct connection between telephone and telephone wall socket or connection to the analog
telephone connection as main subscriber/extension via an analog telephone instrument
connected to an anlog telephone line.
2. As analog subscriber's extension through a telephone instrument connected to the ISDN
connection
• Three programmable telephone numbers (up to 22-digits incl. dialling pauses)
• Two voice messages can be recorded using internal microphone:
1. Message on smoke alarm
2. Message on "Battery run-down"- warning of the "AW50" alarm dialler
• Internal loudspeaker for checking the recorded voice messages
• Test operation possible: Alarm dialling of the saved telephone numbers is disconnected for
checking the radio path between smoke detectors and alarm dialler
• Operation and checking through a keypad with 16 keys and two status LEDs.
• Power supply to the alarm dialler with 4 AA batteries and/or power pack; for combined operation
(batteries + power pack) the batteries supply power in case of power failure (power pack is not
included in scope of supply; it can be ordered separately).
• Addressing possible (required only in case of operation of several neighbouring radio smoke
detector systems).
