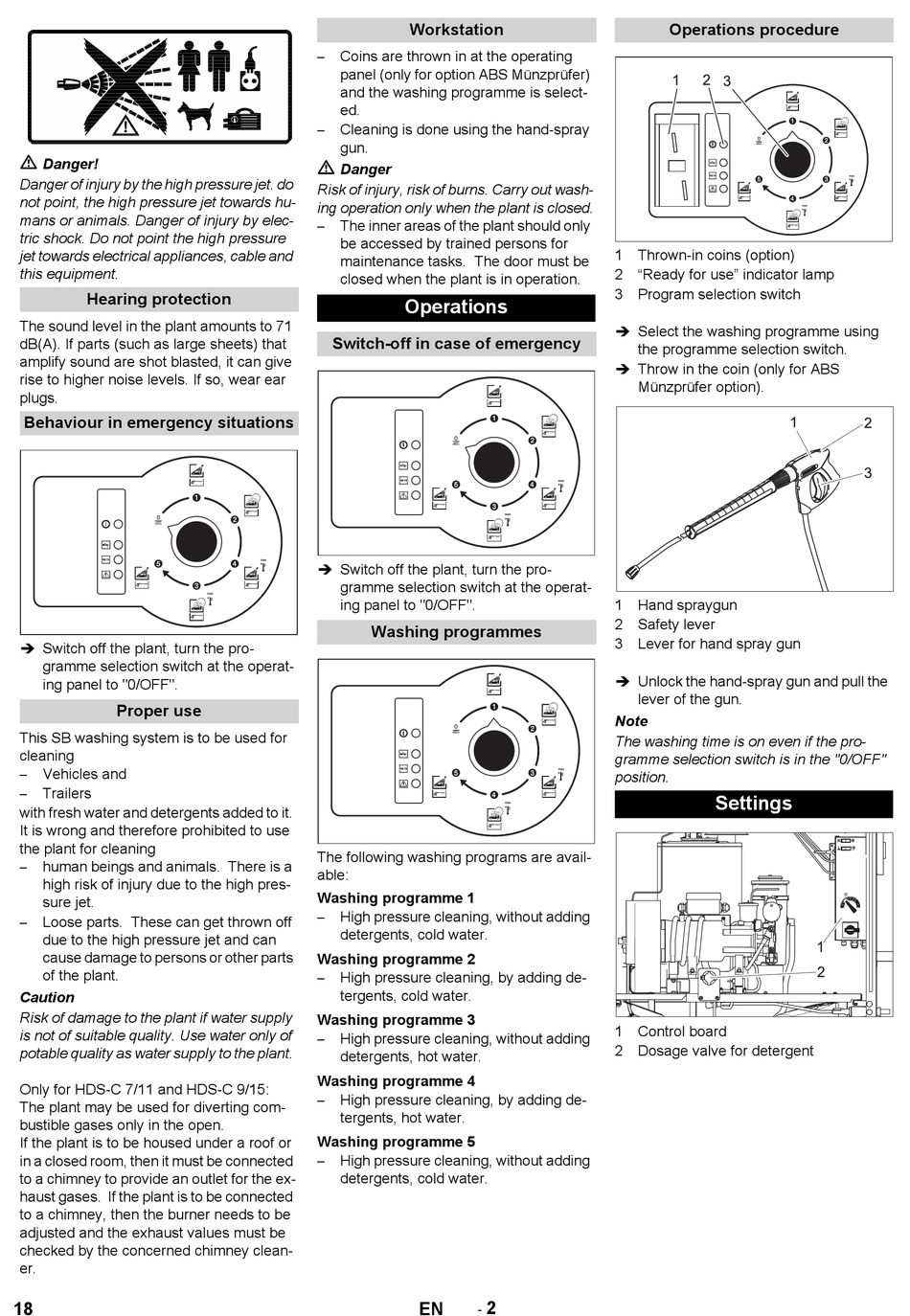

Danger!
Danger of injury by the high pressure jet. do
not point, the high pressure jet towards hu-
mans or animals. Danger of injury by elec-
tric shock. Do not point the high pressure
jet towards electrical appliances, cable and
this equipment.
Hearing protection
The sound level in the plant amounts to 71
dB(A). If parts (such as large sheets) that
amplify sound are shot blasted, it can give
rise to higher noise levels. If so, wear ear
plugs.
Behaviour in emergency situations
 Switch off the plant, turn the pro-
gramme selection switch at the operat-
ing panel to "0/OFF".
Proper use
This SB washing system is to be used for
cleaning
Vehicles and
–
Trailers
–
with fresh water and detergents added to it.
It is wrong and therefore prohibited to use
the plant for cleaning
human beings and animals. There is a
–
high risk of injury due to the high pres-
sure jet.
Loose parts. These can get thrown off
–
due to the high pressure jet and can
cause damage to persons or other parts
of the plant.
Caution
Risk of damage to the plant if water supply
is not of suitable quality. Use water only of
potable quality as water supply to the plant.
Only for HDS-C 7/11 and HDS-C 9/15:
The plant may be used for diverting com-
bustible gases only in the open.
If the plant is to be housed under a roof or
in a closed room, then it must be connected
to a chimney to provide an outlet for the ex-
haust gases. If the plant is to be connected
to a chimney, then the burner needs to be
adjusted and the exhaust values must be
checked by the concerned chimney clean-
er.
18
Workstation
Coins are thrown in at the operating
–
panel (only for option ABS Münzprüfer)
and the washing programme is select-
ed.
Cleaning is done using the hand-spray
–
gun.
Danger
Risk of injury, risk of burns. Carry out wash-
ing operation only when the plant is closed.
The inner areas of the plant should only
–
be accessed by trained persons for
maintenance tasks. The door must be
closed when the plant is in operation.

Operations

Switch-off in case of emergency
 Switch off the plant, turn the pro-
gramme selection switch at the operat-
ing panel to "0/OFF".
Washing programmes
The following washing programs are avail-
able:
Washing programme 1
High pressure cleaning, without adding
–
detergents, cold water.
Washing programme 2
High pressure cleaning, by adding de-
–
tergents, cold water.
Washing programme 3
High pressure cleaning, without adding
–
detergents, hot water.
Washing programme 4
High pressure cleaning, by adding de-
–
tergents, hot water.
Washing programme 5
High pressure cleaning, without adding
–
detergents, cold water.
2
-
EN
Operations procedure
1 Thrown-in coins (option)
2 "Ready for use" indicator lamp
3 Program selection switch
 Select the washing programme using
the programme selection switch.
 Throw in the coin (only for ABS
Münzprüfer option).
1 Hand spraygun
2 Safety lever
3 Lever for hand spray gun
 Unlock the hand-spray gun and pull the
lever of the gun.
Note
The washing time is on even if the pro-
gramme selection switch is in the "0/OFF"
position.

Settings

1 Control board
2 Dosage valve for detergent
