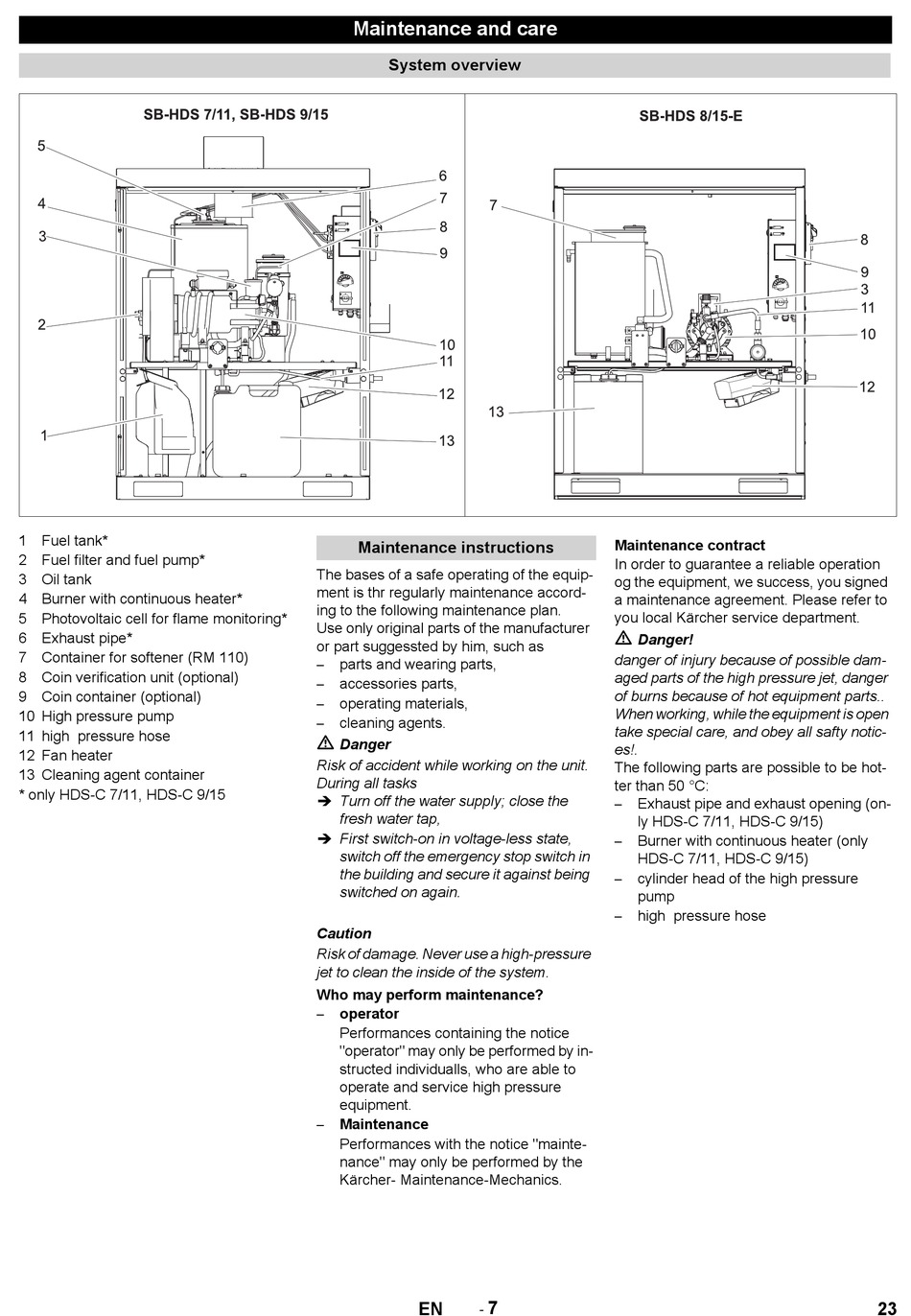

1 Fuel tank*
2 Fuel filter and fuel pump*
3 Oil tank
4 Burner with continuous heater*
5 Photovoltaic cell for flame monitoring*
6 Exhaust pipe*
7 Container for softener (RM 110)
8 Coin verification unit (optional)
9 Coin container (optional)
10 High pressure pump
11 high pressure hose
12 Fan heater
13 Cleaning agent container
* only HDS-C 7/11, HDS-C 9/15

Maintenance and care

System overview

Maintenance instructions

The bases of a safe operating of the equip-
ment is thr regularly maintenance accord-
ing to the following maintenance plan.
Use only original parts of the manufacturer
or part suggessted by him, such as
parts and wearing parts,
–
accessories parts,
–
operating materials,
–
cleaning agents.
–
Danger
Risk of accident while working on the unit.
During all tasks
 Turn off the water supply; close the
fresh water tap,
 First switch-on in voltage-less state,
switch off the emergency stop switch in
the building and secure it against being
switched on again.
Caution
Risk of damage. Never use a high-pressure
jet to clean the inside of the system.
Who may perform maintenance?
operator
–
Performances containing the notice
"operator" may only be performed by in-
structed individualls, who are able to
operate and service high pressure
equipment.
Maintenance
–
Performances with the notice "mainte-
nance" may only be performed by the
Kärcher- Maintenance-Mechanics.
7
-
EN
Maintenance contract
In order to guarantee a reliable operation
og the equipment, we success, you signed
a maintenance agreement. Please refer to
you local Kärcher service department.
Danger!
danger of injury because of possible dam-
aged parts of the high pressure jet, danger
of burns because of hot equipment parts..
When working, while the equipment is open
take special care, and obey all safty notic-
es!.
The following parts are possible to be hot-
ter than 50 °C:
Exhaust pipe and exhaust opening (on-
–
ly HDS-C 7/11, HDS-C 9/15)
Burner with continuous heater (only
–
HDS-C 7/11, HDS-C 9/15)
cylinder head of the high pressure
–
pump
high pressure hose
–
