4.2) REMOVAL OF CARBURETOR, CARBURETOR FLANGE AND REED VALVE ASSY.

4.2.1) Dismantle carburetor

 Disconnect the fuel inlet line.
 Note:
ENVIRONMENT NOTE:
All operating fluids and cleaning agents can damage the environment if not disposed
of properly.
Dispose of operating fluids in an eco-friendly manner!
 Loosen clamp on carburetor flange.
Seite/page 36/59
Umbauanleitung/retrofit instruction 125 MAX Series
Drain excess fuel!

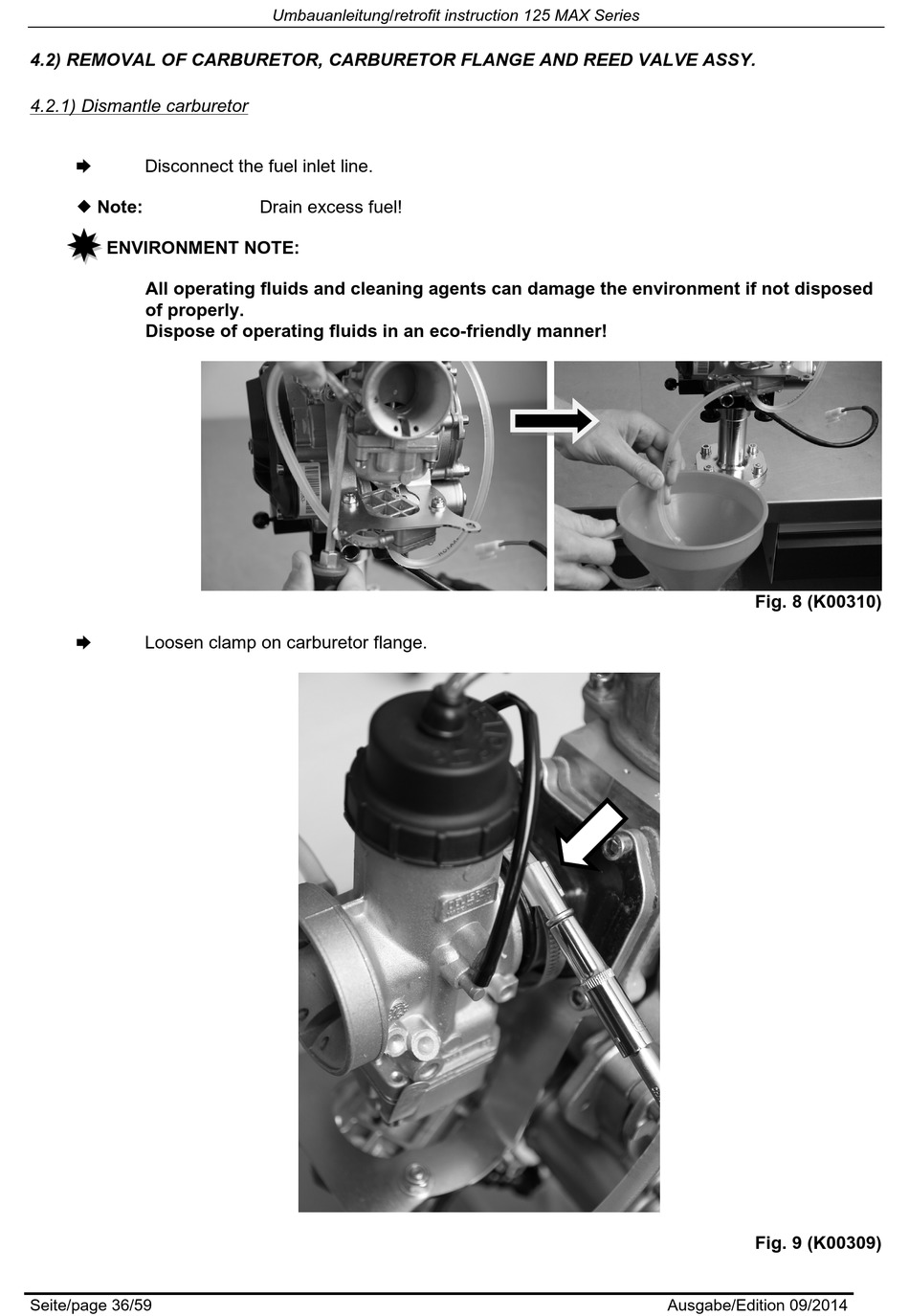

Fig. 8 (K00310)
