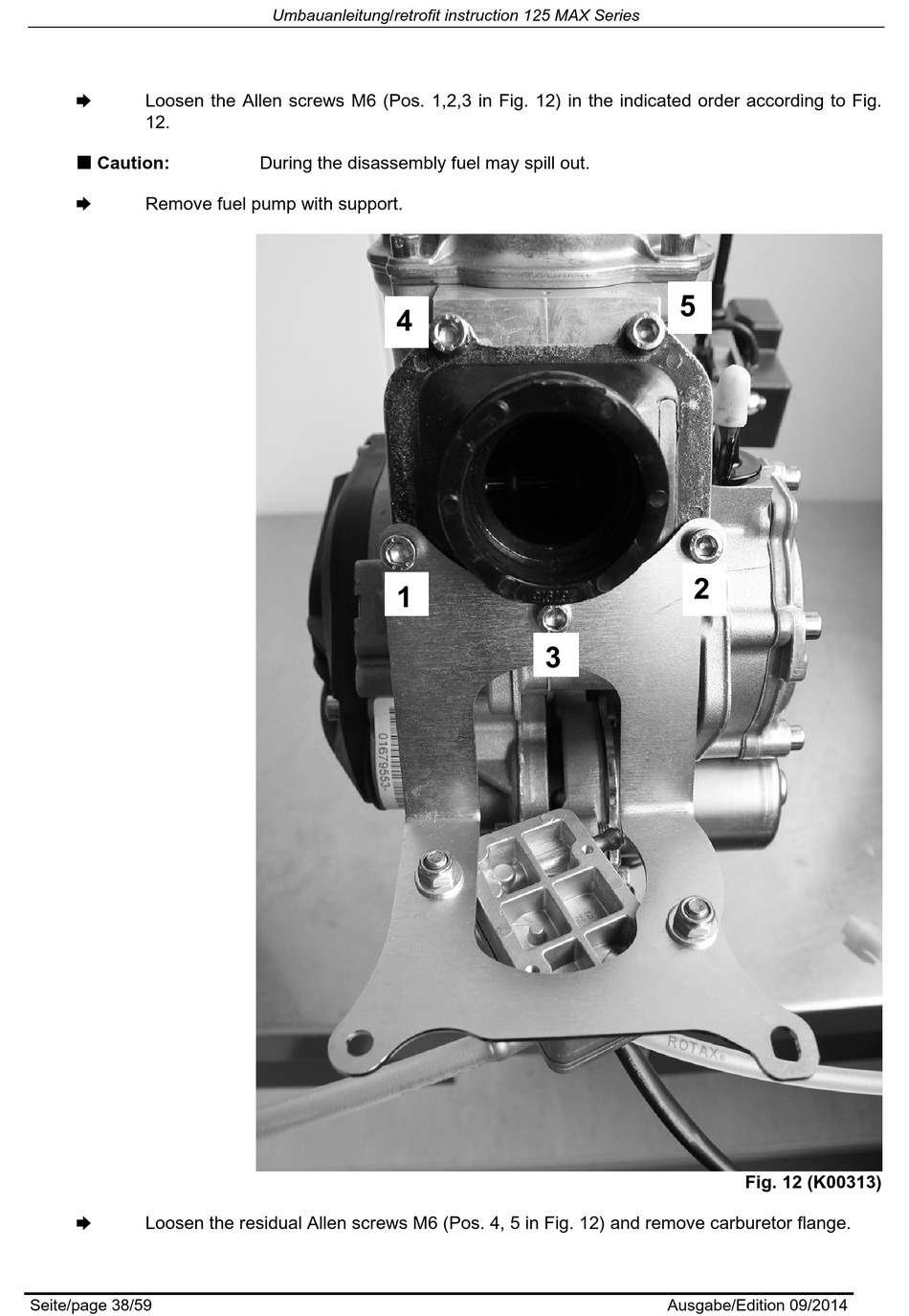

 Loosen the Allen screws M6 (Pos. 1,2,3 in Fig. 12) in the indicated order according to Fig.
12.
 Caution:
 Remove fuel pump with support.
 Loosen the residual Allen screws M6 (Pos. 4, 5 in Fig. 12) and remove carburetor flange.
Seite/page 38/59
Umbauanleitung/retrofit instruction 125 MAX Series
During the disassembly fuel may spill out.
4
1
5
2
3
Ausgabe/Edition 09/2014
Fig. 12 (K00313)
