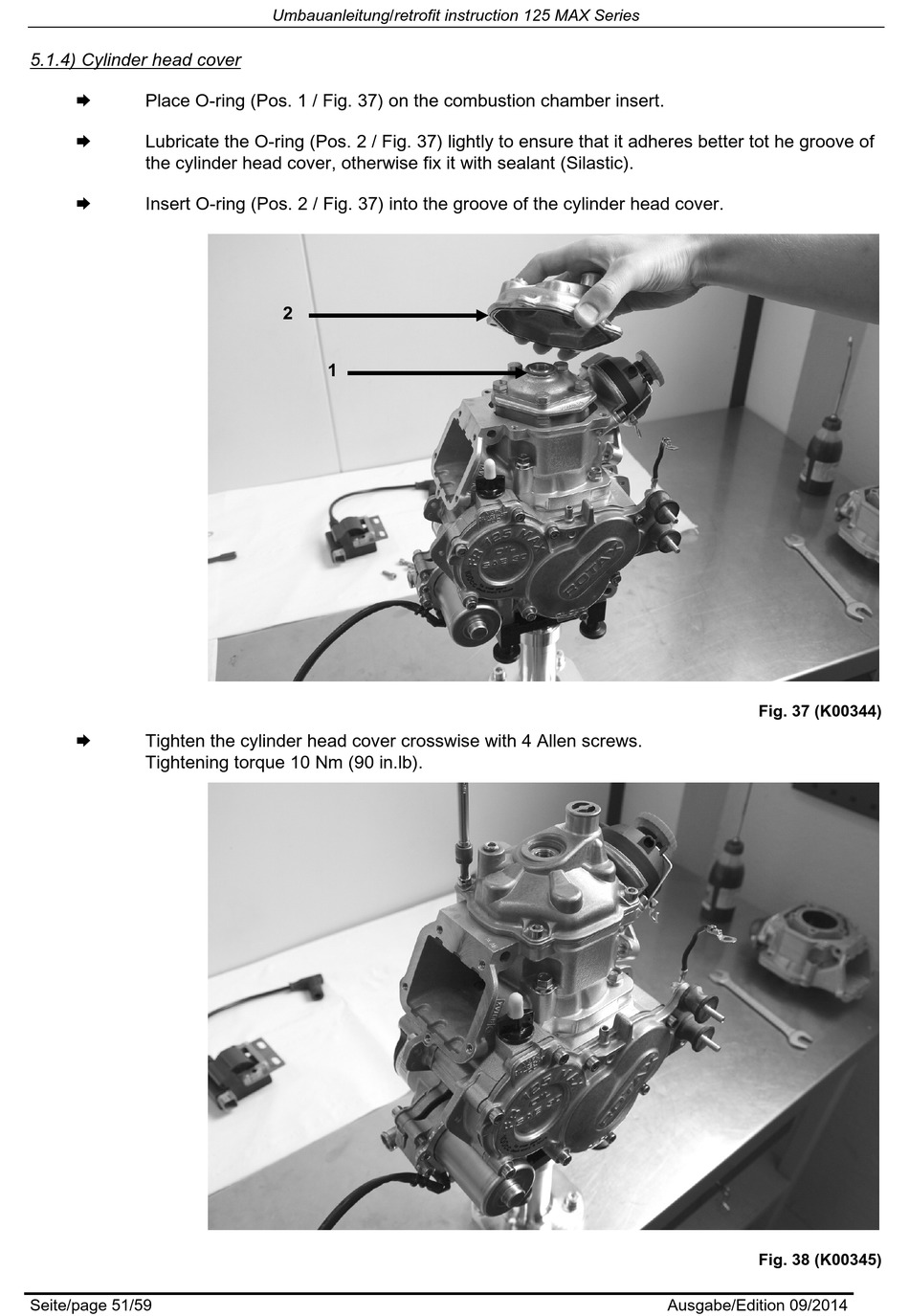

5.1.4) Cylinder head cover

Place O-ring (Pos. 1 / Fig. 37) on the combustion chamber insert.
Lubricate the O-ring (Pos. 2 / Fig. 37) lightly to ensure that it adheres better tot he groove of
the cylinder head cover, otherwise fix it with sealant (Silastic).
Insert O-ring (Pos. 2 / Fig. 37) into the groove of the cylinder head cover.
Tighten the cylinder head cover crosswise with 4 Allen screws.
Tightening torque 10 Nm (90 in.lb).
Seite/page 51/59
Umbauanleitung/retrofit instruction 125 MAX Series
2
1
Fig. 37 (K00344)
Fig. 38 (K00345)
Ausgabe/Edition 09/2014
