5.1.3) Combustion chamber insert

 Note:
 Place O-ring (Fig. 35) into the groove of the cylinder.

Tighten combustion chamber insert crosswise with 5 hex. screws and lock washers to 5 Nm
(44 in.lb) initially, ensuring that the O-ring is not crushed.
Tighten to tightening torque 30 Nm (22 ft.lb).
Seite/page 50/59
Umbauanleitung/retrofit instruction 125 MAX Series
Note the installation position of the combustion chamber insert – "Made in
Austria" stays on the exhaust port side.

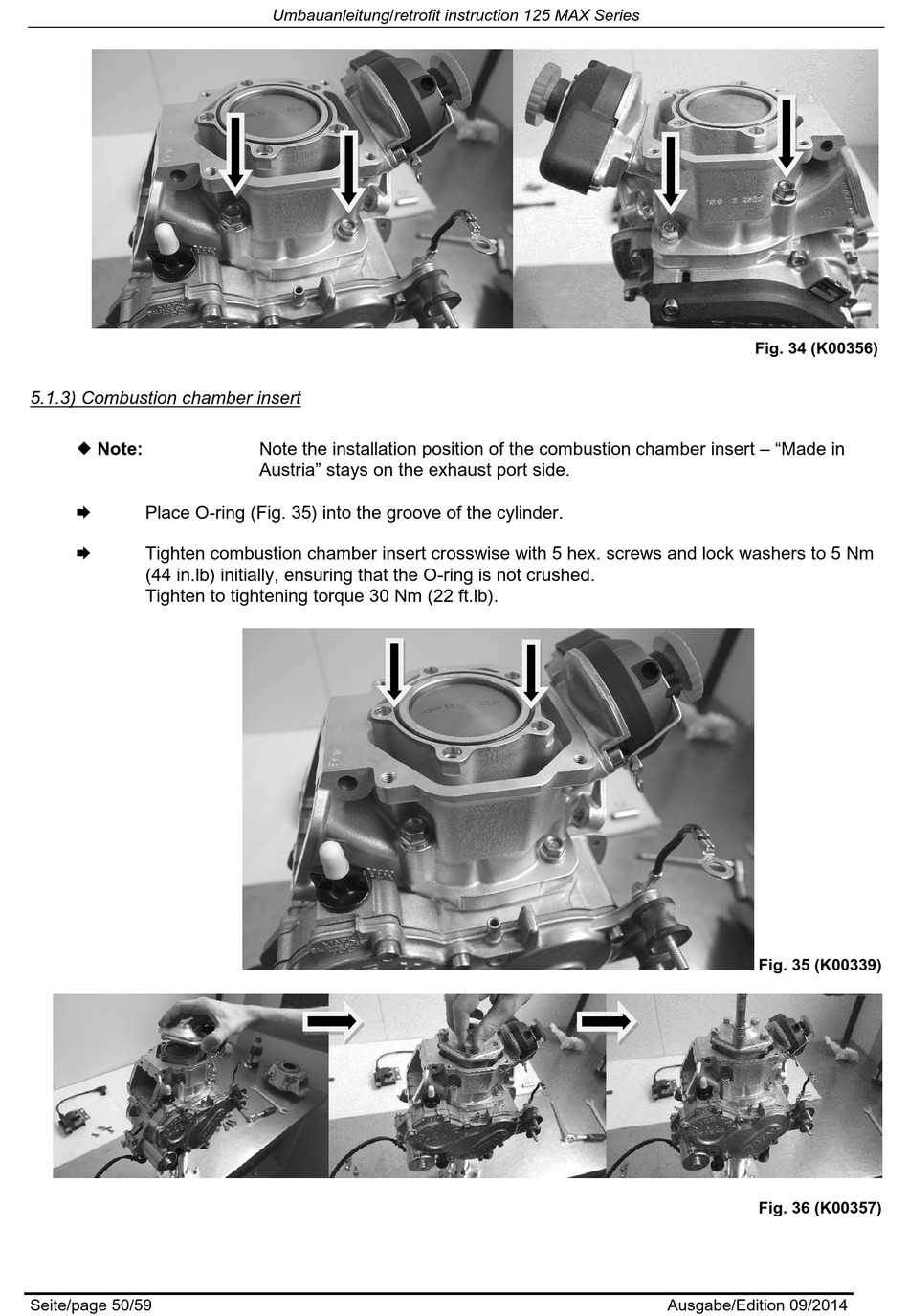

Fig. 34 (K00356)
Fig. 35 (K00339)
Fig. 36 (K00357)
