BDS-3

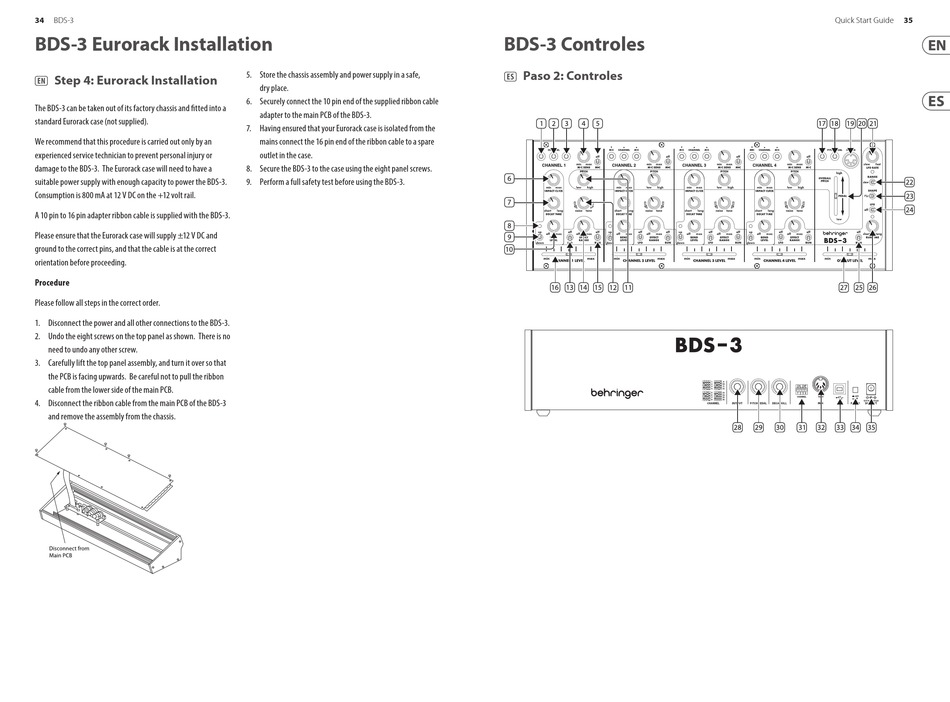

BDS-3 Eurorack Installation
(EN) Step 4: Eurorack Installation
The BDS-3 can be taken out of its factory chassis and fitted into a
standard Eurorack case (not supplied).
We recommend that this procedure is carried out only by an
experienced service technician to prevent personal injury or
damage to the BDS-3. The Eurorack case will need to have a
suitable power supply with enough capacity to power the BDS-3.
Consumption is 800 mA at 12 V DC on the +12 volt rail.
A 10 pin to 16 pin adapter ribbon cable is supplied with the BDS-3.
Please ensure that the Eurorack case will supply ±12 V DC and
ground to the correct pins, and that the cable is at the correct
orientation before proceeding.
Procedure
Please follow all steps in the correct order.
1. Disconnect the power and all other connections to the BDS-3.
2. Undo the eight screws on the top panel as shown. There is no
need to undo any other screw.
3. Carefully lift the top panel assembly, and turn it over so that
the PCB is facing upwards. Be careful not to pull the ribbon
cable from the lower side of the main PCB.
4. Disconnect the ribbon cable from the main PCB of the BDS-3
and remove the assembly from the chassis.
5. Store the chassis assembly and power supply in a safe,
dry place.
6. Securely connect the 10 pin end of the supplied ribbon cable
adapter to the main PCB of the BDS-3.
7. Having ensured that your Eurorack case is isolated from the
mains connect the 16 pin end of the ribbon cable to a spare
outlet in the case.
8. Secure the BDS-3 to the case using the eight panel screws.
9. Perform a full safety test before using the BDS-3.
BDS-3 Controles
(ES) Paso 2: Controles
