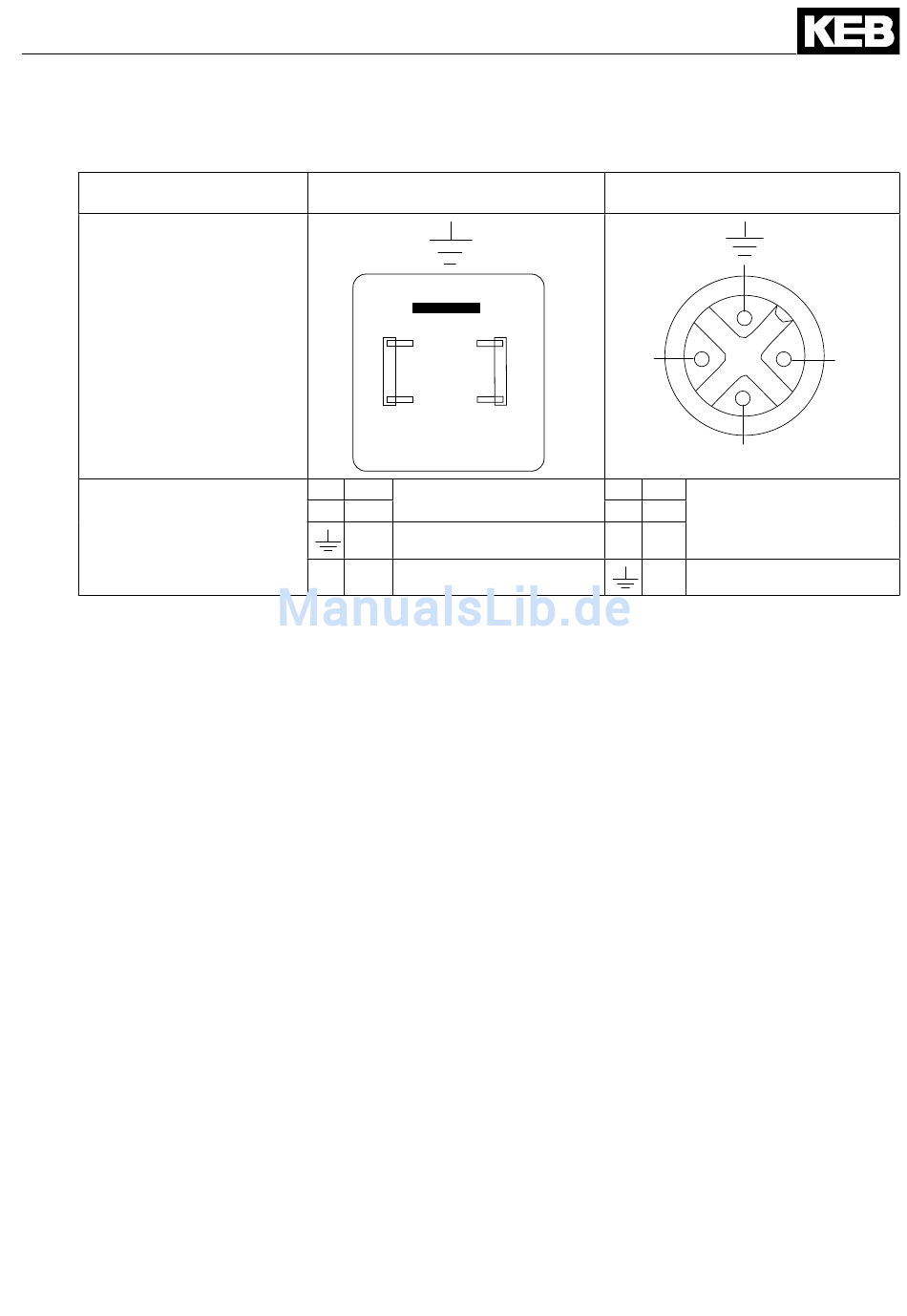

Separate ventilator connection

Separate ventilator connec-
tion
View of the connector pins at
the motor
Terminal assignment
Ax...Dx.SM.5
1
1 L1
1 x 230 V AC
2 N
PE Protective conductor
Connection
3
2
1 U
2 V
3 x 400 V AC
3 W
PE Protective conductor
Ex.SM.5
1
2
