English
Dr. Nikolas Stihl
IMPORTANT! READ BEFORE USING AND
KEEP IN A SAFE PLACE FOR REFERENCE.
2 Guide to Using this Manual
2.1 Applicable documents
The local safety regulations apply.
► In addition to this User Manual, you should
also read, understand and retain the following
documents:
– User Manual for STIHL AR battery
– User Manual for "AP belt bag with connect‐
ing cable"
– Safety notices and precautions for
STIHL AP battery
– User Manual for STIHL AL 101, 301, 301-4,
500 chargers
– Safety information for STIHL batteries and
products with built-in battery:
www.stihl.com/safety-data-sheets
For further information on STIHL connected,
compatible products and FAQs, please visit
www.connect.stihl.com or available from a STIHL
servicing dealer.
®
The Bluetooth word mark and logos are regis‐
tered trademarks owned by Bluetooth SIG, Inc.
These word marks and logos are used by STIHL
under license.
Batteries with are equipped with a Bluetooth
radio interface. Local operating restrictions (in
aircraft or hospitals, for example) must be
observed.
2.2 Symbols in Text
This symbol refers to a chapter in this
instruction manual.
2.3 Symbols used with warnings in
the text
WARNING
■ This symbol indicates dangers that can cause
serious injuries or death.
► The measures indicated can avoid serious
injuries or death.
32
NOTICE
■ This symbol indicates dangers that can cause
damage to property.
► The measures indicated can avoid damage
to property.

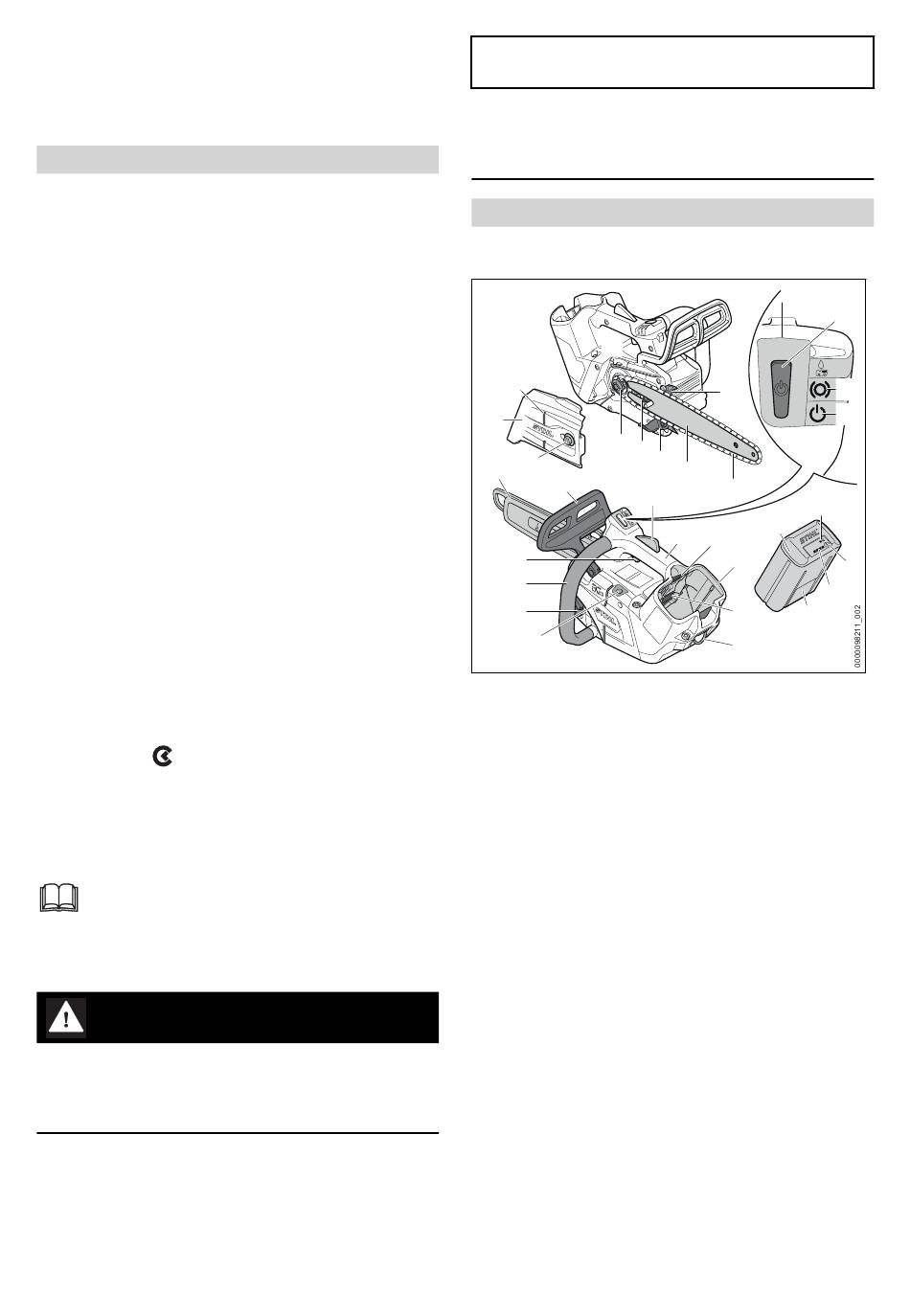

3 Overview
3.1 Chainsaw and Battery
7
8
9
10
11
24
23
22
21
1 Chain sprocket
The chain sprocket drives the saw chain.
2 Tensioning screw
®
The tensioning screw is used to adjust the
chain tension.
3 Spiked bumper
The spiked bumper supports the chainsaw
against the wood while cutting.
4 Chain catcher
The chain catcher catches the saw chain if it
breaks or comes off the bar.
5 Guide bar
The guide bar supports and guides the saw
chain.
6 Saw chain
The saw chain cuts the wood.
7 Felling notch
The felling direction can be controlled by the
felling notch.
8 Chain sprocket cover
The chain sprocket cover covers the chain
sprocket and fastens the guide bar to the
chainsaw.
2 Guide to Using this Manual
#
3
1
2
4
5
6
15
25
16
17
18
19
20
0458-007-9801-A
12
13
14
28
27
26
#
