List of contents
en
Product Overview
General
Operation and using
Behaviour in snow and frost
Awning control with the automatic function
Customised lighting
Description of the remote control
Maintenance
Cleaning
Fabric cleaning
Functional disturbances – FAQ
Disassembly
Disposal

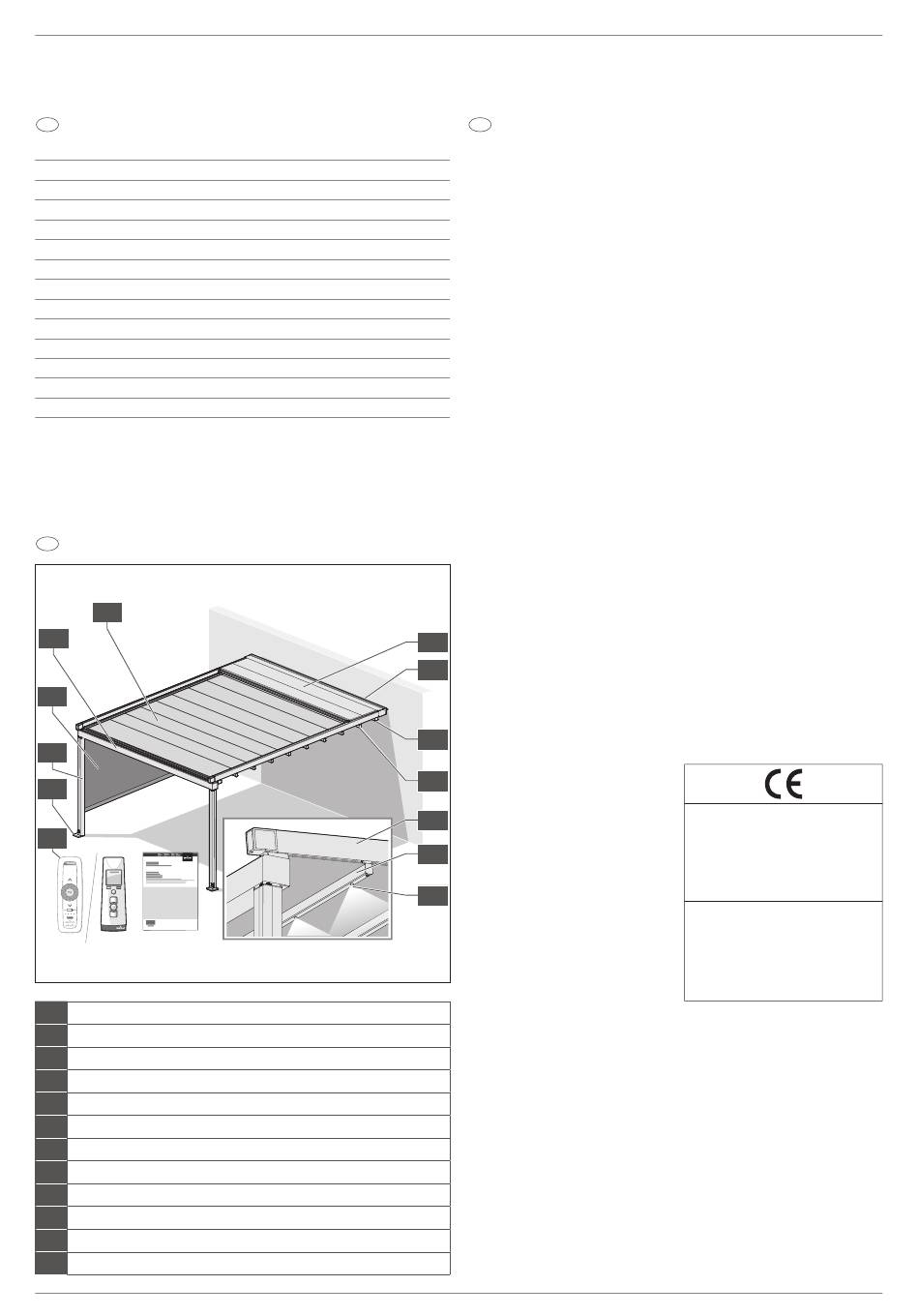

Product Overview
en
12
11
10
9
8
7
Somfy BiConnect
1
Safety shield with guttering safety shield
2
Wall bracket
3
Transom 80x60 mm
4
Transom 45x60 mm
5
Side channel
6
LED spotlight
7
Remote control and product-accompanying documentation
8
Post plate
9
Post
10
Vertical sun protection weinor VertiTex II
11
Guttering
12
Fabric
6
Technische Änderungen vorbehalten | Technische wijzigingen voorbehouden | We reserve the right to make technical changes | Sous réserve de modifications techniques
General
en
6
• Read these instructions, observe their contents and warning information
prior to initial use!
6
10
Intended use
16
The weinor PergoTex II LED is a sunscreen and rain protection system and may
17
only be used as such. Misuse can lead to hazards, damage or to collapse of the
18
awning and is not permissible. Changes, additions and attachments may only
19
be made with weinor's written permission. Prohibited changes to the awning
20
will result in voiding of the guarantee claims.
24
26
Target groups for these use and maintenance instructions
32
These instructions are primarily intended for users and operators of the unit.
34
35
Information regarding the product
Sun and rain protection
The PergoTex II fabric can be opened to any interim position up to its maxi-
mum length for protection against sun and rain.
Optimum rain drain only be exists if the installation has a pitch which exceeds
8°. The safety shield protects the fabric against weathering.
Noise generation (creaking) in the event of temperature changes:
Noises which occur on the system after proper maintenance are unavoidable
and are mostly due to the expansion of components due to the effect of heat.
• Have your system serviced regularly by the specialist company! The specialist
company checks and maintains the fastening screws and (if present) the
moving bearing points to minimise noise generation, especially in the case of
temperature influences!
1
Note regarding possible offset of staves in multi-section units
2
Manufacturing tolerances in the fabric could lead to staves in multi-section units
being minimally staggered in reverse.
Different effects of solar radiation can lead to staggering of the staves as the
fabrics can expand due to exposure to the
3
CE mark
4
weinor GmbH & Co. KG declares
that the weinor PergoTex II is in
5
compliance with the basic requi-
rements and relevant provisions
of the EN standards. The pergola
4
awning system complies with
the requirements of the wind
6
resistance class shown on the CE
conformity mark. The requirements
shall only be deemed as met, if the
manufacturer's instructions have
been adhered to.
Energy efficiency category
weinor PergoTex II LED/Basic incorporate energy efficiency category light
sources (F).
Noise level
In the non-assembled state, the noise level of this awning is below 70 dB(A).
sun..
weinor GmbH & Co. KG
Mathias-Brüggen-Straße 110
50829 Cologne
22
Declaration of performance
no. 240318-PX
N 13561:2004+A1:2008
weinor PergoTex II/LED/Basic
Pergola awning
Installation in outdoor areas
Resistance against wind loads
Wind resistance class 3
