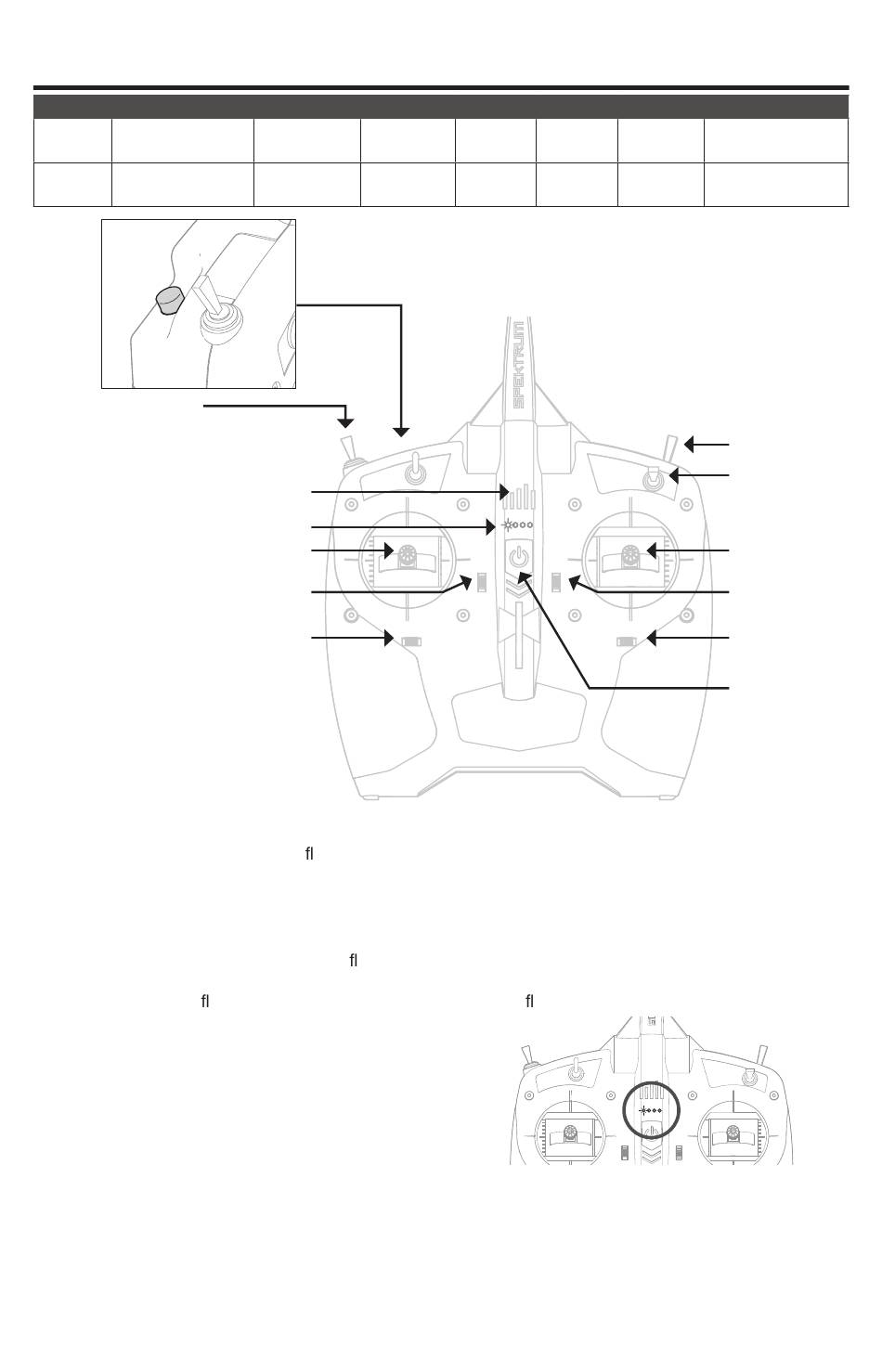

DXS Transmitter Control (RTF)
A
Aileron (Left/Right)
Mode 1
Throttle (Up/Down)
Aileron (Left/Right)
Mode 2
Elevator (Up/Down)
Bind/Panic Switch
Bind/Panic Switch
Flight Mode Switch
0 = Normal / Beginner Mode (NORM)
1 = Stunt 1 Mode (FM1)
2 = Stunt 2 Mode (FM2)
Battery Voltage Level
The included DXS transmitter includes a ight battery volt-
age level indicator.
LED Smart battery voltage indication is based on current
voltage and will change with throttle/power usage. When
throttle is increased, voltage drops, causing the bars to
indicate lower power (e.g., fewer LEDs solid or ashing.)
When the throttle is lowered to idle/off, the bars recover
(e.g., more LEDs solid or ashing). LED bars will rise and
lower depending on throttle/power usage.
The Smart battery low voltage alarm sounds when the
ESCs are close to reaching low voltage cutoff. The alarm
will sound for 25 seconds. If the throttle is lowered to allow
voltage recovery, the alarm will stop early. Land the aircraft
when the alarm sounds.
www.modellmarkt24.ch
B
Throttle Trim
Aileron Trim
Elevator Trim
Aileron Trim
LED Indicator
Flight Battery
Level Indicator
G
F
E
C
D
ON/OFF
Rudder
Switch
Trim
ON/OFF
Rudder
Switch
Trim
After landing, reset the Smart battery low voltage warning:
1. Powering cycling the DXS transmitter, or
2. Disconnecting the battery from the aircraft for more
than 15 seconds or until the LED voltage indication
bars go out.
Connect a fully charged battery to the aircraft, which will
ensure the Smart battery low voltage warning resets prior
to the next ight.
5
E
F
Elevator
Rudder (Left/Right)
Trim
Elevator (Up/Down)
Throttle
Rudder (Left/Right)
Trim
Throttle (Up/Down)
Throttle Hold
Dual Rate
Switch
A
B
C
D
G
