Handicare 2000 Installationsanleitung Seite 140

EXPLANATION USE
8
Manufacturer:
*11P00394*
11 P 0 0 3 9 4 _ rev.G
TEST/EXAMINATION EXPLANATION USE
Manufacturer:
8.21
Handicare Accessibility Ltd
Kingswinford, West Midlands, United Kingdom
T: +44 1384 408 700, T: +44 1384 408 719, www.handicare.com
DRIVE: RACK & PINION
RATED LOAD: 115 kg (254 lb)
or 137 kg (302 lb) WITH HD KIT
RATED SPEED: 0.12m/s (23.6 ft/min)
DESIGNED AND TESTED IN ACCORDANCE WITH ASME A18.1-2017 & EN 81-40
CAN/CSA B44.1/ASME A17.5-2019
E114826
RATED INPUT FROM CHARGER: 1A/33V DC
RATED OUTPUT TO MOTOR: 20A/24V DC
EN81-40 OR ASME A18.1 TO BE USED FOR INSPECTIONS AND TESTS
Indoor use only. Utilisation intérieure seulement.
One person only. Une seule personne.
Stairlift for persons with physical disabilities.
Contrôleur d'appareils élévateurs pour personnes handicapées.
8.24

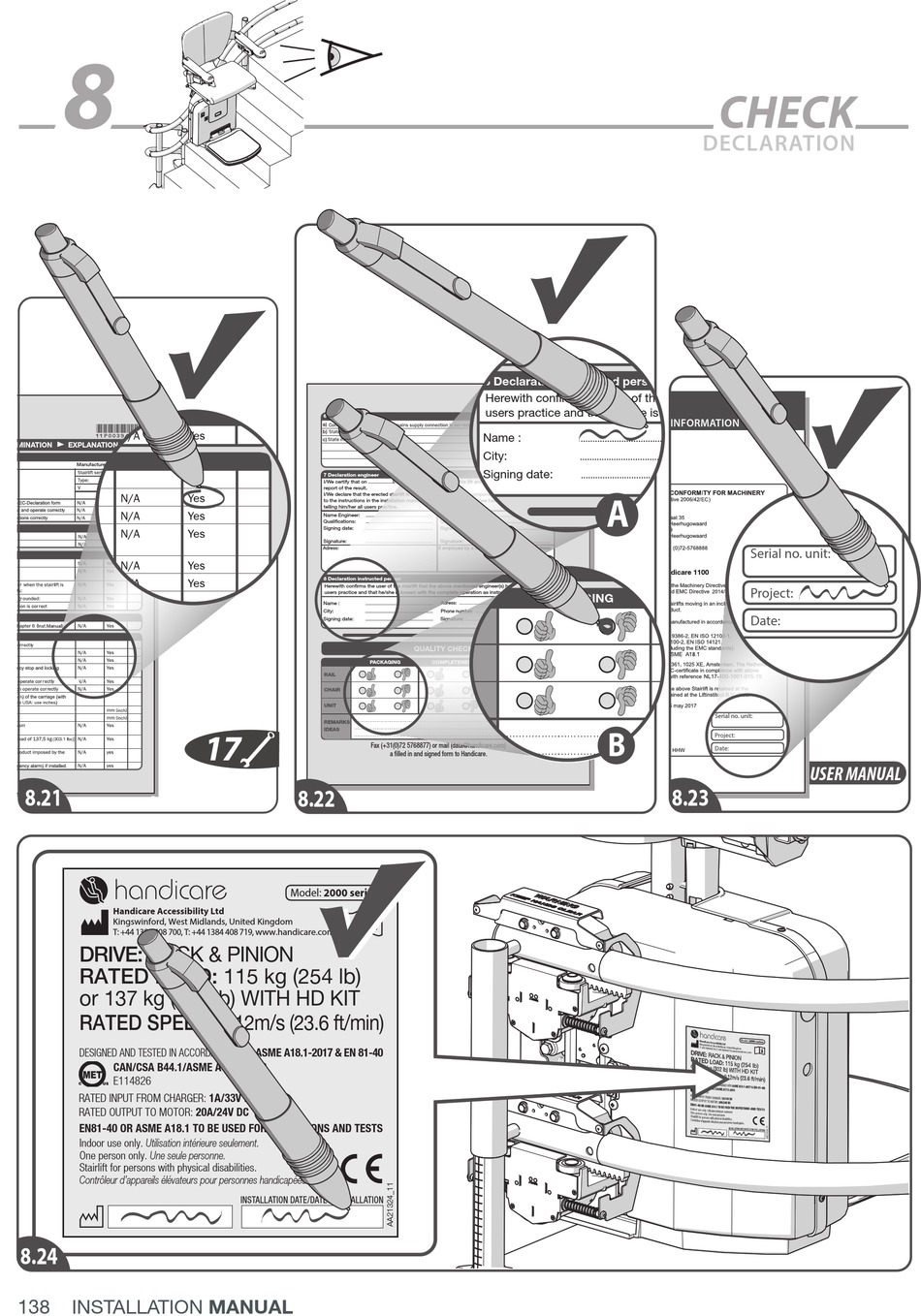

INSTALLATION MANUAL
138
11 P 0 0 3 9 4 _ rev.G
