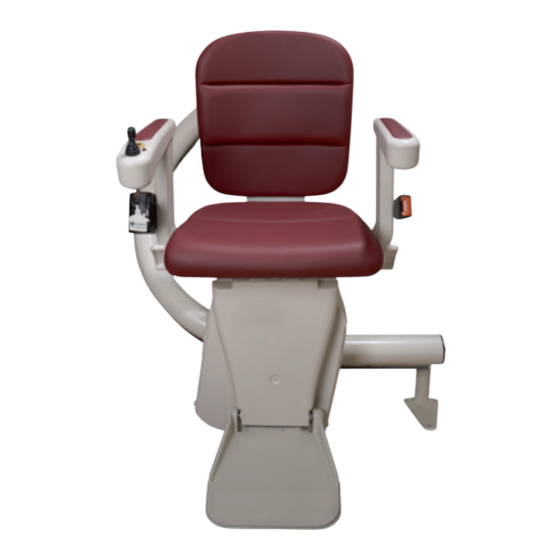

Verwandte Anleitungen für Handicare FREECURVE 3 ELEGANCE
Inhaltszusammenfassung für Handicare FREECURVE 3 ELEGANCE

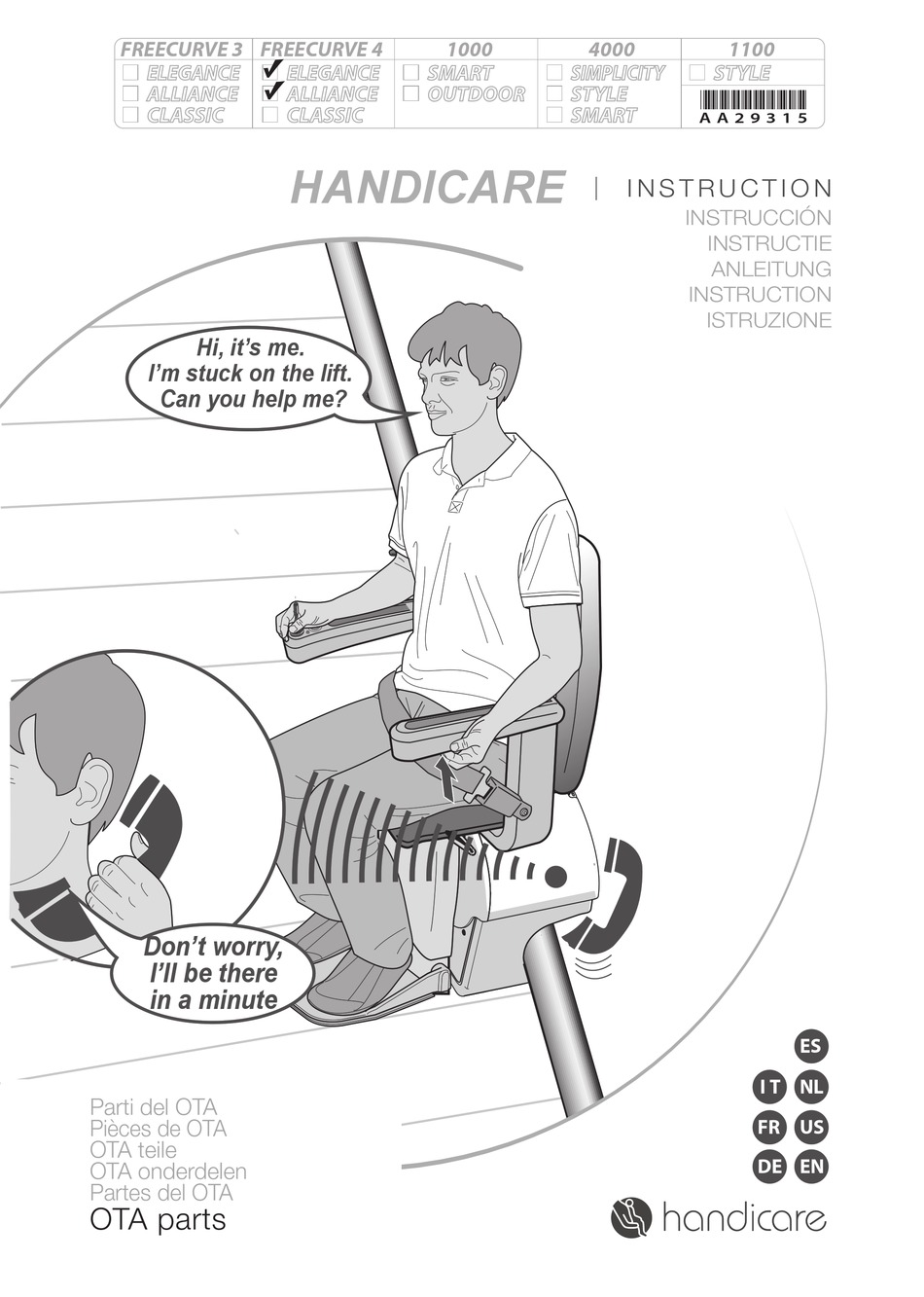

- Seite 1 ALLIANCE ALLIANCE OUTDOOR STYLE *AA29315* CLASSIC CLASSIC SMART A A 2 9 3 1 5 HANDICARE I N S T R U C T I O N INSTRUCCIÓN INSTRUCTIE ANLEITUNG INSTRUCTION ISTRUZIONE Hi, it’s me. I’m stuck on the lift.
- Seite 2 KIT: AA29315 TOOLS REQUIRED Pz 2 2 mm INSTRUCTION 11P00266 Electro Static Discharge 1 OTA INSTRUCTION...
- Seite 3 EXPLANATION Only a technician certified for this lift should service this lift (for more detailled information about the required competence see the installation manual). The latest instructions for the lift and instructions for options are available for download at www.handicarepartners.com. [1] Check that all the components of the concerning kit are present.
- Seite 4 CLICK! CLICK! 3 OTA INSTRUCTION...
- Seite 5 EXPLANATION [4]Guide the battery loom through the chair axle{A}. Connect the spade connectors to the battery loom{B}. [5]Position the OTA box under the seatbase. Fasten the box{B}. [6]Install the SIM card{A}. Press the print in the box{B}. [7]Place the antenne{A}. Guide the wire of the antenne through the hole of the OTA box{B}. Connect the wire{C}. [8]Connect the power loom to the print.
- Seite 6 0 Nm 2 mm 5 OTA INSTRUCTION...
- Seite 7 EXPLANATION [9]Guide the power loom through the seatbase axle{A}. Connect the spade connectors to the power loom{B}. Con- nect the battery loom to the power loom{C}. [10]Connect the OTA loom the print{A}. Connect the TWC switch loom to the print{B}. [11]Connect the speaker loom{A}.
- Seite 8 7 OTA INSTRUCTION...
- Seite 9 EXPLANATION [13]Remove the armrest side cover. [14]Loosen the armrest top cover (2 screws). [15]Remove this cover by pushing the cover in the front direction{A}. Then turn away the cover{B}. [16]Remove the bottom cover of the armrest{A}. Position the supplied bottom cover (with 2 holes for the equipment) in the armrest{B}.
- Seite 10 CLICK! CLICK! 9 OTA INSTRUCTION...
- Seite 11 EXPLANATION [17]Fit the push button of the OTA in the armrest{A}. Fasten the button{B}. Fit the microphone in the armrest{C}. Note: By turning the metal ring the push button can be released from the connector part. [18]Guide the OTA loom through the armrest{A}. Connect the loom with the push button{B}. Connect the loom with the microphone{C}.
- Seite 12 Antenna Push button Orange LED 1 Orange LED 2 11 OTA INSTRUCTION...
- Seite 13 EXPLANATION [21]Disconnect the two wires of the battery. [22]Connect the battery loom of the OTA to the batteries (black wire on the -){A}. Reconnect the normal wires of the battery on top of the piggyback connectors. The green LED on the OTA print will blink once. Wait until the orange LED 1 flashes at 50/50 rate , orange LED 2 is on solid.
- Seite 14 Numbers: Hi, it’s me. Can you hear me? tel. 1: ..tel. 2: ..tel. 3: ..tel. 4: ..tel. 5: ..Perfect, I understand you loud and clear Numbers: tel. 1: ..tel. 2: ..tel. 3: ..PROGRAM WITH APP tel.
- Seite 15 EXPLANATION [25]Using the APP on the phone, install the three telephone numbers to be called in case of emergency. And also the press-in time, before the OTA is activated, can be adjusted with the APP. [26]Check if the OTA is working well. Make connection with all five programmed emergency numbers (if not confirmed, the user must hang up the call and repeat the process, the system will automatically cycle to the next number).
- Seite 16 Questo manuale contiene: Questo kit deve essere installato da un tecnico certificato. È possibile scaricare le più recenti istruzioni relative al montascale e alle varie opzioni dal sito Web www.handicarepartners.com. Handicare Stairlifts B.V. Handicare Montascale Newtonstraat 35 Via Chiaviche 17...
