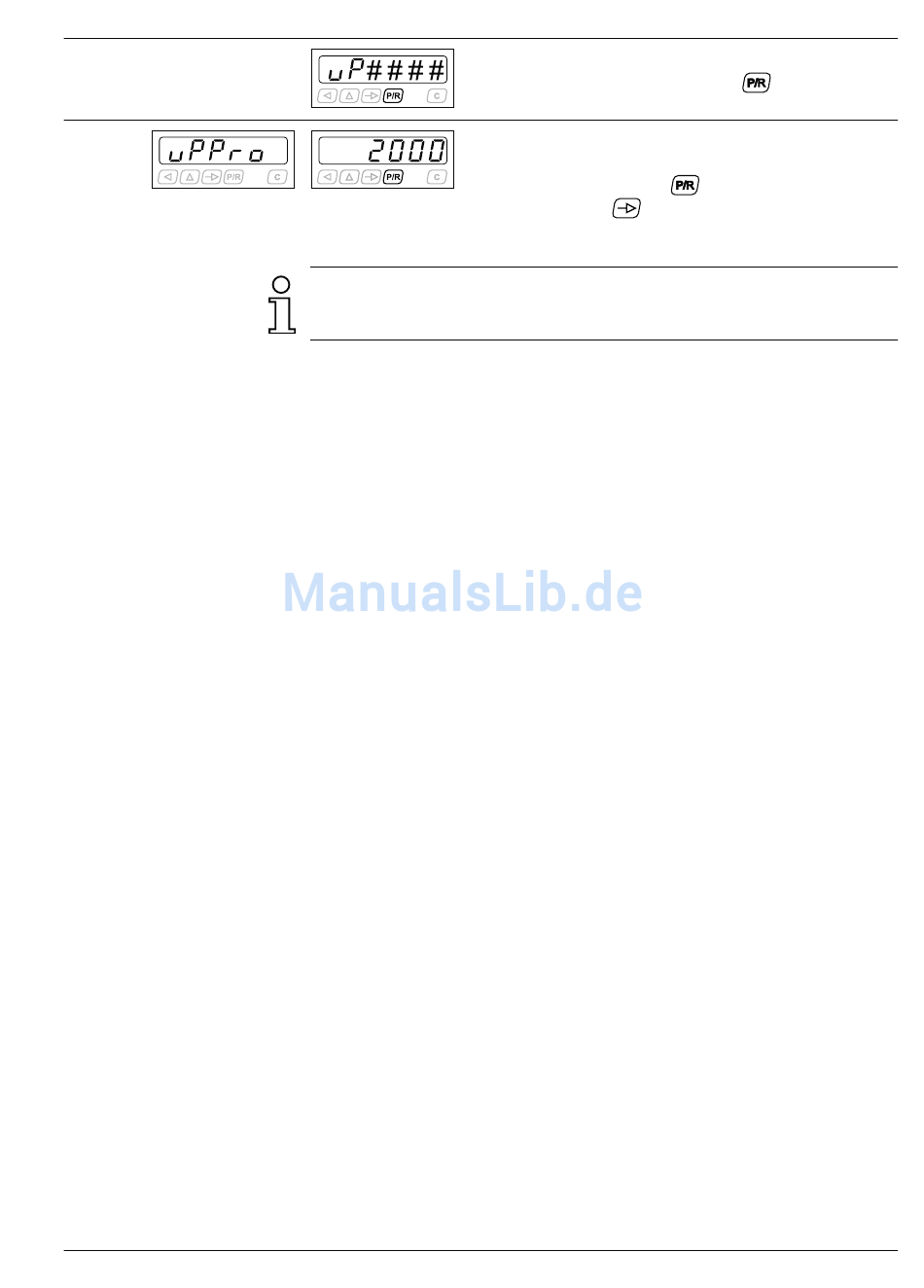

Momentary indication of A/D value.
Enter maximum value using key
Maximum value is dopted.
Indicated in the display for 1 s, then followed by
the assigned value. Key
mode. Press key
value (F) is indicated.
The alignment operation runs also in operating mode. In this case,
settings for bFdn (line 13) and bFuP (line 14) in programming field 2
must be „0" .

6 Technical data

Technical data - electrical ratings
Voltage supply
Power consumption
Sensor supply
Display
Number of digits
Digit height
Function
Input logic
Control inputs
Control functions
Data memory
Analog input
Outputs relay
Interfaces
Standard DIN EN 61010-1
Emitted interference
Interference immunity
Programmable parameters
www.baumer.com
= back to operation
until the actual measured
115/230 VAC ±10 % (50/60 Hz)
24/48 VAC ±10 % (50/60 Hz)
12...30 VDC
6 VA, 4 W
12...26 VDC / max. 80 mA
LED, 7-segment display
6-digits
14 mm
Digital display of 1 analog
measured value
PNP
2 inputs
Hold, reset, keylock, etc.
>10 years in EEPROM
0(2)...10 V, 0(4)...20 mA
Resolution 12 bit
Temperature coefficient
typically ±20 ppm/ºC
Normally open / closed, programmable
RS232, RS422, RS485
Protection class II
Overvoltage category II
Pollution degree 2
DIN EN 61000-6-3
DIN EN 61000-6-2
2 limits, analog input,
control inputs, calculating functions,
offset (maximum and minimum
analog limit)
PCD41
.
