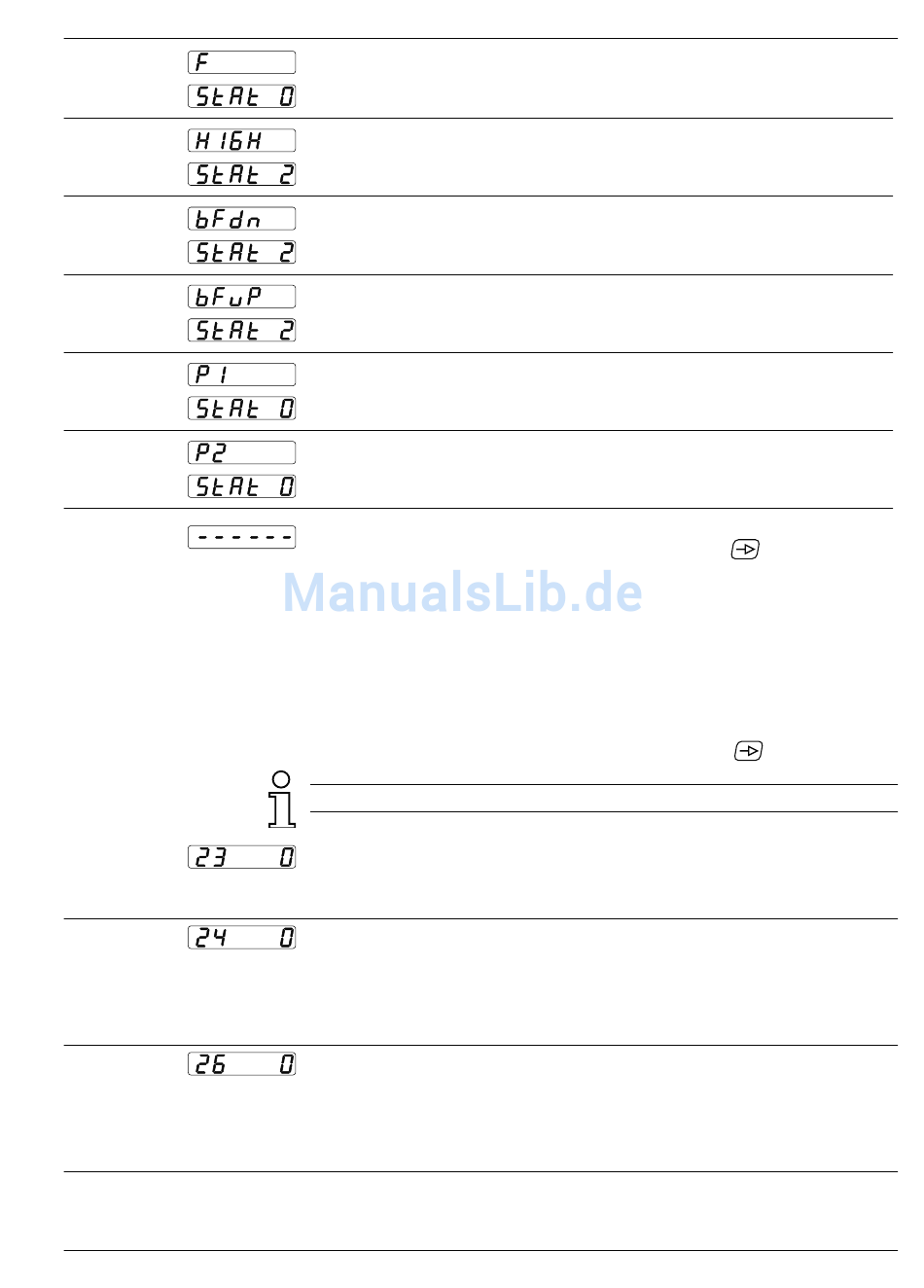

Line 11
Line 12
Line 13
Line 14
Line 15
Line 16
Line 23
Line 24
Line 26
F - Current measurement
HIGH - Peak memory
bFdn - Display adjustment initial value
bFuP - Display adjustment final value
P1 - Limit P1
P2 - Limit P2
The dash line signalizes the end of the second programming field.
Continue to programming field 2 with help of the
Programming field 3
All functions and values conditioned by the machinery as well as in-
terface parameters are programmed here.
● The programming field 3 starts with programming line 23.
The selected line number appears on the left display field.
The programmed value appears in the right display field.
➜ Switch to the next programming line using the
Factory setting is always marked with a *.
Operating threshold of control inputs (PNP)
0 * operating threshold 6 V
1 operating threshold 3 V
Decimal point
0 * no decimal point
1 00000.0
2 0000.00
3 000.000
Offset
0 * no offset
1 offset 2 V / 4 mA, without monitoring <2 V / 4 mA
2 offset 2 V / 4 mA, with monitoring <2 V / 4 mA
(display flashes)
www.baumer.com
PCD41
key.
key.
