PCD41
Positioning of the minimum Teach-IN position value utilizing the measured object
Positioning of the maximum Teach-IN position value utilizing the measured object
40

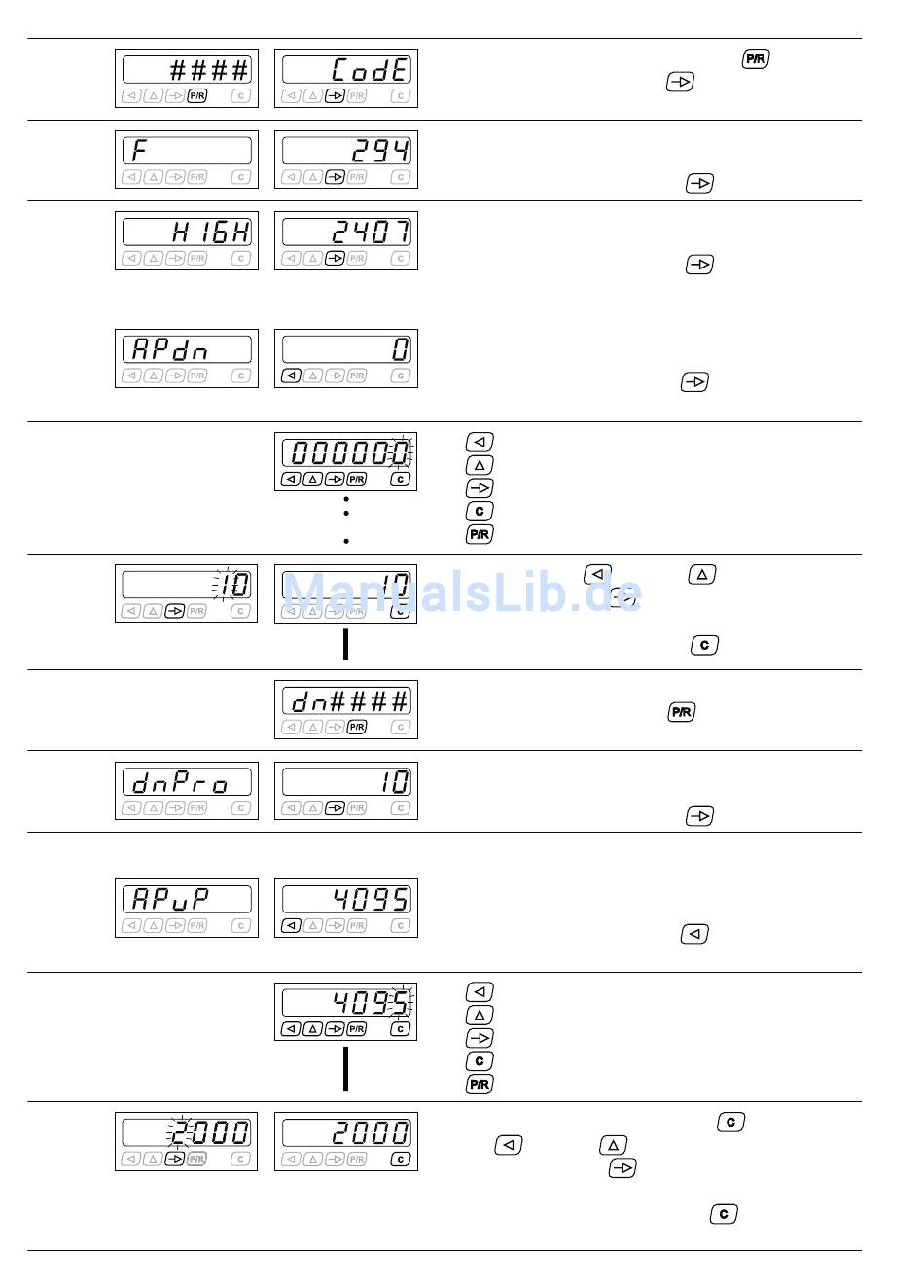

Access programming field using key
Enter code or skip with key
Actual measured value
Indicated in the display for 1 s, then followed by
the assigned value. Press key
Peak memory
Indicated in the display for 1 s, then followed by
the assigned value. Press key
Minimum position value alignment
Indicated in the display for 1 s, then followed by
the assigned value. Press key
Value is flashing.
Key = access decade
Key = enter numeral
Key = acknowledge
Key = reset to „000000"
Key = programming operation finalized
Example: 1 x key
Acknowledge by key
Result: initial value „10"
Start aligning operation by key
Momentary indication of A/D value.
Enter minimum value using
Minimum value is adopted.
Indicated in the display for 1 s, then followed by
the assigned value. Press key
Maximum position value alignment
Indicated in the display for 1 s, then followed by
the assigned value. Press key
Value is flashing.
Key = access decade
Key = enter numeral
Key = acknowledge
Key = reset to „000000"
Key = programming operation finalized
Example: to „000000" using the
3 x key , 2 x key
Acknowledge by key
Outcome: final value „2000"
Start alignment operation by key
