PCD41
26

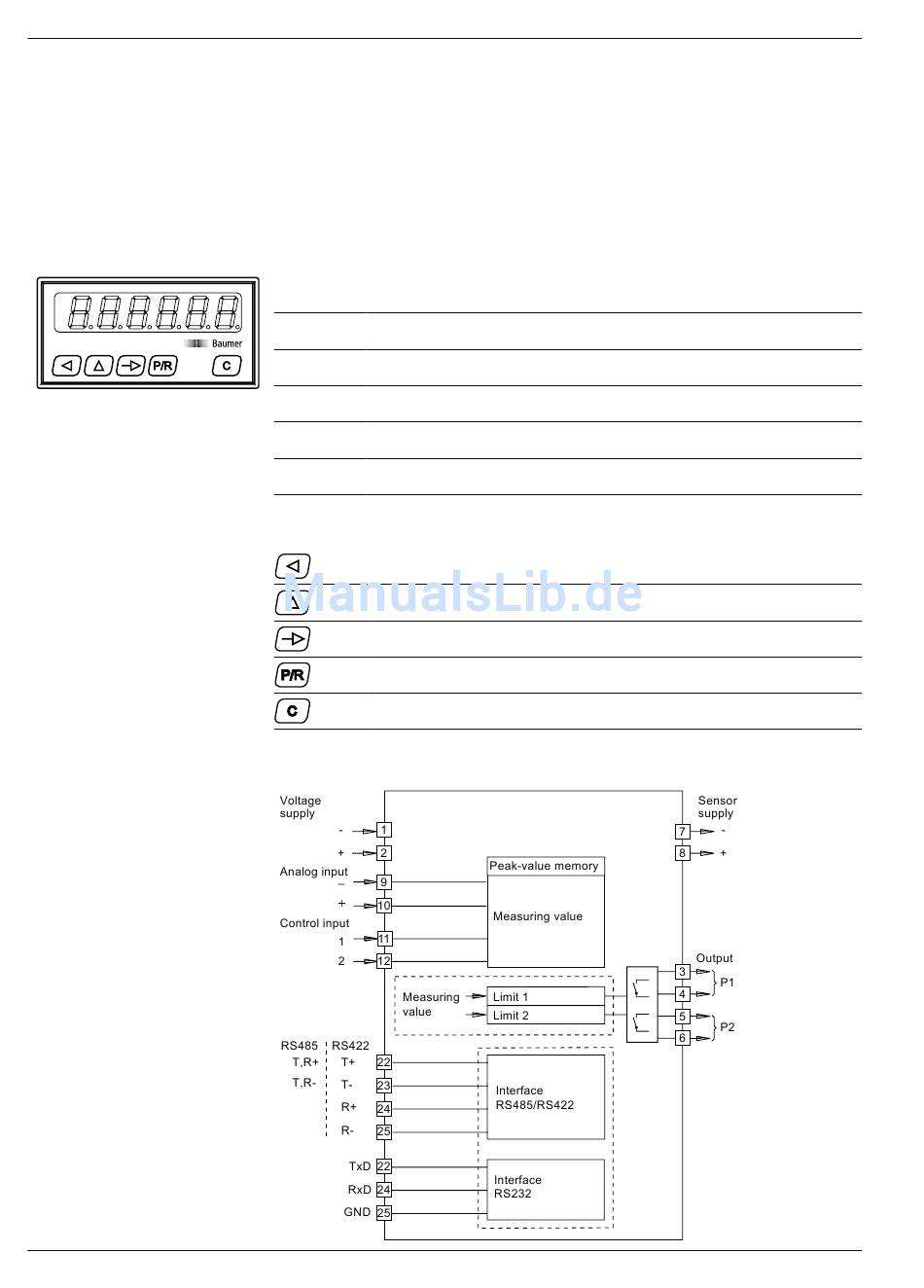

2 System description

2.1

Description

The Controller is best suited for displaying measurements having
process measuring signals of 0/4 - 20 mA or 0/2 V - 10 V.
The 2-position scaling allows to allocate the process measuring si-
gnals to the desired display by simply setting the initial value to, for
example, 0 and the final value to, e.g., 2000 via the keyboard.
Display of operation parameters
F Current display status
Peak memory
HIGH
bFdn Display adjustment initial value
bFuP Display adjustment final value
P1 Limit value 1
Limit value 2
P2
Control panel
Key to select decade towards the LEFT
Key to select decade UPWARDS
Shift key for display of functions, confirmation key
Key to shift between programming/operating level
Reset / Tare key
2.2

Block diagram
