3 Connection

This chapter will explain how the contacts are assigned and give you
some examples of connection. Under chapters 3.1 to 3.6, you will
find actual tips and technical data for the various connections.

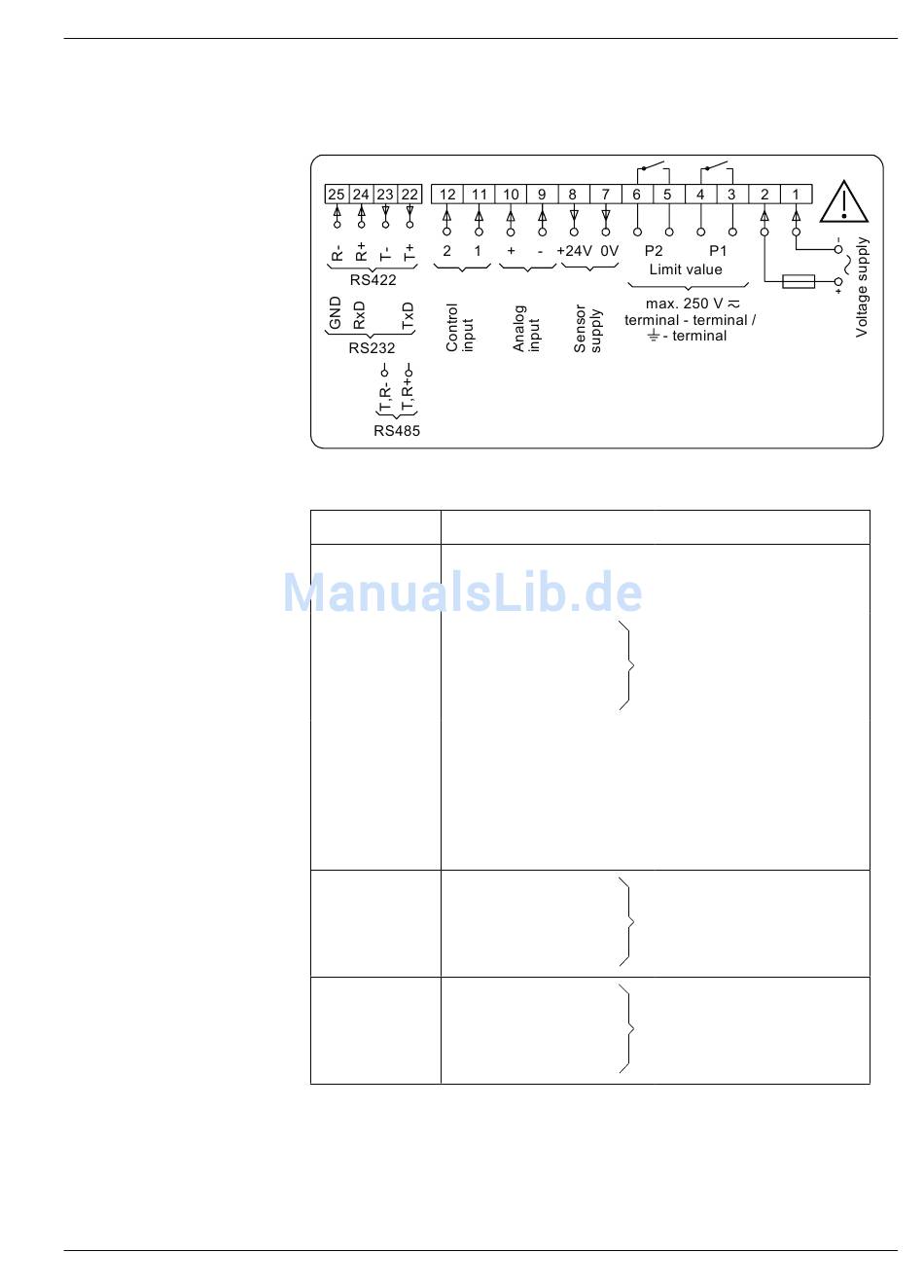

Assignment
Assignment
Pin
10
11
12
22
23
24
25
22
23
24
25
Function
1 Voltage supply (–)
2 Voltage supply (+)
3 Relay output P1
4 Relay output P1
5 Relay output P2
6 Relay output P2
7 Sensor supply 0 V
8 Sensor supply +12...26 VDC
9 Analo input -
Analog input +
Control input 1
Control input 2
T+ / T,R+
T- / T,R-
R+
R-
TxD
RxD
GND
www.baumer.com
Option 2 limit
Option RS422/485
Option RS232
PCD41
27
