PCD41
Line 1
Line 2
Line 3
Line 4
Line 5
Line 6
Modify status ➜ Enter relevant status digit via the keys
34

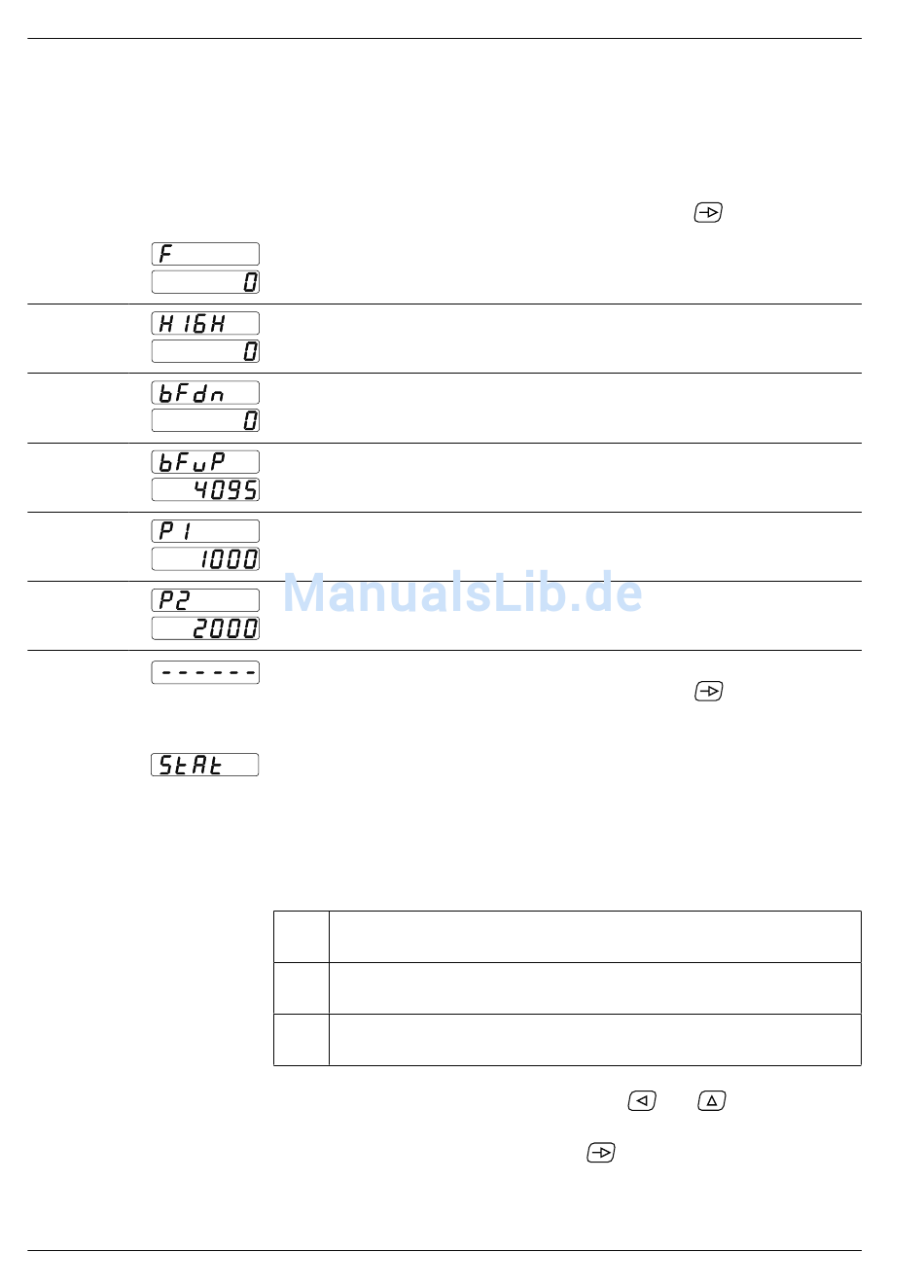

Programming field 1
Here it is possible to select and modify all operation parameters. The
operation parameters that are disabled for the operator are also dis-
played.
● The denomination of the selected line, e.g. F , is displayed for one
second, afterwards its corresponding digit value.
➜ Continue to the next programming line via the
F - Current measurement
HIGH - Peak memory
bFdn - Display adjustment initial value
bFuP - Display adjustment final value
P1 - Limit value 1
P2 - Limit value 2
The dash line signalizes the end of the first programming field.
Continue to programming field 2 with help of the
Programming field 2
Here it is possible to disable or enable the individual operation para-
meters. StAt is displayed.
● The denomination of the selected line, e.g. "F", "HIGH", "bFdn",
"bFuP" appears for one second; afterwards the display jumps to
StAt and the current status value.
Meaning of the numbers
0 Operation parameter can be selected, read and modified,
and/or cleared on the operator level. (free access)
1 Operation parameter can be selected and read on the opera-
tor level. (display only)
Operation parameter cannot be selected on the operator
2
level. The relevant function remains valid. (disabled)
● Modified status digit is automatically saved when the next pro-
gramming line is selected vie the
www.baumer.com
key.
key.
and .
key.
