PCD41
38
5.1

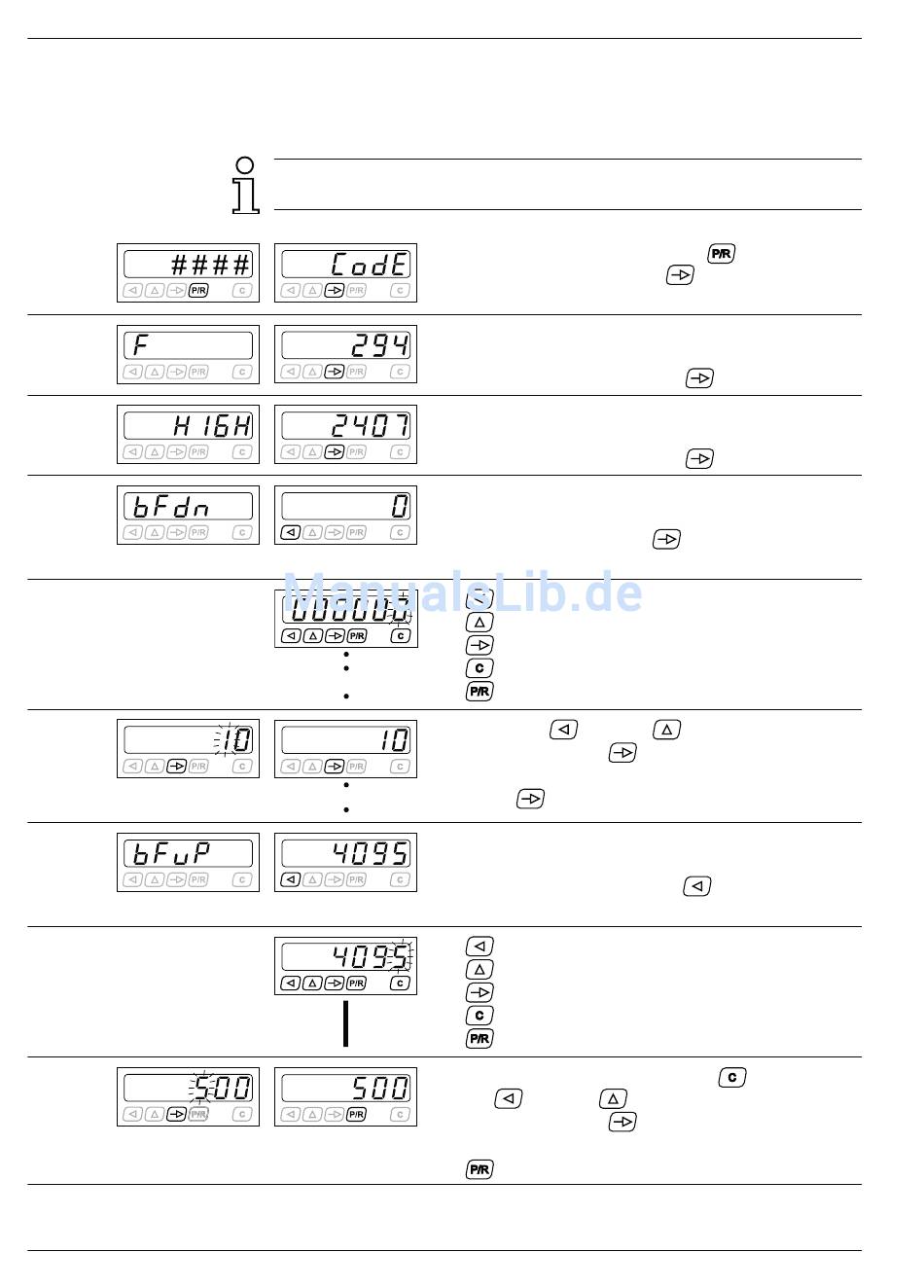

Two-state balancing

a) Standard two-point alignment
In a standard alignment an initial value and a final value are assigned
to the analog value.
Prior to the alignment, enter the following settings in programming
field 3: line 41 = 0; in line 26 the offset.
Access programming field using
Enter code or skip with key
Actual measured value
Indicated in the display for 1 s, then followed by
the assigned value. Press key
Peak memory
Indicated in the display for 1 s, then followed by
the assigned value. Press key
Minimum position value alignment
Indicated in display for 1 s, then followed by the
assigned value. Press key
Value is flashing.
Key
Key
Key
Key
Key
Example: 1 x
Acknowledge by key
Result: initial value „10"
Press key
Maximum position value alignment
Indicated in the display for 1 s, then followed by
the assigned value. Press key
Value is flashing.
Key
Key
Key
Key
Key
Example: to „000000" using key
2 x key
Acknowledge by key
Result: final value „500"
Key
www.baumer.com
= access decade
= enter numeral
= acknowledge
= reset to „000000"
= programming operation finalized
key, 1 x
.
.
= access decade
= enter numeral
= acknowledge
= reset to „000000"
= programming operation finalized
, 5 x key
= back to operating mode.
.
.
.
.
.
key
.
.
