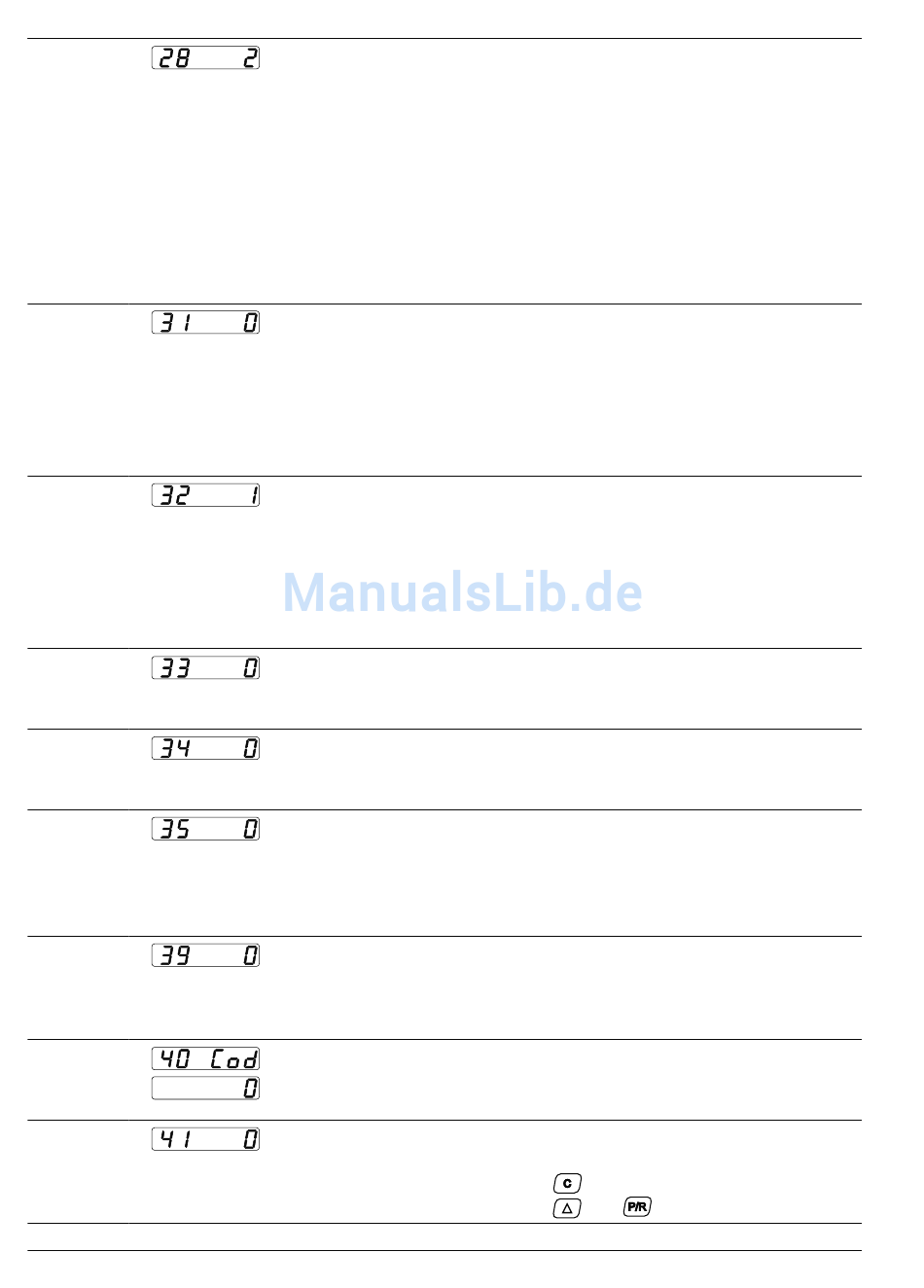

Baumer PCD41 Betriebsanleitung Seite 36

PCD41
Line 28
Line 31
Line 32
Line 33
Line 34
Line 35
Line 39
Line 40
Line 41
36
Update time (repeated display and relay response time)
0 0.1 s
1 0.5 s
2 * 1 s
3 2 s
4 3 s
5 5 s
6 10 s
7 20 s
8 30 s
9 60 s
Function of control input 1 (Contact 11)
0 * hold
1 reset peak memory
2 programming disabled
3 keylock
4 print (only for interface option)
5 Tare function
Function of control input 2 (Contact 12)
0 hold
1 * reset peak memory
2 programming disabled
3 keylock
4 print (only for interface option)
5 Tare function
Assignment limit P1
0 * upper limit
1 lower limit
Assignment limit P2
0 * upper limit
1 lower limit
Output logic for relay outputs
0 * both outputs make contacts
1 P1 break contact, P2 make contact
2 P1 make contact, P2 break contact
3 both outputs break contacts
Hold delay time
0 * no delay
1 delay 1 s
1...9 s delay
Code settings
0 * code not active
max. 9999
Balancing analog input
0 * standard
1 two-state balancing via key
2 two-state balancing via key
