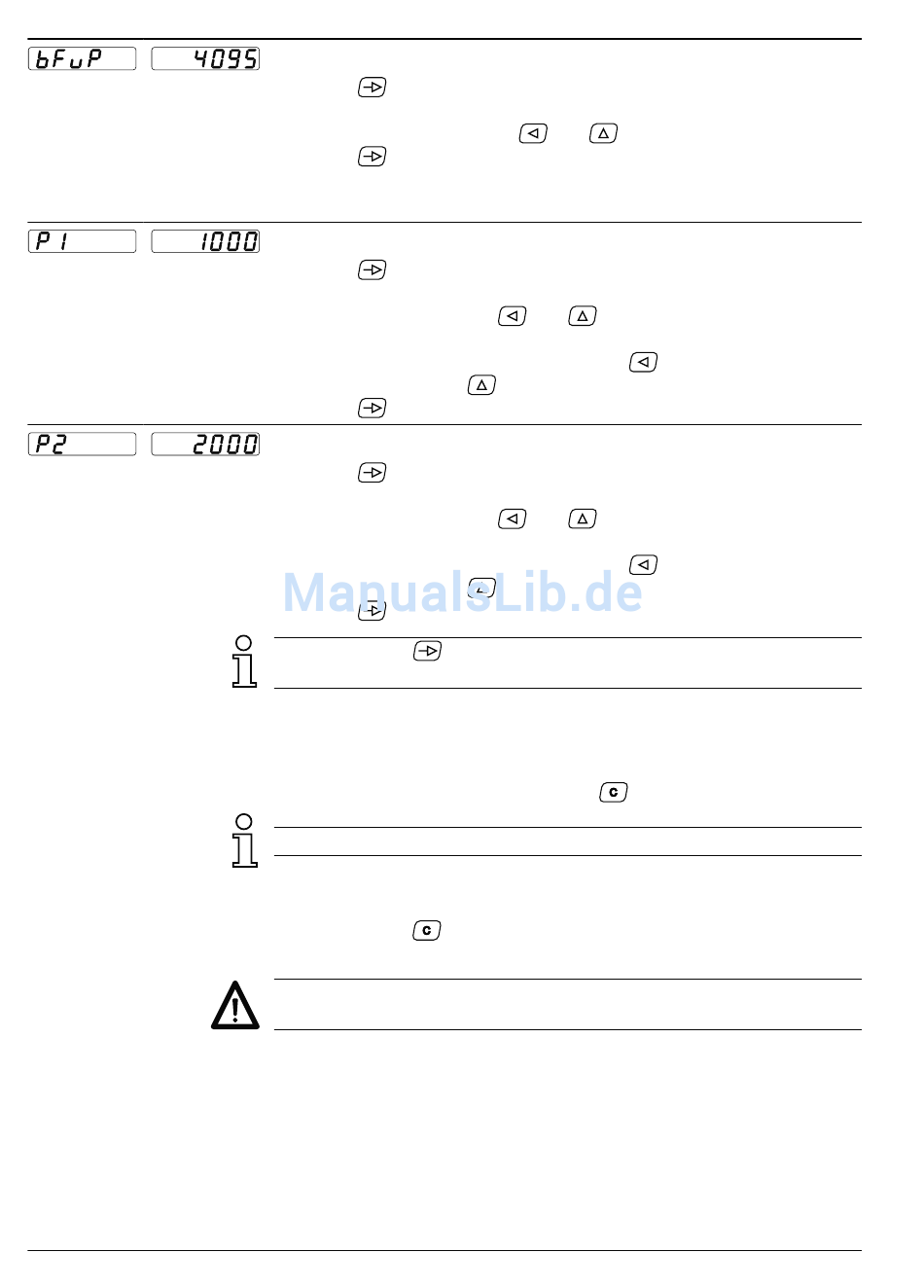

32
bFuP - Display adjustment final value
Read ➜ Press
bFuP appears for 1 s on the display, afterwards the final value.
➜ Enter final value via keys
Press
When measuring rotational speed, 0...10 V correspond to a speed
of 0...1000 rpm. The final value is set from 4095 to 1000.
Limit value P1
Read ➜ Press
P1 appears for 1 s on the display, afterwards the limit P1.
➜ Enter limit P1 via keys
The minus sign to indicate negative values is enabled in program-
ming line 41 (two-point alignment). Press
(-) and enter using key
➜ Press
Limit value P2
Read ➜ Press
P2 appears for 1 s on the display, afterwards the limit P2.
➜ Enter limit P2 via keys
The minus sign to indicate negative values is enabled in program-
ming line 41 (two-point alignment). Press
(-) and enter using key
➜ Press
If you Press the
be displayed.
4.1

Tare function

Using the tare function the measured value F is gauged in relation to
„0" , similar to a scale balanced at 0 for finding out the net weight.
Operate the tare function utilizing key
Enter parameter 1 in programming line 46 to enable the tare function.
➜ Select measured value F
➜ Operate key
measured value is internally saved as offset).
Enter parameter 1 (display only) in programming line 11 as function
lock in order to prevent unauthorised access.
Reread absolute measured value
Enter parameter 0 ( tare function disabled) in programming line
46. The internal offset is deleted. The display rereads the absolute
measured value again.
Tare operation utilizing the control inputs
Assign the desired function to control input 1 or 2 by entering para-
meter 5 (tare function enabled) in programming lines 31 or 32.
