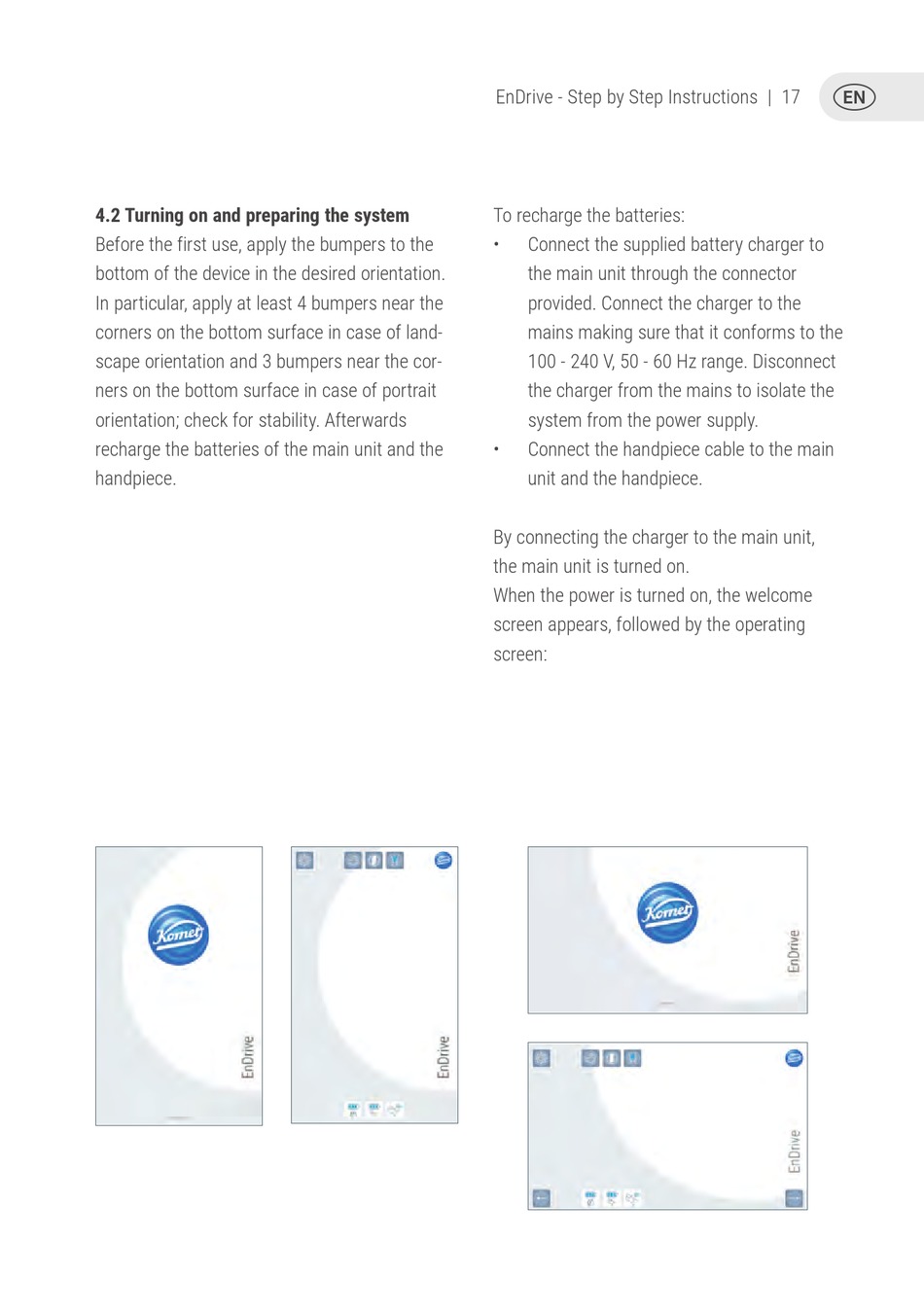

Komet EnDrive Gebrauchsanleitung Seite 17

4.2 Turning on and preparing the system
Before the first use, apply the bumpers to the
bottom of the device in the desired orientation.
In particular, apply at least 4 bumpers near the
corners on the bottom surface in case of land-
scape orientation and 3 bumpers near the cor-
ners on the bottom surface in case of portrait
orientation; check for stability. Afterwards
recharge the batteries of the main unit and the
handpiece.
EnDrive - Step by Step Instructions | 17
To recharge the batteries:
• Connect the supplied battery charger to
the main unit through the connector
provided. Connect the charger to the
mains making sure that it conforms to the
100 - 240 V, 50 - 60 Hz range. Disconnect
the charger from the mains to isolate the
system from the power supply.
• Connect the handpiece cable to the main
unit and the handpiece.
By connecting the charger to the main unit,
the main unit is turned on.
When the power is turned on, the welcome
screen appears, followed by the operating
screen:
