4 Installation and assembly
Step 2:
Unpack accessories
The accessories are packed in the shaft of the treatment unit.
Undo the screws on the shaft cover on the treatment unit.
1.
2. Remove the shaft cover and set aside.
3. Take the accessory sets out of the treatment unit.
Prefilter
Aeration set
Turbovent ventilation fan
Pump connection set (only systems with a pump)
4. If the system will not be assembled and installed immediately, put the shaft cover back on the shaft
and fasten it in place with the screws.
Step 3:
Fit the aeration set
Assemble the aeration set as shown in Fig. 13.
1.
2. Remove the plugs from the aeration opening and the outlet of the treatment unit.
3. Position the aeration set with the two short pipe sections at the openings and push it into the open-
ings as far as it will go.

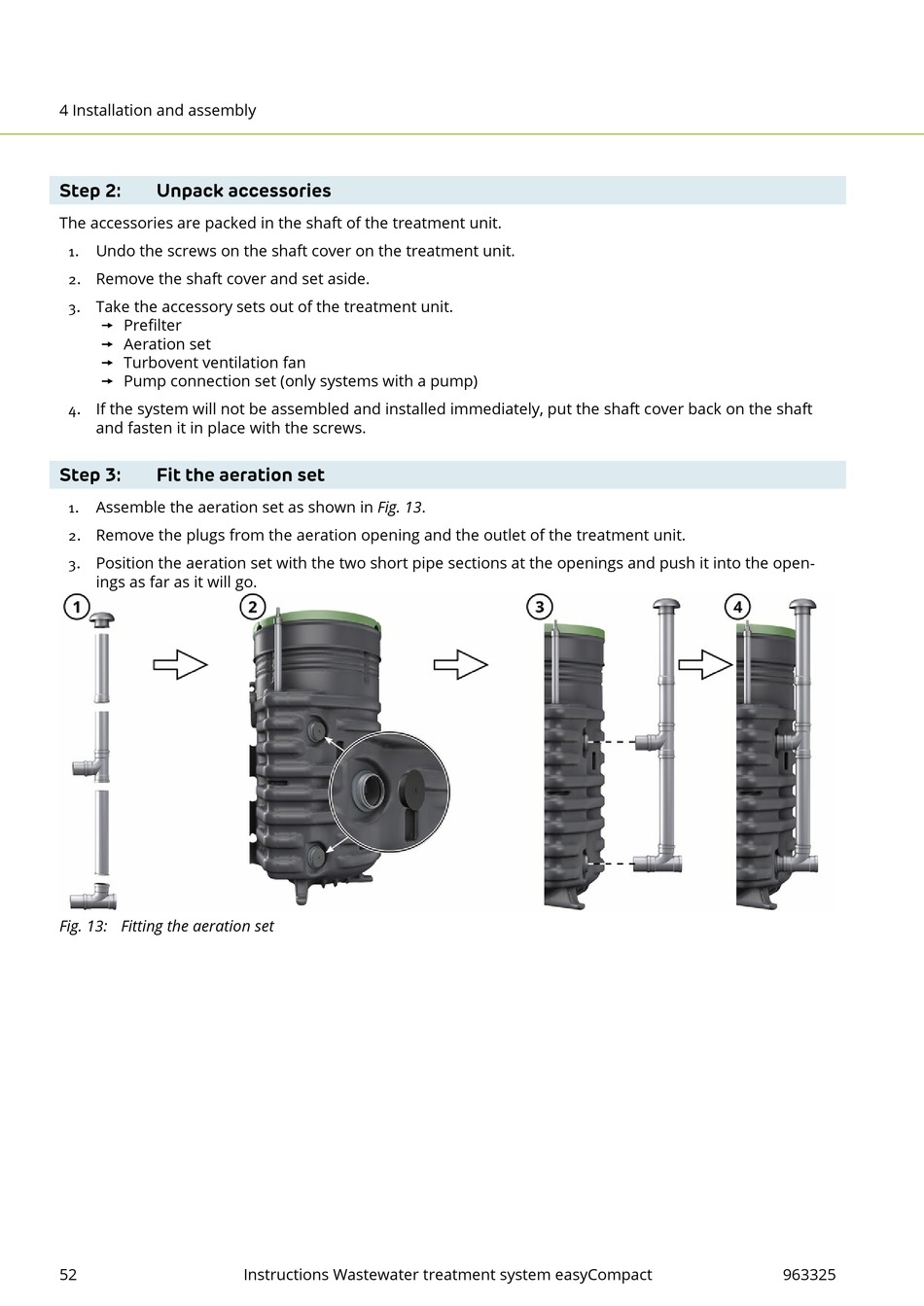

Fig. 13: Fitting the aeration set
52
Instructions Wastewater treatment system easyCompact
963325
