3 Delivery, transportation and storage
Unloading/transporting with a crane or excavator
Lift the system only via the two preassembled disposable lifting slings as shown in Fig. 1.
The slings must be evenly tensioned and the system must be horizontally level.
As a replacement, e.g. if lost or damaged, use only slings that at least meet the specifications in
Tab. 4. Both slings must be the same length.

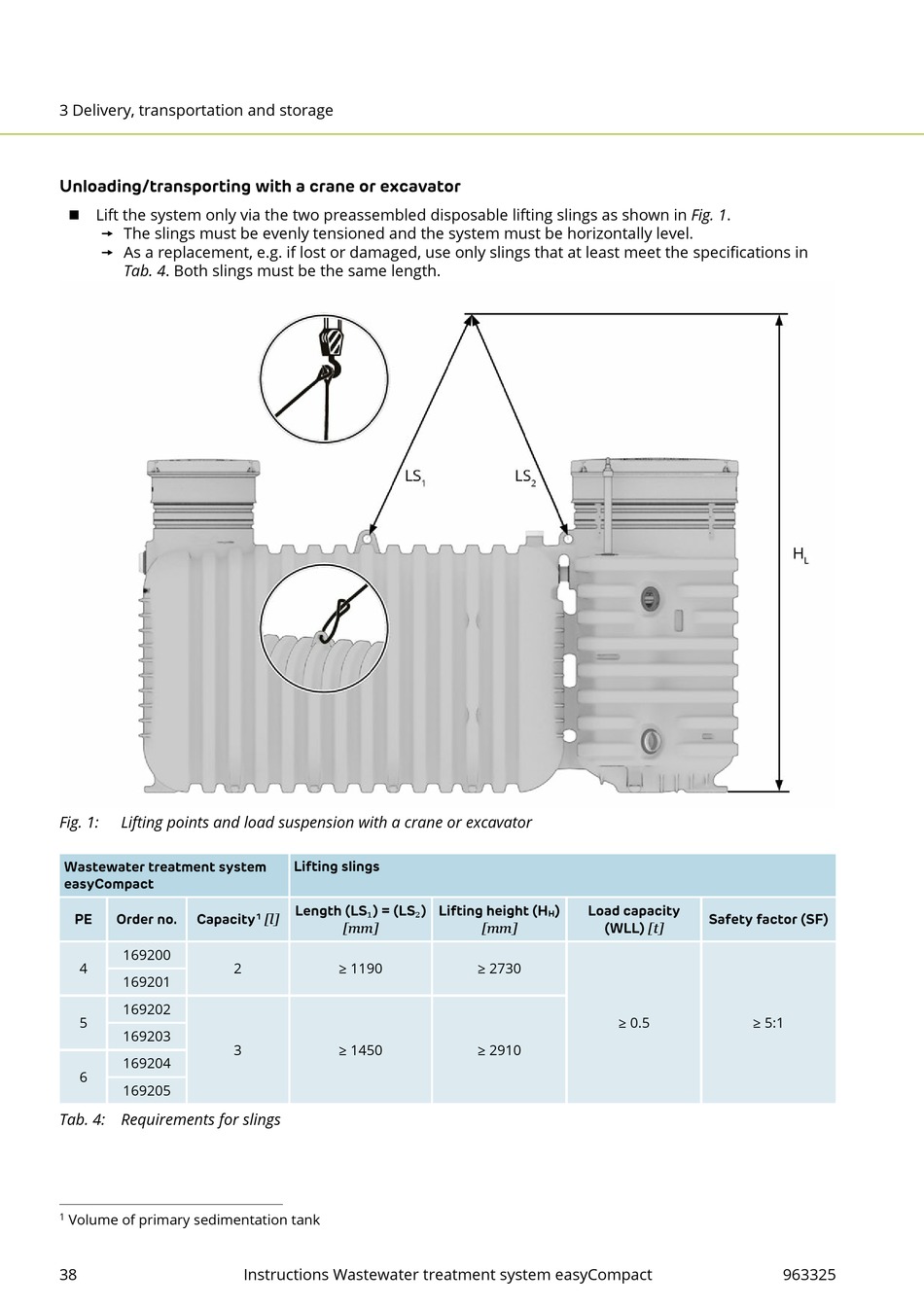

Fig. 1:
Lifting points and load suspension with a crane or excavator
Wastewater treatment system
easyCompact
PE
Order no.
Capacity
169200
4
2
169201
169202
5
169203
3
169204
6
169205
Tab. 4: Requirements for slings
Volume of primary sedimentation tank
1
38
Lifting slings
Length (LS₁) = (LS₂)
[l]
1
[mm]
≥ 1190
≥ 1450
Instructions Wastewater treatment system easyCompact
Lifting height (H
)
Load capacity
H
[mm]
(WLL) [t]
≥ 2730
≥ 2910
Safety factor (SF)
≥ 0.5
≥ 5:1
963325
