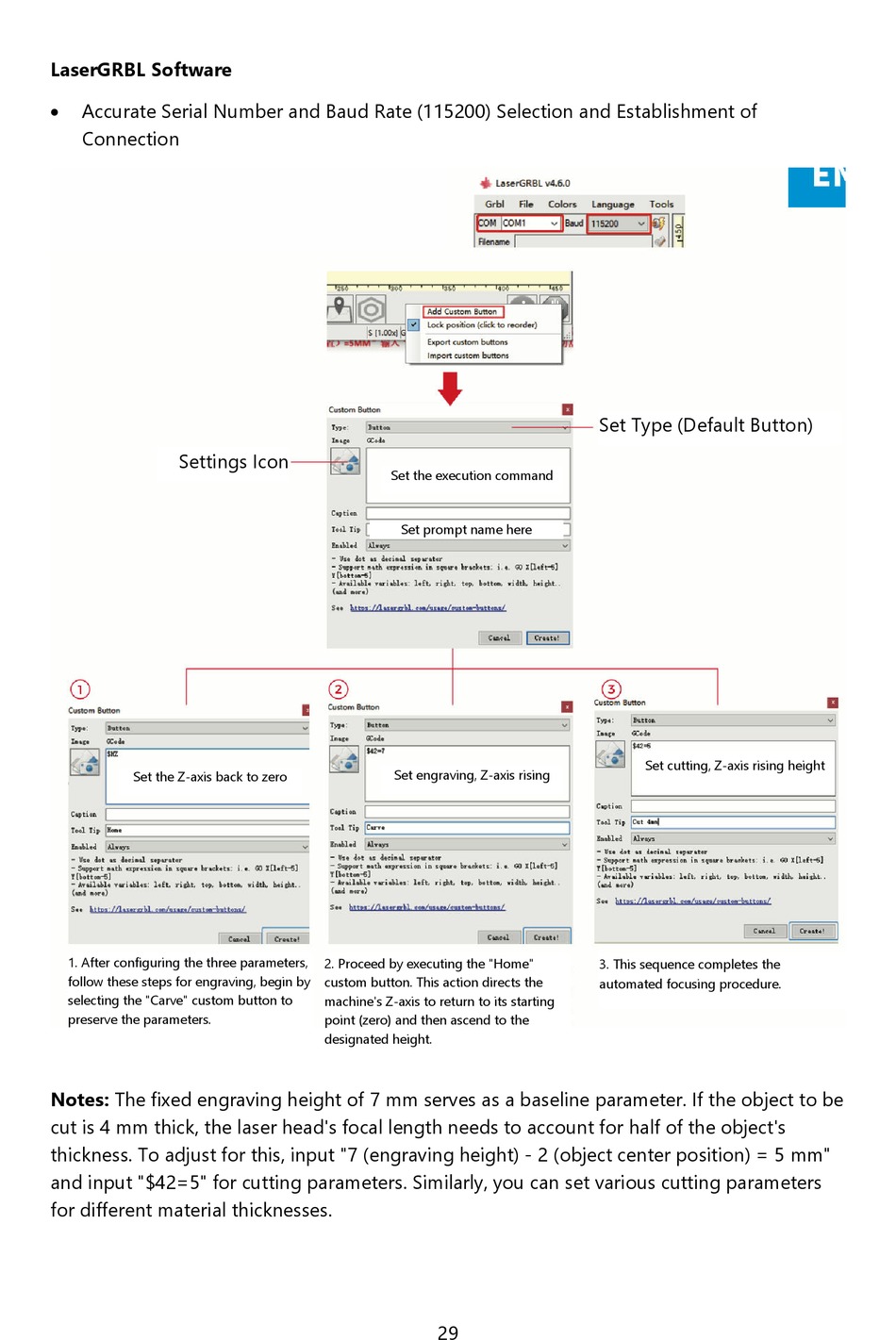

LaserGRBL Software

Accurate Serial Number and Baud Rate (115200) Selection and Establishment of
Connection
Settings Icon
Set the Z-axis back to zero
1. After configuring the three parameters,
follow these steps for engraving, begin by
selecting the "Carve" custom button to
preserve the parameters.
Notes: The fixed engraving height of 7 mm serves as a baseline parameter. If the object to be
cut is 4 mm thick, the laser head's focal length needs to account for half of the object's
thickness. To adjust for this, input "7 (engraving height) - 2 (object center position) = 5 mm"
and input "$42=5" for cutting parameters. Similarly, you can set various cutting parameters
for different material thicknesses.
Set the execution command
Set prompt name here
Set engraving, Z-axis rising
2. Proceed by executing the "Home"
custom button. This action directs the
machine's Z-axis to return to its starting
point (zero) and then ascend to the
designated height.
29
Set Type (Default Button)
Set cutting, Z-axis rising height
3. This sequence completes the
automated focusing procedure.
