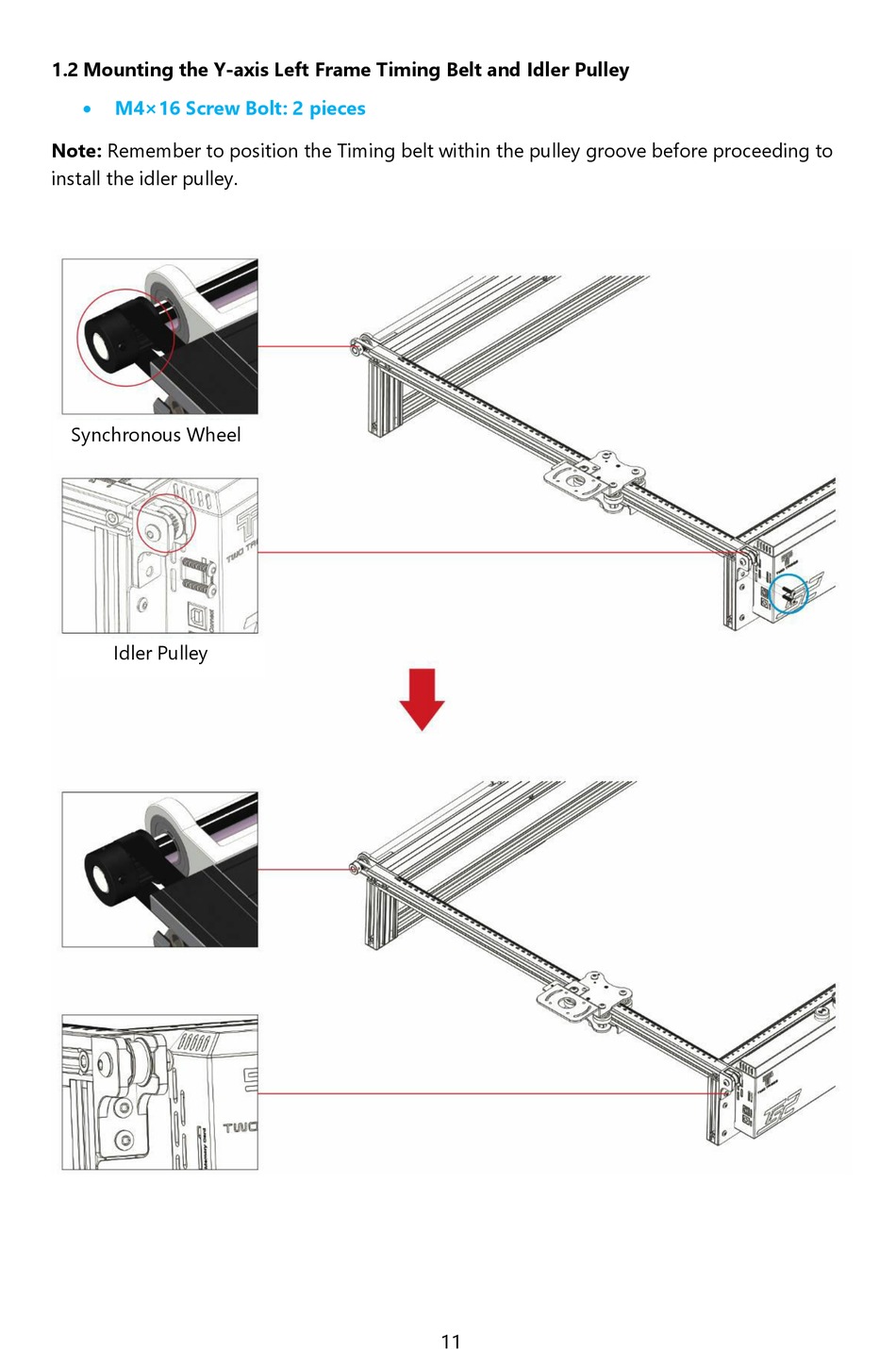

1.2 Mounting the Y-axis Left Frame Timing Belt and Idler Pulley

M4×16 Screw Bolt: 2 pieces
Note: Remember to position the Timing belt within the pulley groove before proceeding to
install the idler pulley.
Synchronous Wheel
Idler Pulley
