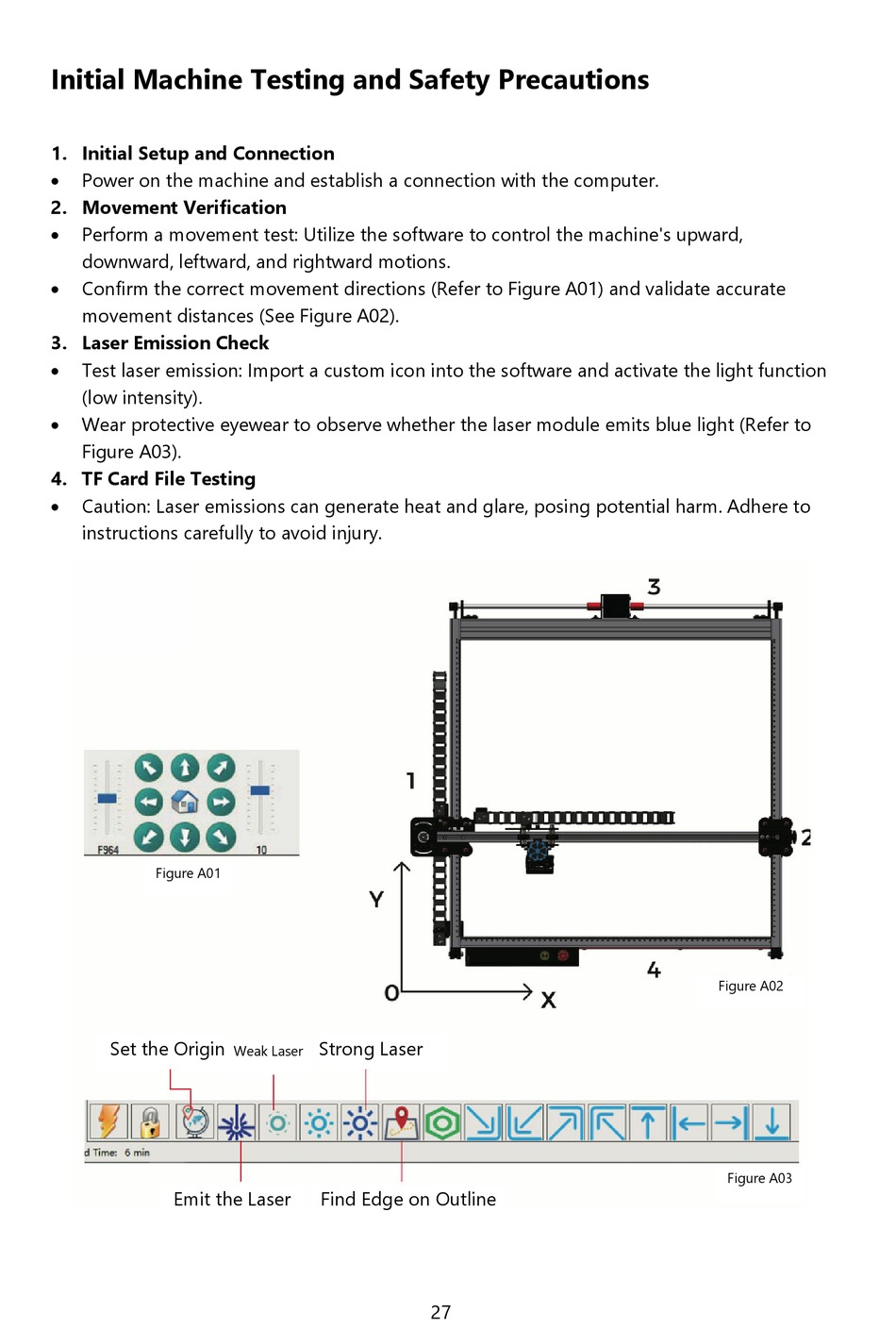

Initial Machine Testing and Safety Precautions
1. Initial Setup and Connection

Power on the machine and establish a connection with the computer.
2. Movement Verification

Perform a movement test: Utilize the software to control the machine's upward,
downward, leftward, and rightward motions.

Confirm the correct movement directions (Refer to Figure A01) and validate accurate
movement distances (See Figure A02).
3. Laser Emission Check

Test laser emission: Import a custom icon into the software and activate the light function
(low intensity).

Wear protective eyewear to observe whether the laser module emits blue light (Refer to
Figure A03).
4. TF Card File Testing

Caution: Laser emissions can generate heat and glare, posing potential harm. Adhere to
instructions carefully to avoid injury.
Figure A01
Set the Origin
Emit the Laser
Strong Laser
Weak Laser
Find Edge on Outline
27
Figure A02
Figure A03
