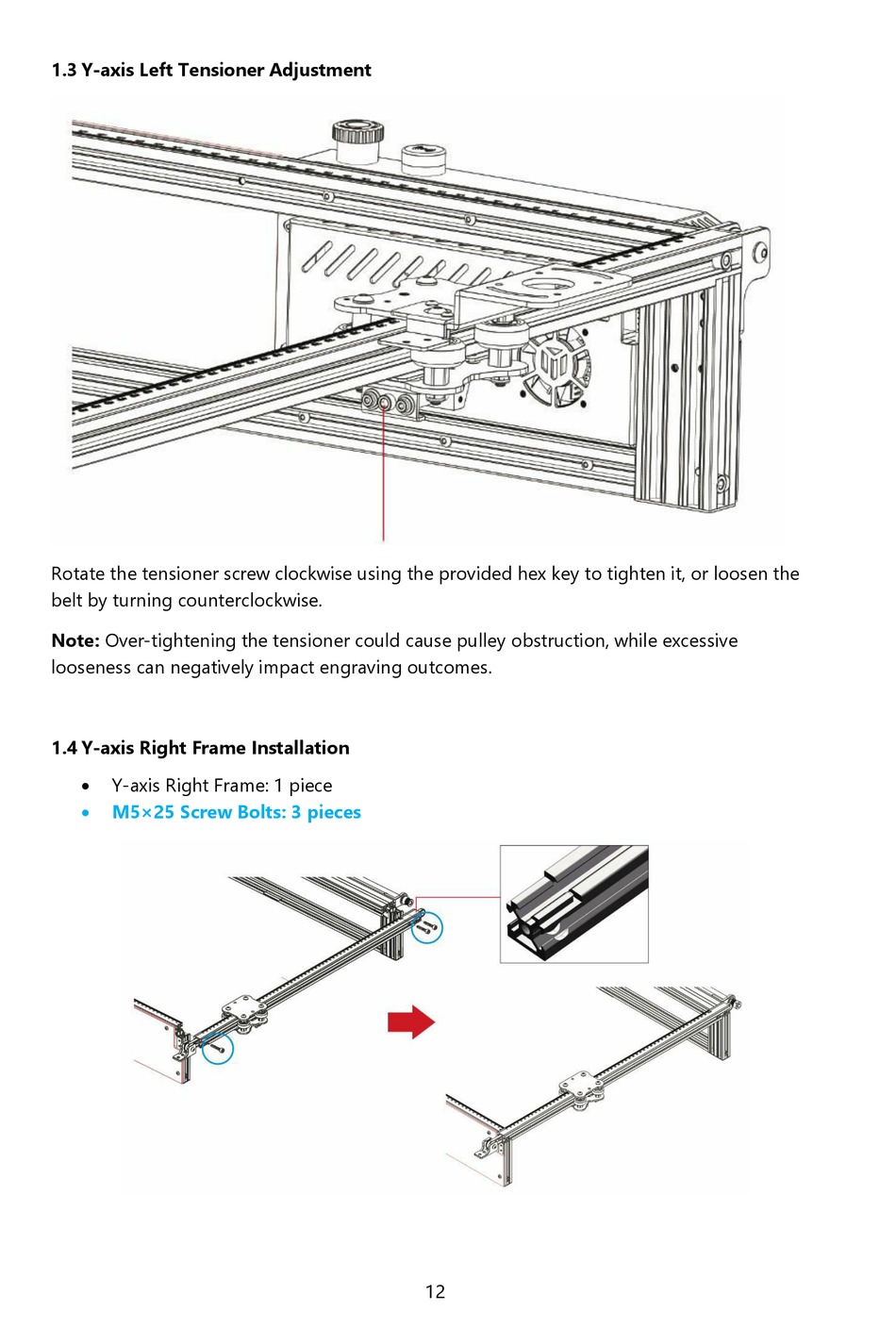

1.3 Y-axis Left Tensioner Adjustment
Rotate the tensioner screw clockwise using the provided hex key to tighten it, or loosen the
belt by turning counterclockwise.
Note: Over-tightening the tensioner could cause pulley obstruction, while excessive
looseness can negatively impact engraving outcomes.
1.4 Y-axis Right Frame Installation

Y-axis Right Frame: 1 piece

M5×25 Screw Bolts: 3 pieces
