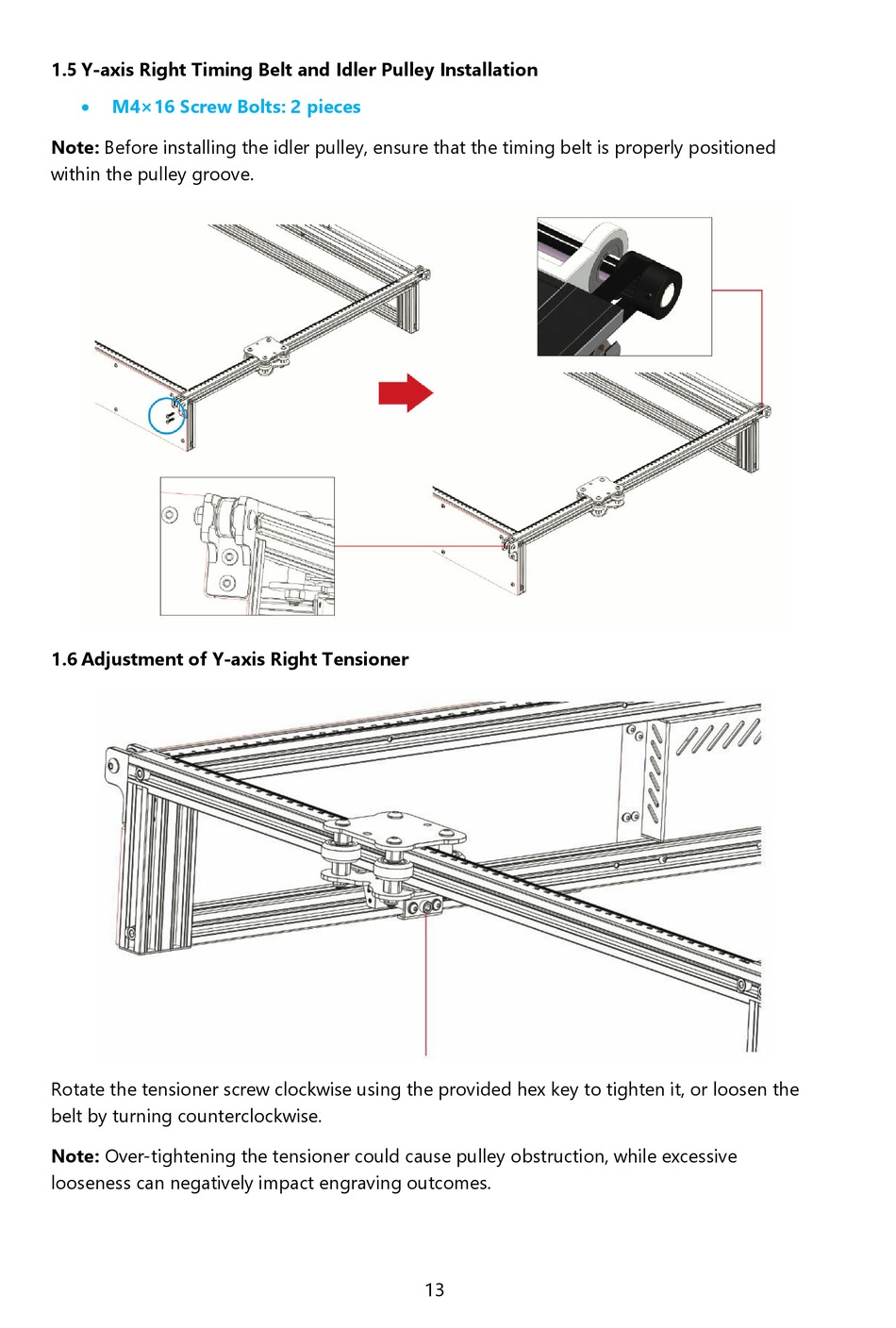

1.5 Y-axis Right Timing Belt and Idler Pulley Installation

M4×16 Screw Bolts: 2 pieces
Note: Before installing the idler pulley, ensure that the timing belt is properly positioned
within the pulley groove.
1.6 Adjustment of Y-axis Right Tensioner
Rotate the tensioner screw clockwise using the provided hex key to tighten it, or loosen the
belt by turning counterclockwise.
Note: Over-tightening the tensioner could cause pulley obstruction, while excessive
looseness can negatively impact engraving outcomes.
