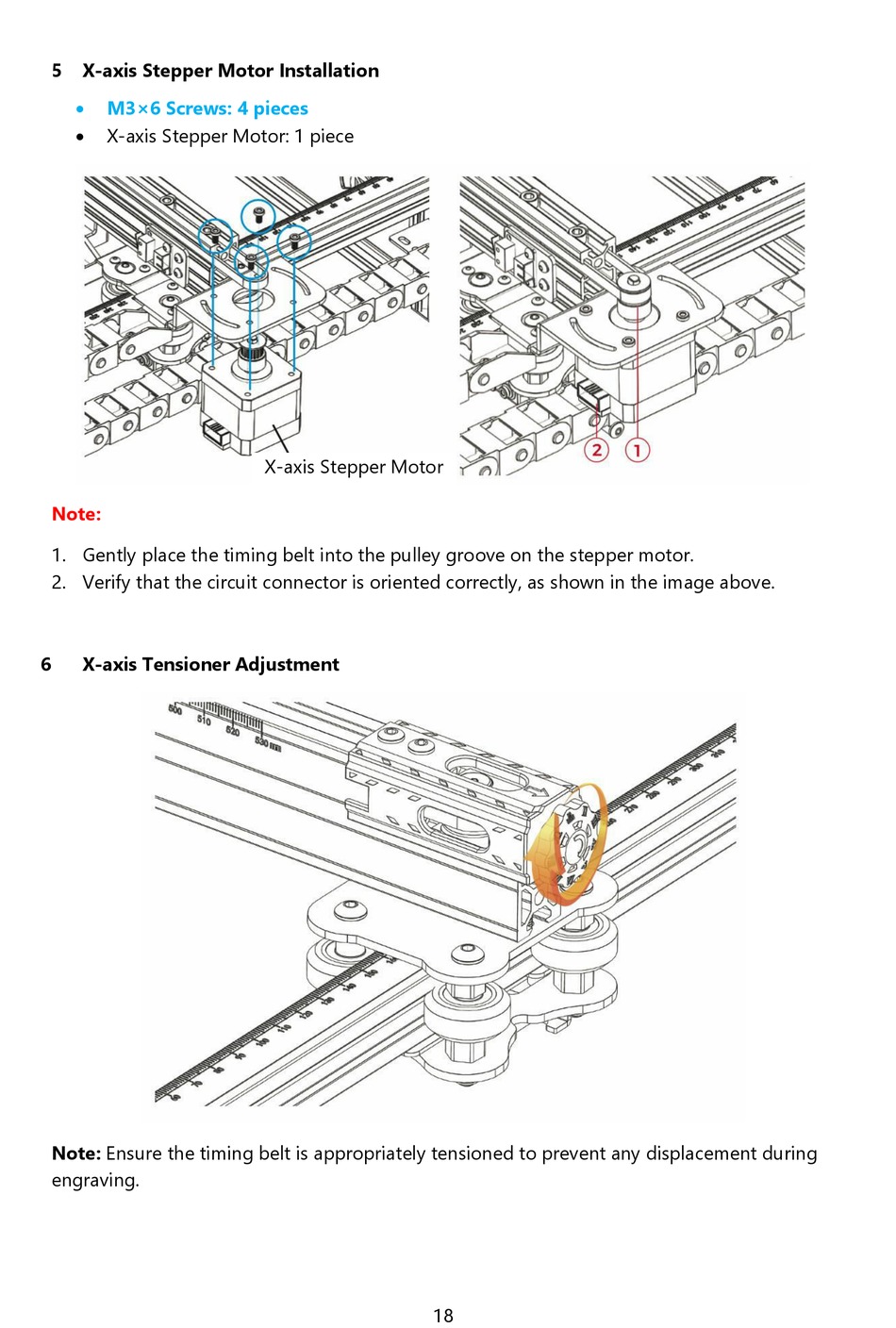

5 X-axis Stepper Motor Installation

M3×6 Screws: 4 pieces

X-axis Stepper Motor: 1 piece
Note:
1. Gently place the timing belt into the pulley groove on the stepper motor.
2. Verify that the circuit connector is oriented correctly, as shown in the image above.
6 X-axis Tensioner Adjustment
Note: Ensure the timing belt is appropriately tensioned to prevent any displacement during
engraving.
X-axis Stepper Motor
