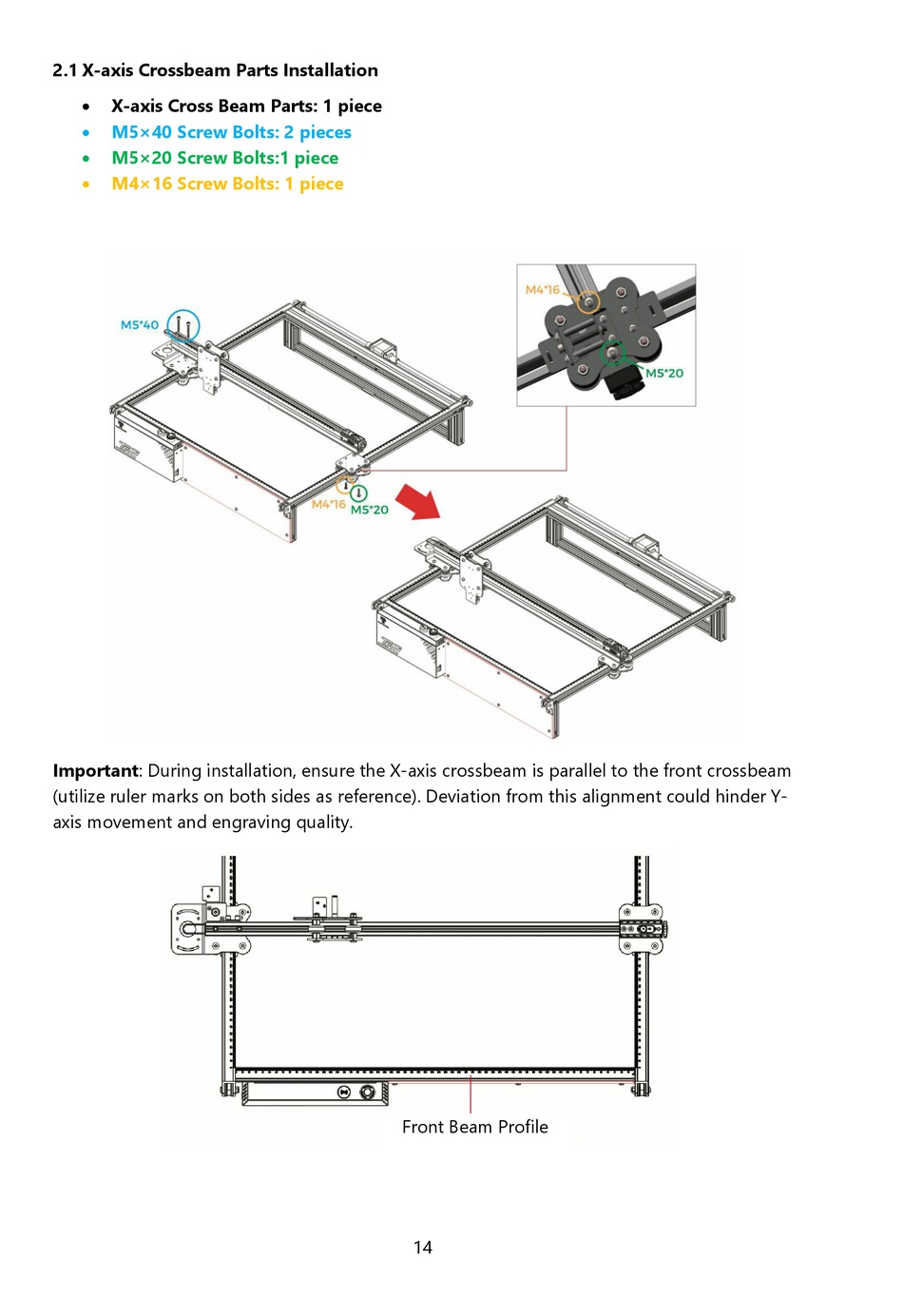

2.1 X-axis Crossbeam Parts Installation

X-axis Cross Beam Parts: 1 piece

M5×40 Screw Bolts: 2 pieces

M5×20 Screw Bolts:1 piece

M4×16 Screw Bolts: 1 piece
Important: During installation, ensure the X-axis crossbeam is parallel to the front crossbeam
(utilize ruler marks on both sides as reference). Deviation from this alignment could hinder Y-
axis movement and engraving quality.
Front Beam Profile
