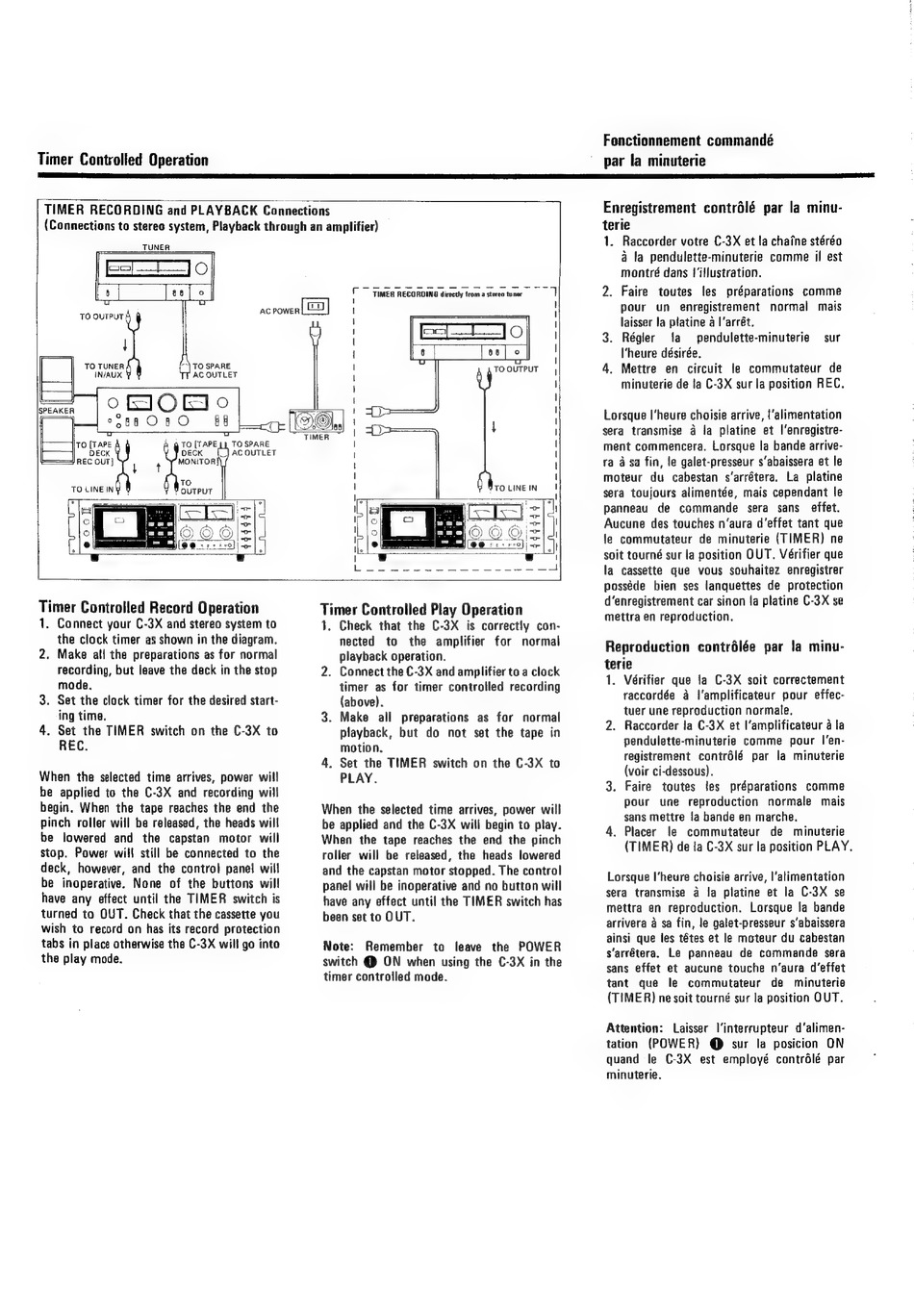

Timer Controlled Operation
TIMER RECORDING and PLAYBACK Connections
To ourPUT A
TO TUNER
a TO SPARE
IN/AUX
AC OUTLET
ain
AC POWER
(Connections to stereo system, Playback through an amplifier)
SPEAKER
ooo
ooe8O0O
#8
Lf On|
ii
TO [TAPE
TO [TAPE 4) TO SPARE
DECK
DECK
AC OUTLET
REC OUT]
MONITOR
42)
ot
TO
TOLINEINY
¥
8 OUTPUT
cy
(
ER
PTO LINE IN
Timer Controlled Record Operation
1. Connect your C-3X and stereo system to
the clock timer as shown in the diagram.
2. Make all the preparations as for normal
recording, but leave the deck in the stop
mode,
. Set the clock timer for the desired start-
ing time.
4. Set the TIMER switch on the C-3X to
REC.
w
When the selected time arrives, power will
be applied to the C-3X and recording will
begin. When the tape reaches the end the
pinch roller will be released, the heads wil!
be lowered
and
the capstan
motor will
stop. Power will still be connected to the
deck, however, and the control panel will
be inoperative. None of the buttons will
have any effect until the TIMER switch is
turned to OUT. Check that the cassette you
wish to record on has its record protection
tabs in place otherwise the C-3X will go into
the play mode.
Timer Controlled Play Operation
1. Check that the C-3X is correctly con-
nected
to
the amplifier
for normal
playback operation.
2. Connect the C-3X and amplifier to a clock
timer as for timer controlled recording
(above).
3. Make
all preparations as for normal
playback, but do not set the tape in
motion.
4. Set the TIMER switch on the C-3X to
PLAY.
When the selected time arrives, power will
be applied and the C-3X will begin to play.
When
the tape reaches the end the pinch
roller will be released, the heads lowered
and the capstan motor stopped. The control
panel will be inoperative and no button will
have any effect until the TIMER switch has
been set to OUT.
Note:
Remember
to
leave
the POWER
switch @ ON when using the C-3X in the
timer controlled mode.
Fonctionnement commandé
par la minuterie
Enregistrement contrélé par la minu-
terie
1. Raccorder votre C-3X et la chaine stéréo
a la pendulette-minuterie comme il est
montré dans | 'illustration.
2. Faire
toutes
les préparations
comme
pour
un
enregistrement
normal
mais
laisser la platine a l'arrét.
3. Régler
1a
pendulette-minuterie
sur
l'heure désirée.
4. Mettre
en circuit
le commutateur
de
minuterie de la C-3X sur la position REC.
Lorsque I'heure choisie arrive, l'alimentation
sera transmise
a la platine et l'enregistre-
ment commencera. Lorsque !a bande arrive-
ra a sa fin, le galet-presseur s'abaissera et le
moteur
du cabestan s'arrétera.
La platine
sera toujours alimentée, mais cependant le
panneau
de commande
sera
sans
effet.
Aucune des touches n'aura d'effet tant que
fe commutateur de minuterie (TIMER) ne
soit tourné sur la position OUT. Vérifier que
la cassette
que vous souhaitez enregistrer
posséde
bien ses lanquettes de protection
d'enregistrement car sinon la platine C-3X se
mettra en reproduction.
Reproduction contrélée par la minu-
terie
1. Vérifier que la C-3X soit correctement
raccordée
a |'amplificateur pour effec-
tuer une reproduction normale.
2. Raccorder la C-3X et l'amplificateur a la
pendulette-minuterie
comme
pour I'en-
registrement
contrdlé
par la minuterie
(voir ci-dessous).
3. Faire
toutes
les préparations
comme
pour
une
reproduction
normale
mais
sans mettre la bande en marche.
4. Placer
le commutateur
de
minuterie
(TIMER) de la C-3X sur la position PLAY.
Lorsque I'heure choisie arrive, |'alimentation
sera transmise
a la platine et la C-3X se
mettra en reproduction.
Lorsque fa bande
arrivera a sa fin, le galet-presseur s'abaissera
ainsi que les tétes et le moteur du cabestan
s'arrétera.
Le panneau
de commande
sera
sans effet et aucune touche n'aura d'effet
tant
que
le commutateur
de
minuterie
(TIMER) ne soit tourné sur la position OUT.
Attention:
Laisser l'interrupteur d'alimen-
tation
(POWER)
@ sur la posicion ON
quand
le C-3X est employé contrélé par
minuterie.
