MICRO-EPSILON eddyNCDT 3100-SM Betriebsanleitung Seite 24

Werbung

Installation und Montage

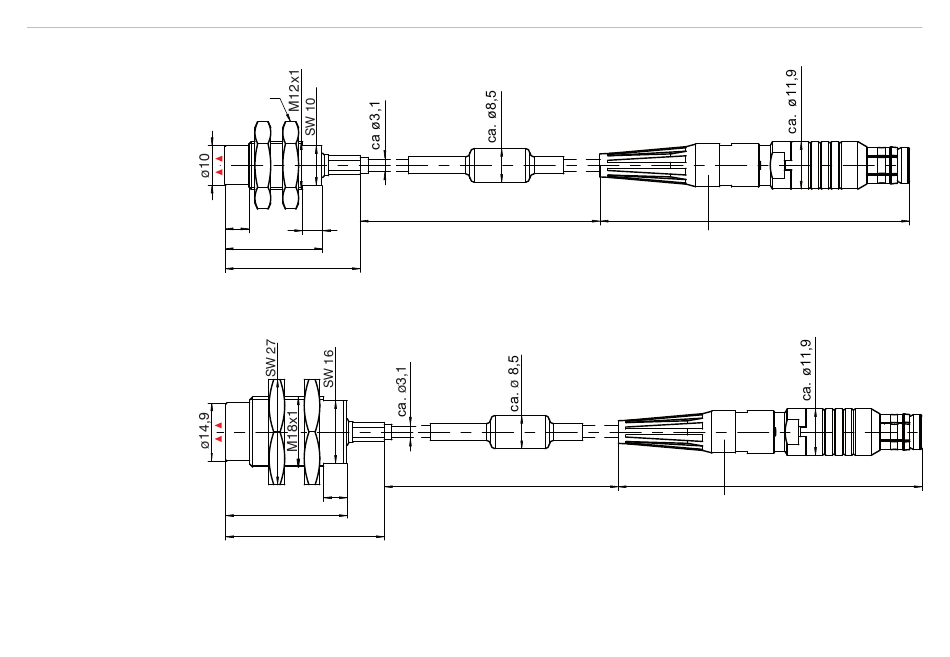

Abb. 17 Abmaße EPU3, Abmessungen in mm, nicht maßstabsgetreu
Abb. 18 Abmaße EPU6, Abmessungen in mm, nicht maßstabsgetreu
eddyNCDT 3100
SW 19
Kabellänge ca. 3.000
6
5
24,5
34
6
31,2
40,6
Kabellänge ca. 3.000
ca. 78
Push-Pull Rundsteckverbinder
ca. 78
Push-Pull Rundsteckverbinder
Seite 24
