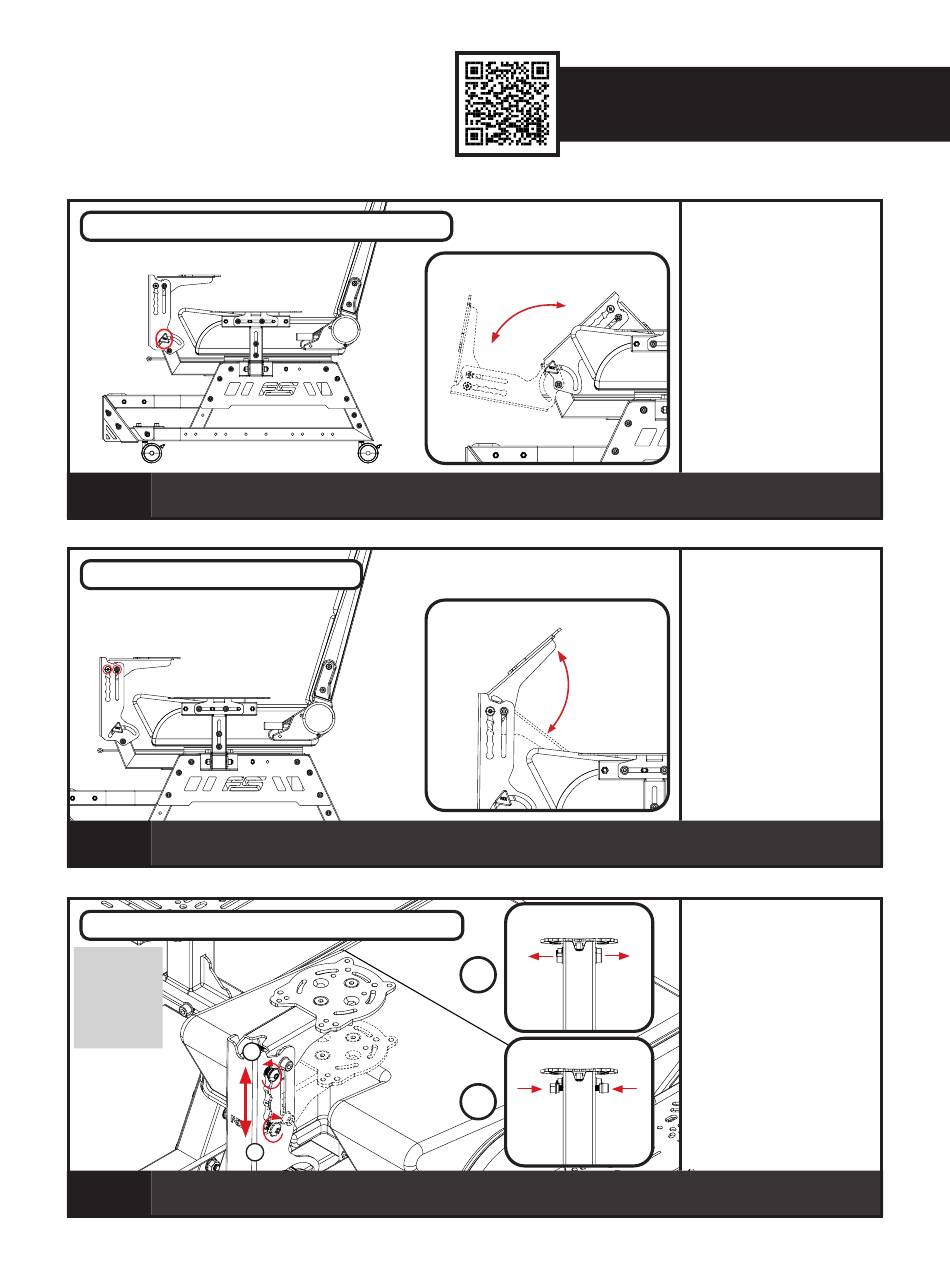

CENTRE POLE BRACKET ADJUSTMENT

A)
28
A) Loosen the Knobs securing the Centre Pole Bracket to the Centre Pole Mount.
B) Adjust to the desired angle and tighten the Knobs to secure.

HOTAS ANGLE ADJUSTMENT

A)
29
A) Loosen the Bolts securing the HOTAS Angle Bracket to the Centre Pole Bracket.
B) Adjust to the desired angle and tighten the Bolts to secure.

HOTAS BRACKET HEIGHT ADJUSTMENT

Note: Ensure the
shoulder on the
Shoulder Bolt is
properly secured
in the slot to
avoid slipping.
1
2
30
1) Loosen the Shoulder Bolt until the shoulder is exposed and free to move. Loosen the M8 Bolts to allow
movement. 2) Adjust to the desired height and tighten both the M8 Bolt and Shoulder Bolt to secure.
B)
B)
1
Front View
2
Front View
21
Video Instruction: bit.ly/nlrbuild
PARTS:
• • NIL
PARTS:
• • NIL
PARTS:
• • NIL
