Next Level Racing FLIGHT SEAT PRO Montageanleitung Seite 16

support@nextlevelracing.com
A)
13

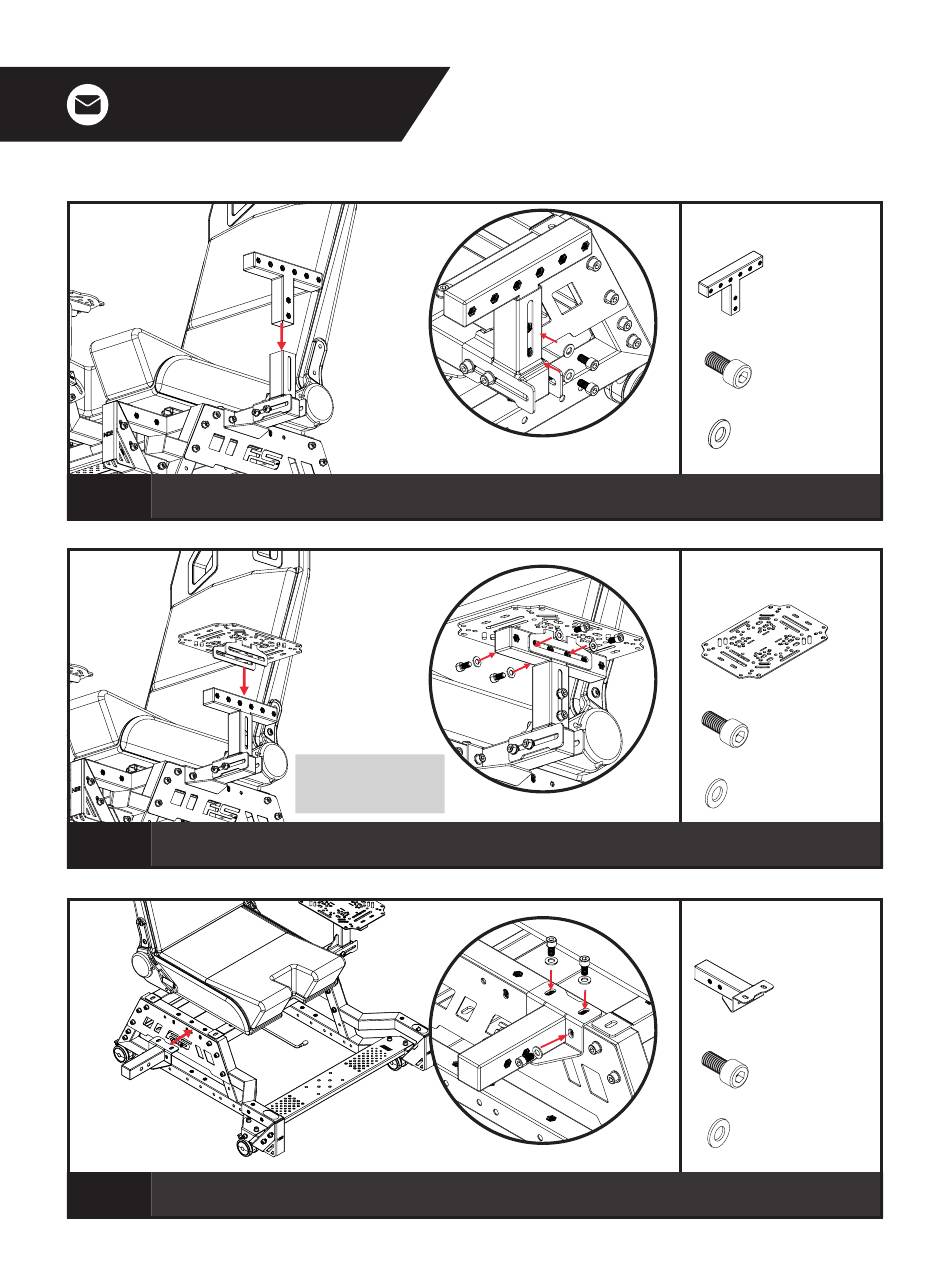

A) Align the threaded inserts on the Telescopic Inner Arm with the mounting slot on the Telescoping Outer Arm.
B) Bolt through and secure with 2 x M8 Bolts and Washers.
A)
14
A) Align the mounting slots on the Flight Plate with the threaded inserts on the Telescoping Inner Arm.
B) Bolt through and secure with 4 x M8 Bolts and Washers.
A)
15
A) Align the mounting holes on the Flight Arm with the threaded inserts on the Frame Member.
B) Bolt through and secure with 4 x M8 Bolts and Washers.
B)
B)
Tip: Install the Flight Plate
on the opposite side of your
mouse location.
B)
16
PARTS:
• • 1 x Telescoping Inner Arm
• • 2 x M8 16mm Sockethead Bolts
• • 2 x M8 Washers
PARTS:
• • 1 x Flight Plate
• • 4 x M8 16mm Sockethead Bolts
• • 4 x M8 Washers
PARTS:
• • 1 x Flight Arm
• • 4 x M8 16mm Sockethead Bolts
• • 4 x M8 Washers
