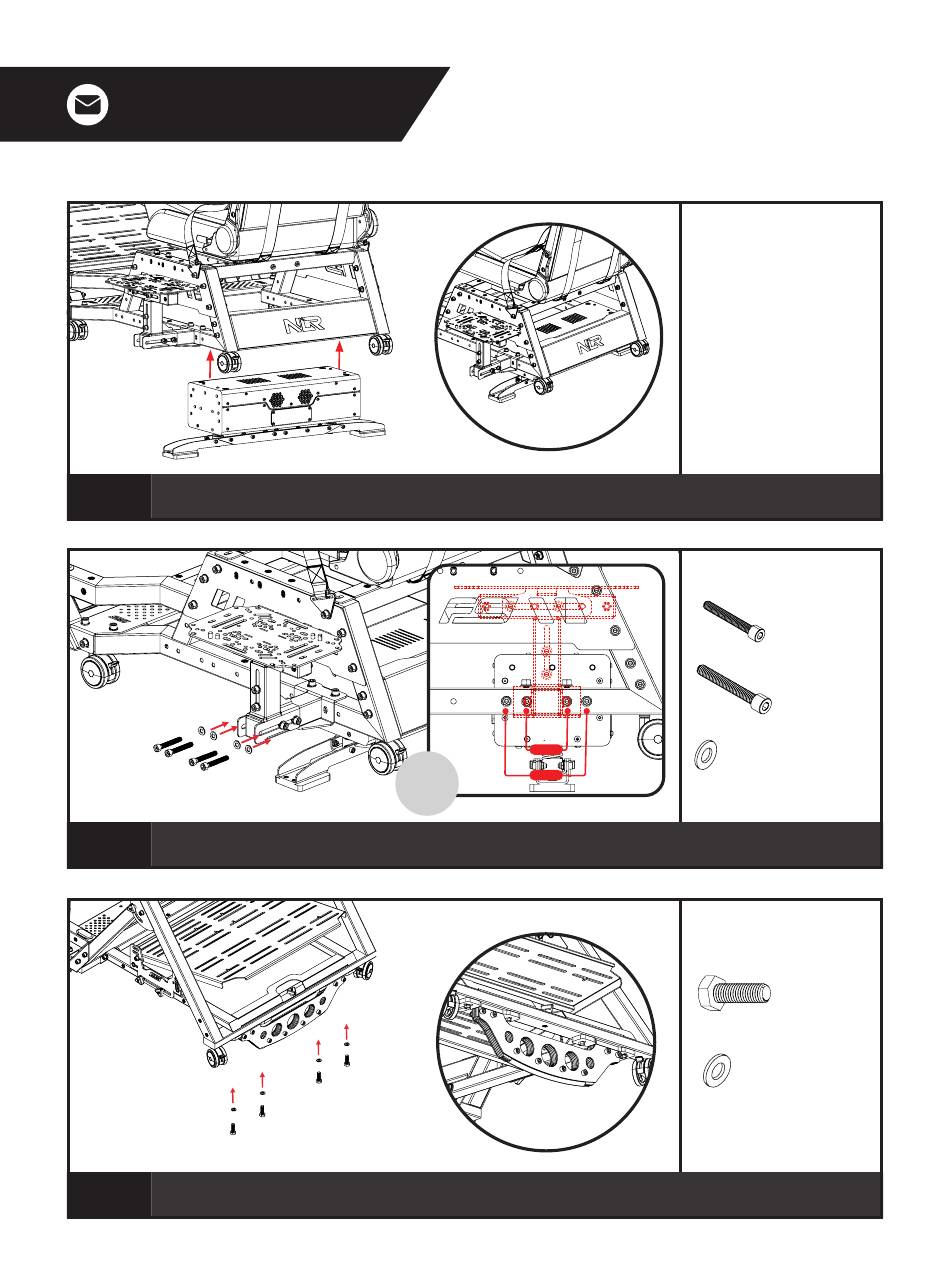

Align the threaded inserts on the Motion Plus Platform with the mounting holes on the Frames.
46
Bolt through and secure with 4 x M8 Bolts and Washers. Repeat on the other side.
47
Align the mounting holes on the Pivot Bar Assembly with the threaded inserts on the Flight Stand Pro.
Bolt through and Secure with 4 x M8 Bolts and Washers.
M8 60mm
Repeat
M8 55mm
on Other
Side
Side View
28
PARTS:
• • NIL
PARTS:
• • 2 x M8 55mm Sockethead Bolts
• • 2 x M8 60mm Sockethead Bolts
• • 4 x M8 Washers
PARTS:
• • 4 x M8 25mm Hex Head Bolts
(included in the Motion Plus
Platform kit of parts)
• • 4 x M8 Washers (included in the
Motion Plus Platform kit of parts)
