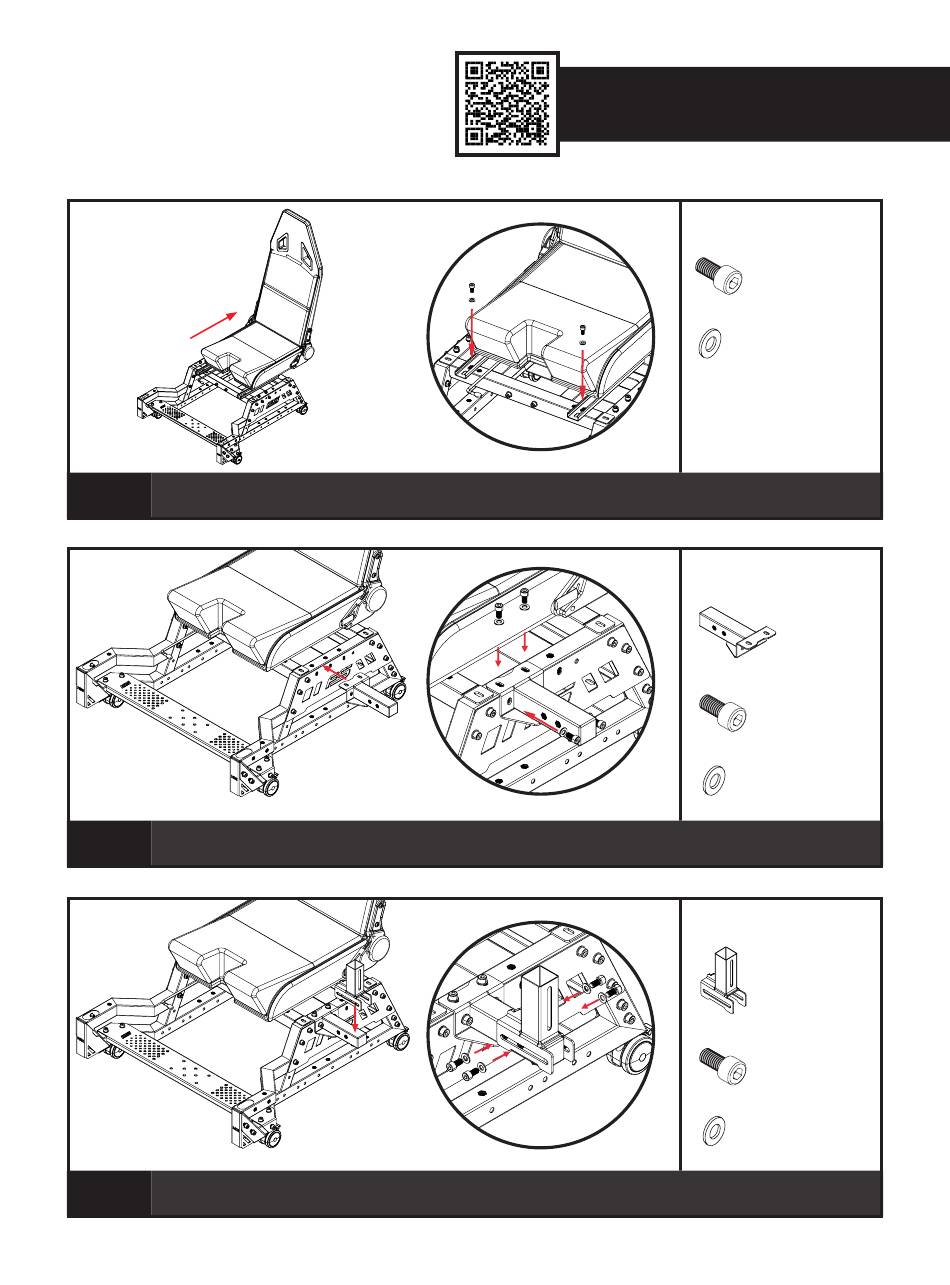

A) Slide the Flight Seat all the way back to access the front mounting holes on the Seat Sliders.
B) Bolt through and secure with 2 x M8 Bolts and Washers.
A)
11
A) Align the mounting holes on the Flight Arm with the threaded inserts on the Frame Member.
B) Bolt through and secure with 4 x M8 Bolts and Washers.
A)
12
A) Align the mounting slots on the Telescoping Outer Arm with the threaded inserts on the Flight Arm.
B) Bolt through and secure with 4 x M8 Bolts and Washers.
Video Instruction: bit.ly/nlrbuild
B)
B)
B)
15
PARTS:
• • 2 x M8 16mm Sockethead Bolts
• • 2 x M8 Washers
PARTS:
• • 1 x Flight Arm
• • 4 x M8 16mm Sockethead Bolts
• • 4 x M8 Washers
PARTS:
• • 1 x Telescoping Outer Arm
• • 4 x M8 16mm Sockethead Bolts
• • 4 x M8 Washers
