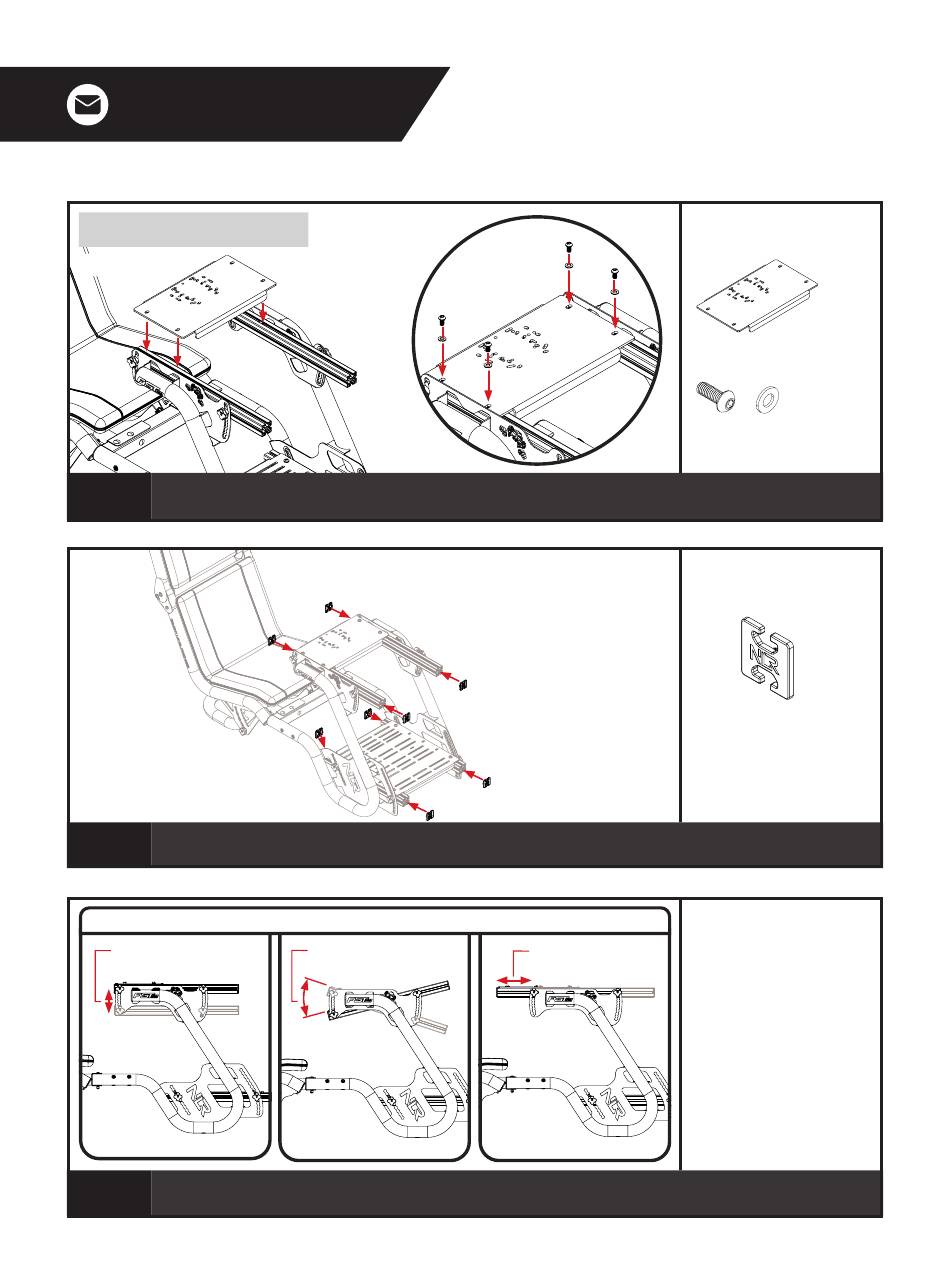

Tip: Use Allen Key to help push T-Nuts into
correct locations.
A)
10
A) Align Wheel Plate to top of Wheel Plate Extrusions.
B) Bolt through into T-Nuts of Wheel Plate Extrusions to secure in place.
11
Press End Caps into exposed ends of Extrusions to avoid sharp edges.
96 mm
12
Loosen the Shoulder Bolts and change the Wheel Plate Assembly to your desired Height, Position and
Angle. Retighten the Shoulder Knob to lock in place.
B)

WHEEL ADJUSTMENT

32.5 ° 150 mm
12
PARTS:
• • 1 x Wheel Plate
• • 4 x M8 16mm Button Head Bolts
• • 4 x M8 Washers
PARTS:
• • 8 x End Caps (40 x 40)
PARTS:
• • NIL
