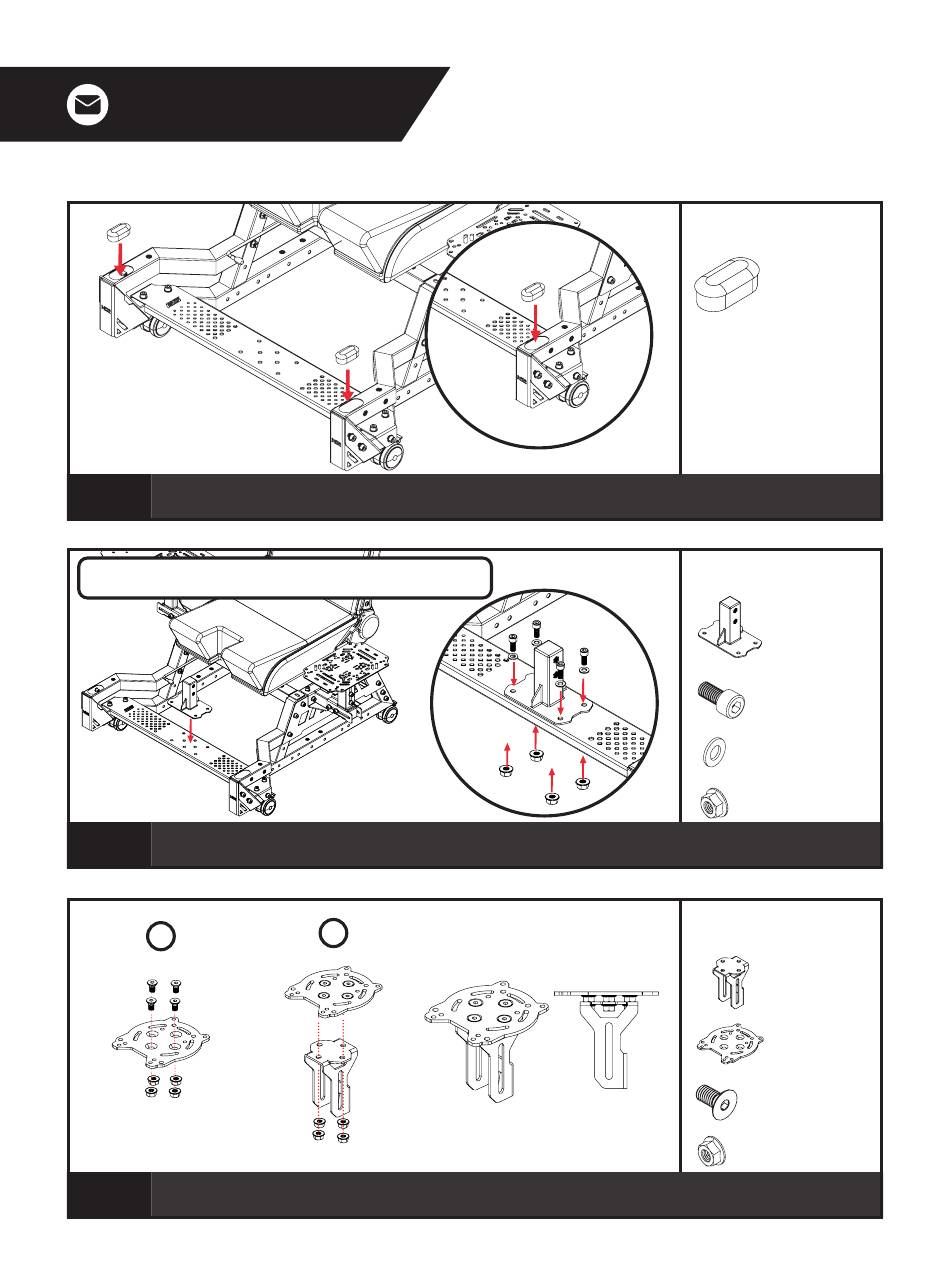

Align the Plastic Caps with the Bolt cut-outs on the Frame Members and press them on to fit.

EXTENDED HOTAS MOUNT INSTALLATION

(RECOMMENDED FOR EXTENDED HOTAS STICKS)
A)
20
A) Align the mounting holes on the HOTAS Extension Mount with the mounting holes on the Safety Step.
B) Bolt through and secure with 4 x M8 Bolts, Washers and Flange Nuts.
1
21
1) Bolt through the HOTAS Plate and secure with 4 x M8 Bolts and Flange Nuts 2) Align the HOTAS Plate Assembly
with the mounting holes on the HOTAS Extension Adjustment Bracket and secure with 4 x M8 Flange Nuts.
B)
2
ISO View
18
PARTS:
• • 2 x Plastic Caps
PARTS:
• • 1 x HOTAS Extension Mount
• • 4 x M8 20mm Sockethead Bolts
• • 4 x M8 Washers
• • 4 x M8 Flange Nuts
PARTS:
• • 1 x HOTAS Extension Adjustment
Bracket
• • 1 x HOTAS Plate
• • 4 x M8 25mm Countersunk Bolts
Side View
• • 8 x M8 Flange Nuts
