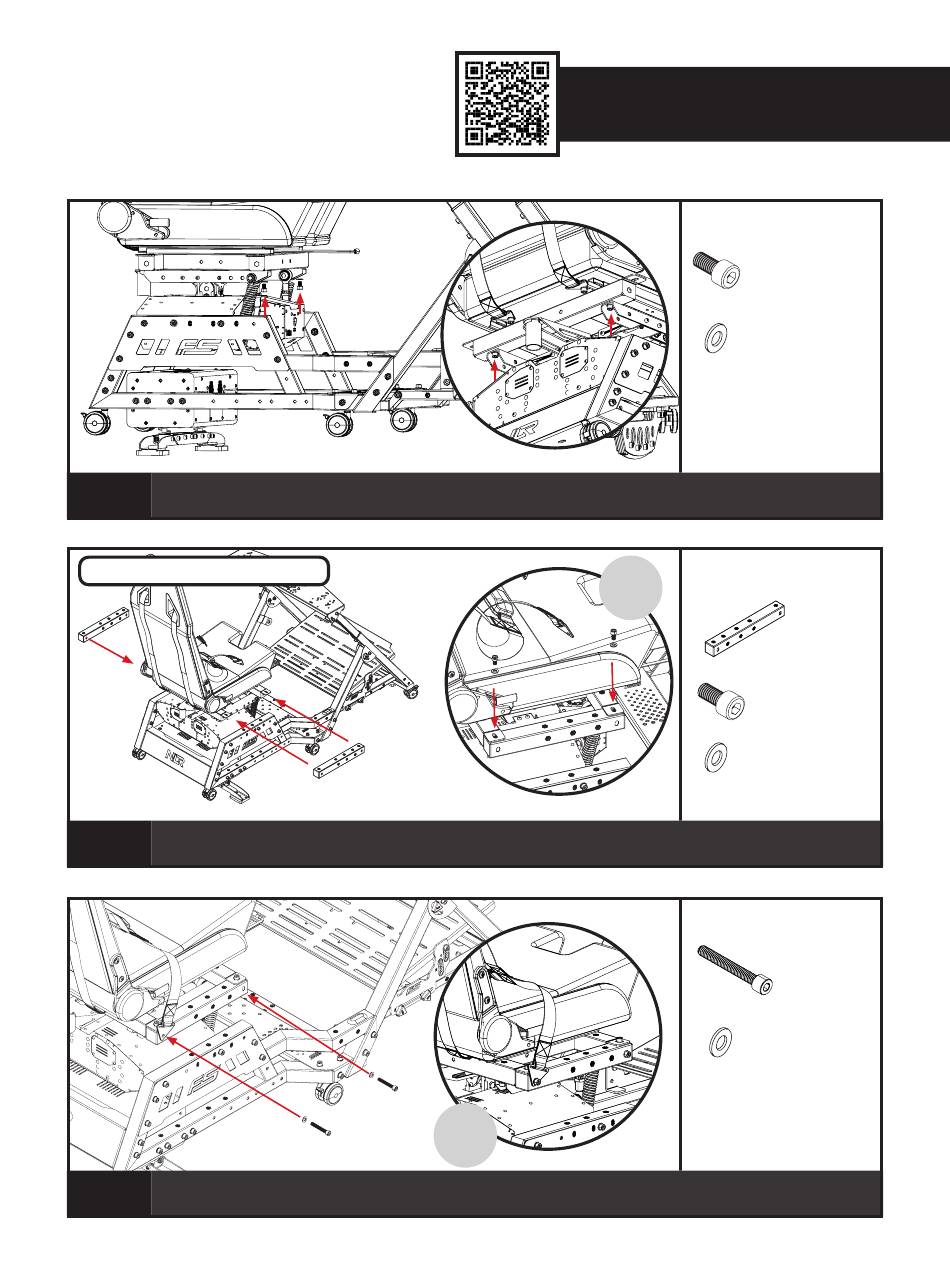

A) Bolt through the front mounting holes of the Motion V3 platform and secure with 2 x M8 Bolts and Washers.
B) Bolt through the rear mounting holes of the Motion V3 platform and secure with 2 x M8 Bolts and Washers.

SEAT BELT INSTALLATION

A)
54
A) Align the threaded inserts on the Motion V3 Mounting Arm with the mounting holes on the H Frame.
B) Bolt through and secure with 2 x M8 Bolts and Washers. Repeat on the other side.
55
Align the Seat Belt Mounting Plate with the rear mounting hole on the Motion V3 Mounting Arm. Bolt through the
Seat Mounting Plate at the rear and secure with 2 x M8 Bolts and Washers. Repeat on the other side.
Video Instruction: bit.ly/nlrbuild
B)
on Other
B)
Repeat
on Other
Side
31
PARTS:
• • 4 x M8 16mm Sockethead Bolts
• • 4 x M8 Washers
PARTS:
Repeat
• • 2 x Motion V3 Mounting Arm
Side
• • 4 x M8 16mm Sockethead Bolts
• • 4 x M8 Washers
PARTS:
• • 4 x M8 55mm Sockethead Bolts
• • 4 x M8 Washers
