Hotas Extension Mount Adjustment; Hotas Mount Installation - Next Level Racing FLIGHT SEAT PRO Montageanleitung

22

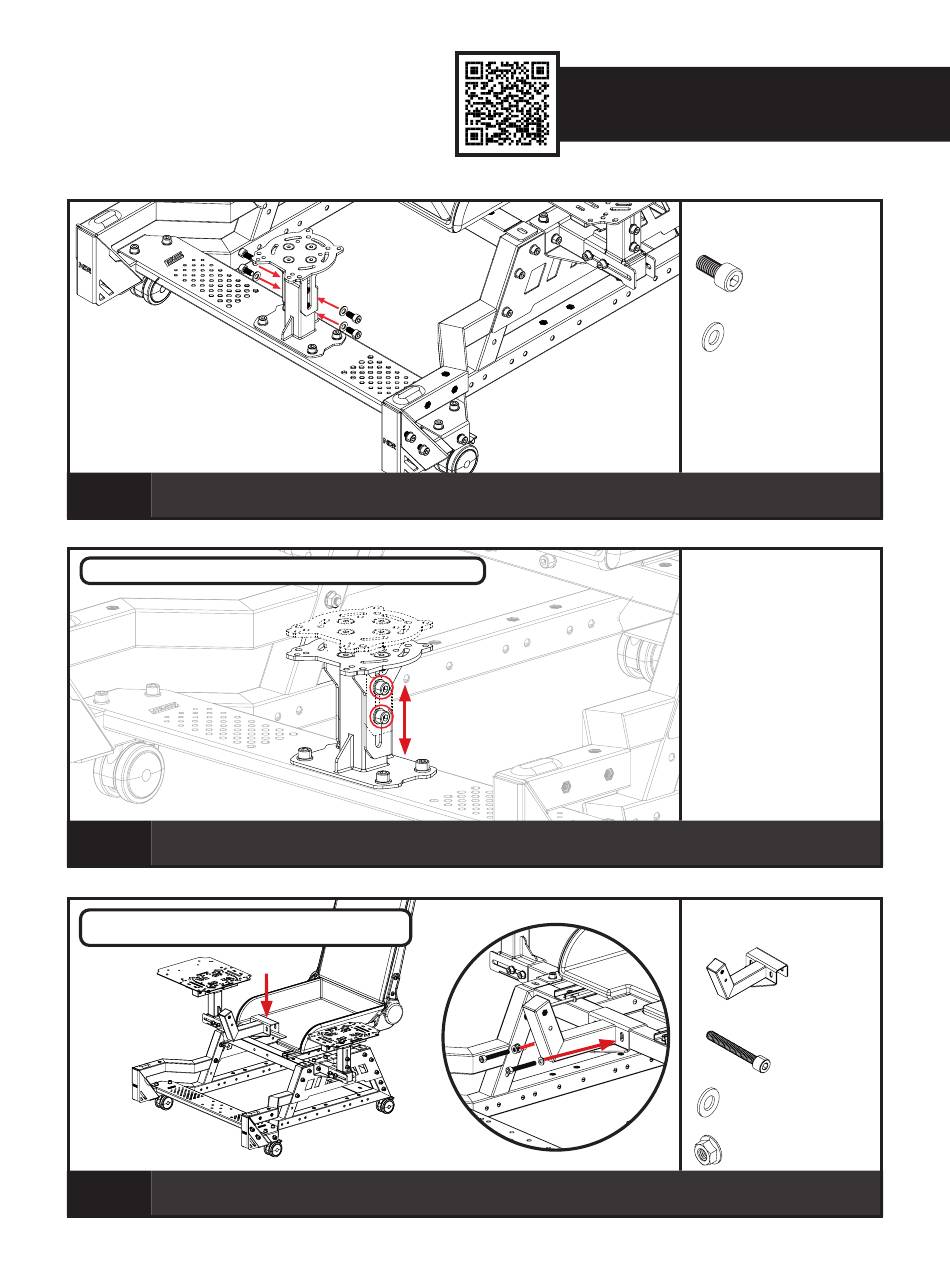

Align the mounting slots on the HOTAS Extension Adjustment Bracket assembly with the threaded
inserts on the HOTAS Extension Mount. Bolt through and secure with 4 x M8 Bolts and Washers.

HOTAS EXTENSION MOUNT ADJUSTMENT

23
Loosen the Bolts securing the HOTAS Plate assembly to the HOTAS Extension Mount. Adjust to the
desired height and tighten to secure.

HOTAS MOUNT INSTALLATION

(RECOMMENDED FOR REGULAR HOTAS STICKS)
A)
24
A) Uninstall the Seat Bottom Cushion. Align the mounting holes on the Centre Pole Mount with the mounting holes on the H-Frame.
B) Bolt through and secure with 2 x M8 Bolts, Washers and Flange Nuts.
Video Instruction: bit.ly/nlrbuild
B)
19
PARTS:
• • 4 x M8 16mm Sockethead Bolts
• • 4 x M8 Washers
PARTS:
• • NIL
PARTS:
• • 1 x Centre Pole Mount
• • 2 x M8 60mm Sockethead Bolts
• • 2 x M8 Washers
• • 2 x M8 Flange Nuts
