General Assembly - Next Level Racing FLIGHT SEAT PRO Montageanleitung

support@nextlevelracing.com
A)

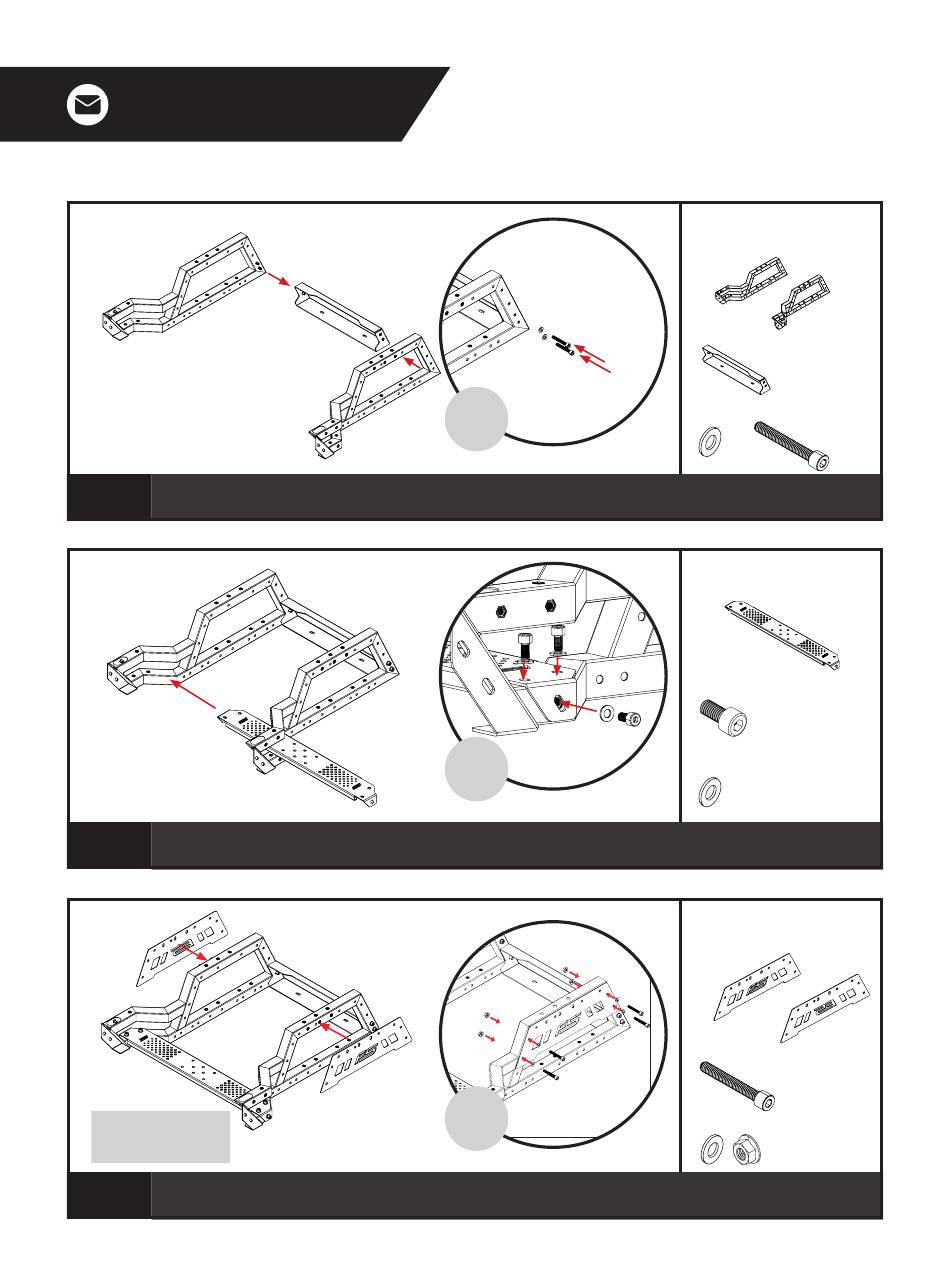

01 A) Align the Left and Right Frame Members with the threaded inserts on the End Panel.
B) Bolt through and secure with 2 x M8 Bolts and Washers. Repeat on the other side.
A)
02
A) Align the mounting holes on the Safety Step with the threaded inserts on the Left and Right Frame Member.
B) Bolt through and secure with 3 x M8 Bolts and Washers. Repeat on the other side.
A)
Tip : Leave Bolts loosely
secured to allow installation
of extra Bolts in future steps.
03
A) Align the Left and Right Side Panels with the mounting holes on the Frame Members.
B) Bolt through and secure with 4 x M8 Bolts, Washers and Flange Nuts. Repeat on the other side.
B)
Repeat
on Other
Side
B)
Repeat
on Other
Side
B)
Repeat
on Other
Side
12
PARTS:
• • 1 x Left Frame Member
• • 1 x Right Frame Member
(LEFT)
(RIGHT)
• • 1 x End Panel
• • 4 x M8 55mm Sockethead Bolts
• • 4 x M8 Washers
PARTS:
• • 1 x Safety Step
• • 6 x M8 16mm Sockethead Bolts
• • 6 x M8 Washers
PARTS:
• • 1 x Left Side Panel
• • 1 x Right Side Panel
(LEFT)
(RIGHT)
• • 8 x M8 55mm Sockethead Bolts
• • 8 x M8 Washers
• • 8 x M8 Flange Nuts
