A)
04

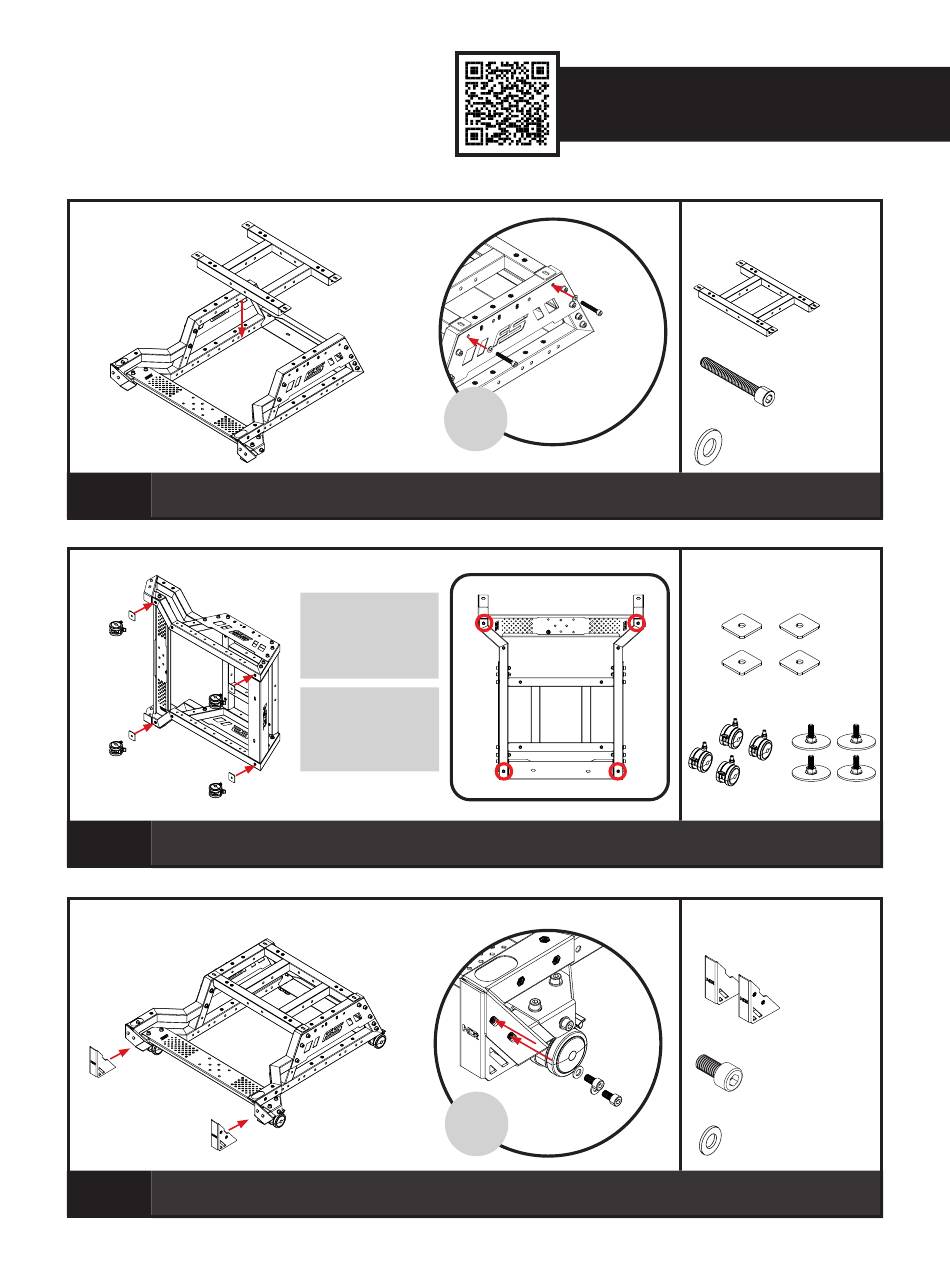

A) Align the threaded inserts on the H Frame with the mounting holes on the Frame Members.
B) Bolt through and secure with 2 x M8 Bolts and Washers. Repeat on the other side.
05
Align the Castor Wheels and Square Washers with the threaded inserts on the Frame Members.
Fasten and secure using the 14mm Wrench.
A)
06
A) Align the Steel Safety Caps with the mounting holes on the Frame Members.
B) Bolt through the mounting holes and secure with 2 x M8 Bolts and Washers. Repeat on the other side.
B)
Repeat
on Other
Side
RECOMMENDED MOUNTING POINTS
Note: If setting up the Flight
Seat on uneven floors we
recommend installing the
Height Adjustable Feet to
stabilise the cockpit.
Warning: Square Washers
should always be used when
installing Castor Wheels
to prevent damage to the
Frame Members.
B)
Repeat
on Other
Side
13
Video Instruction: bit.ly/nlrbuild
PARTS:
• • 1 x H Frame
• • 4 x M8 55mm Sockethead Bolts
• • 4 x M8 Washers
PARTS:
• • 4 x M8 Square Washers
• • 4 x Castor Wheels/ Height
Adjustable Feet
BOTTOM VIEW
PARTS:
• • 1 x Left Safety Steel Cap
• • 1 x Right Safety Steel Cap
• • 4 x M8 16mm Sockethead Bolts
• • 4 x M8 Washers
OR
