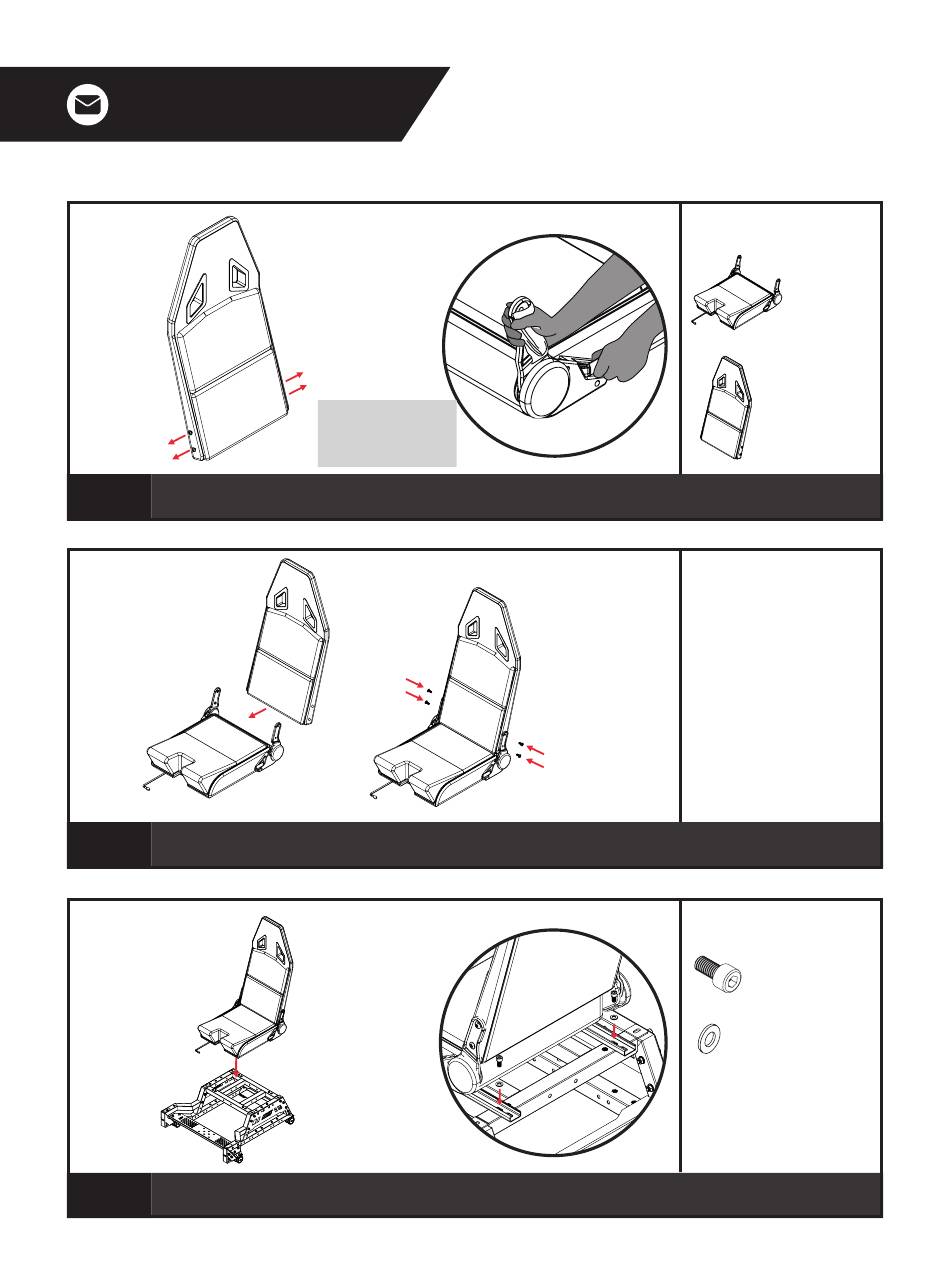

A)
07
A) Uninstall the pre-installed Bolts on the Seat Backrest.
B) Adjust the Seat Recliners on the Seat Bottom to an upright position.
A)
08
A) Align the Seat Backrest threaded inserts with mounting holes on the Seat Recliners.
B) Bolt through and secure with the Bolts previously uninstalled in Step 07a.
A)
09
A) Slide the seat forward. Align the second last Seat Slider mounting holes with the outer threaded inserts on the H Frame.
B) Bolt through and secure with 2 x M8 Bolts and Washers.
B)
WARNING: Ensure you are
firmly holding the Recliner
before lifting the adjustment
lever to avoid injury.
B)
B)
14
PARTS:
• • 1 x Seat Bottom
• • 1 x Seat Backrest
PARTS:
• • Use Pre-installed Hardware
PARTS:
• • 2 x M8 16mm Sockethead Bolts
• • 2 x M8 Washers
