Next Level Racing VICTORY Bedienungsanleitung Seite 12

support@nextlevelracing.com
A)
13

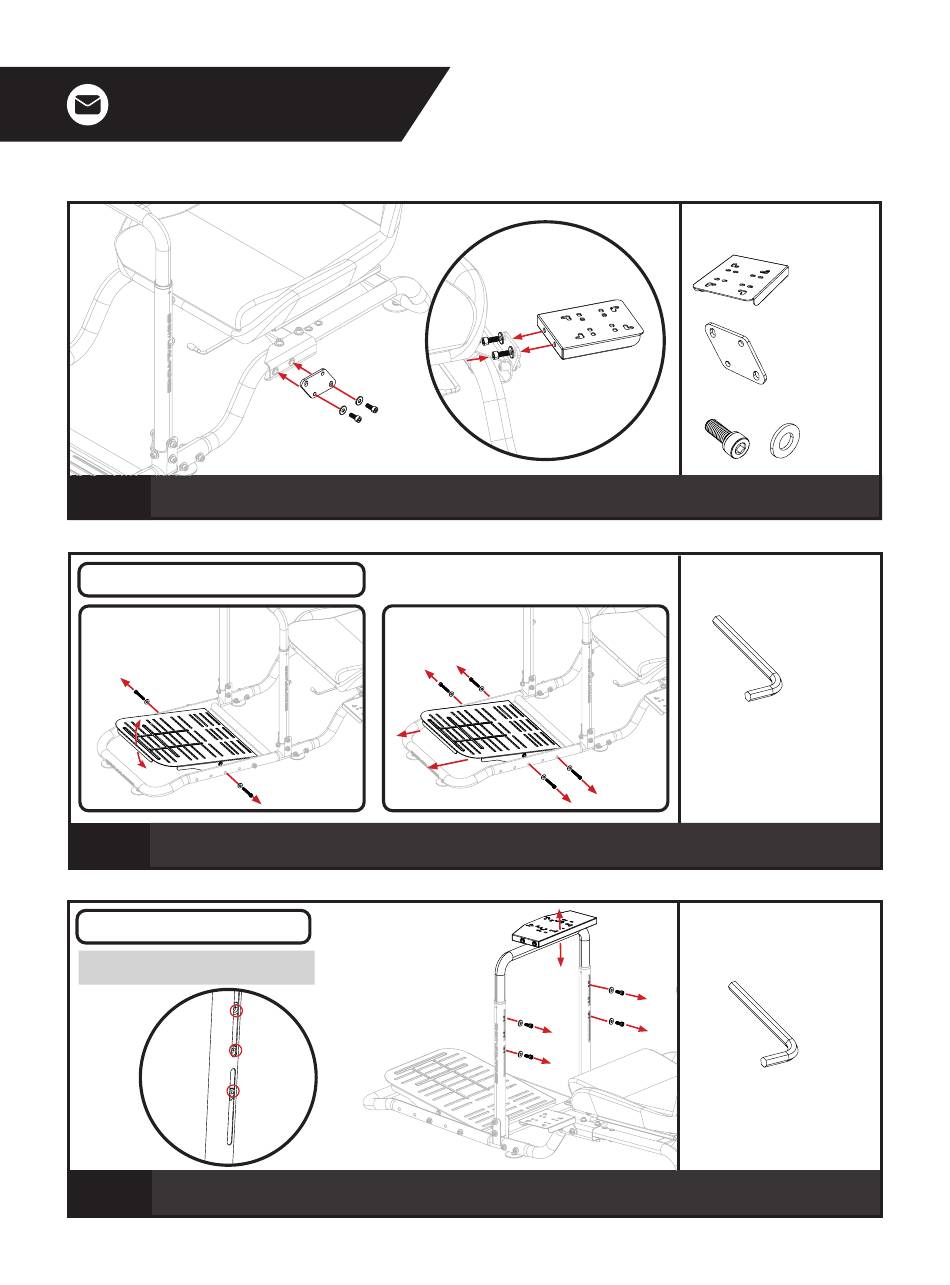

A) Mount Shifter Plate Bracket to Seat Frame using M8 20mm Socket Head Bolts and Washers.
B) Mount Shifter Plate to Support Bracket using M8 20mm Socket Head Bolts and Washers.
PEDAL PLATE ADJUSTMENT
A)
14
A) Adjust Pedal Plate angle by removing above Bolts, tilt plate to adjust angle. Replace Bolts.
B) Adjust Pedal Plate position by removing above Bolts, move plate to new position. Replace Bolts.
HEIGHT ADJUSTMENT
WARNING: Recommend to perform height adjustments
with two people to avoid injury or damage.
15
Loosen Bolts for minor adjustments using 6mm Allen key. For larger adjustments move Bolts to one of
the other Bolt positions (circled).
B)
B)
12
PARTS:
• • 1 x Shifter Plate
• • 1 x Shifter Plate Bracket
• • 4 x 20mm Socket Head Bolts
• • 4 x M8 Washers
TOOLS NEEDED
• • 6mm Allen Key
TOOLS NEEDED:
• • 6mm Allen Key
